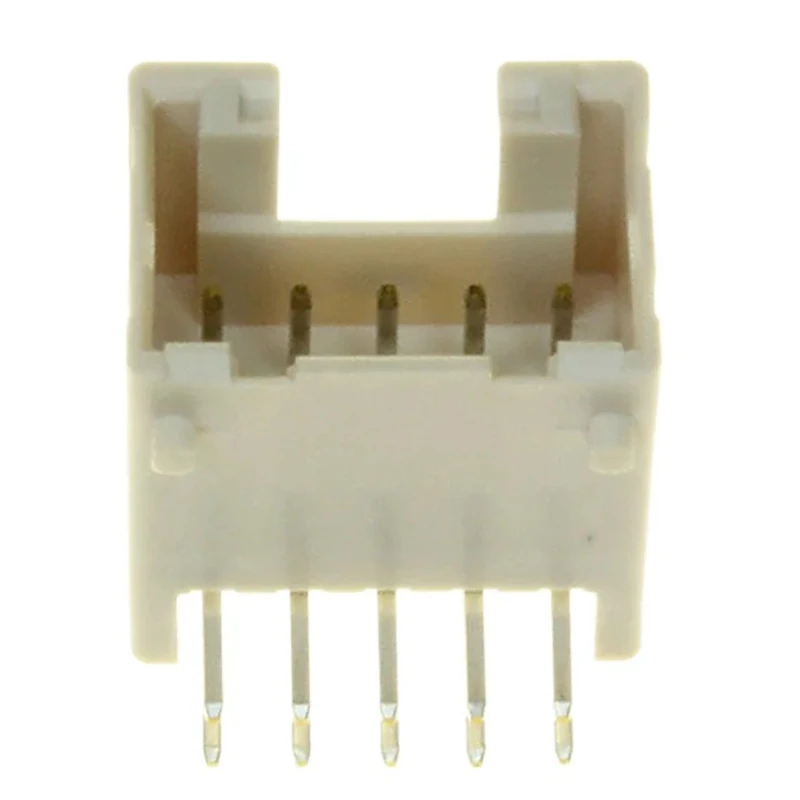

JST PUD Series Right Angle Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 2 Row, Shrouded S10B-PUDSS-1(LF)(SN)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 3A |
| Model | S10B-PUDSS-1(LF)(SN) |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | PUD |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a durable copper alloy contact material with tin plating.
- Supports up to 3A current at 250V maximum voltage.
- Shrouded connector with right angle orientation for secure mating.
- Through hole mount type suitable for PCB assembly.
- Operates reliably from -25°C to 85°C temperature range.
- Low insertion force with locking mechanism producing audible click.
- Designed for high density and stable contact performance in vibration environments.
- Provides 2 mm row pitch to ensure compactness.
Product Description
The JST S10B-PUDSS-1(LF)(SN) is a high-quality Right Angle Through Hole PCB Header from the PUD Series, featuring 10 contacts arranged in 2 rows with a 2 mm pitch. This shrouded connector is engineered for wire-to-board applications that demand reliable performance under severe vibration and mechanical stress conditions.
Constructed with copper alloy contacts that are tin-plated for corrosion resistance, it supports a rated current of 3A and a maximum operating voltage of 250V. Its mating interface provides a secure locking mechanism that produces an audible click upon connection, ensuring precise engagement and mechanical stability.
The connector is designed with a right angle orientation and through hole mounting style, making it suitable for versatile PCB assembly configurations. It offers a temperature operating range from -25°C to 85°C, making it suitable for a broad range of electronic industrial, commercial, and laboratory applications.
Its compact double row design enables efficient use of PCB space while maintaining high contact density. The solder termination type and male contact gender facilitate standard assembly and wiring techniques in manufacturing environments.
Features a durable copper alloy contact material with tin plating. Supports up to 3A current at 250V maximum voltage. Shrouded connector with right angle orientation for secure mating. Through hole mount type for robust PCB attachment.
Operating temperature range from -25°C to 85°C. Low insertion force with locking mechanism for stable contact. Compact 2 mm pitch and 2 row design. Male contact gender with solder termination. Manufactured in Japan ensuring excellent quality.
The JST PUD Series PCB Headers are ideal for demanding electronics, industrial automation, and communication equipment applications requiring secure and reliable connections. Their design ensures long-term durability and performance in challenging operating conditions.
Explore a wide range of PCB Headers and electronic connectors at EnvMart to find the perfect fit for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 3A and a maximum operating voltage of 250V.
The operating temperature range is from -25°C to 85°C.
This model features 10 contacts arranged in 2 rows.
It utilizes a through hole mounting type, suitable for robust PCB attachment.
The pitch size is 2 mm, allowing for compact PCB designs.
This connector is shrouded, providing additional protection and secure mating.
The contacts are made from copper alloy and are tin-plated for corrosion resistance.
It features a solder termination type, facilitating standard assembly techniques.
It has a right angle orientation, which is advantageous for space-constrained applications.
It is designed for wire-to-board applications, particularly in electronics, industrial automation, and communication equipment.
The contact gender is male, suitable for standard wiring configurations.
It is manufactured in Japan, ensuring high quality standards.
