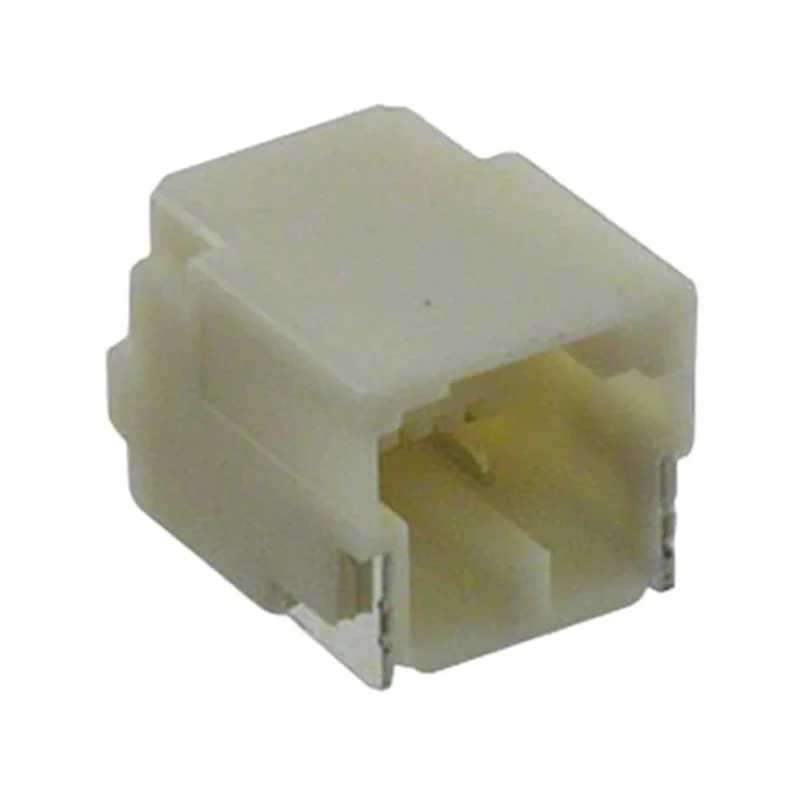

JST NSH Series Right Angle Surface PCB Header, 2 Contacts, 1 mm Pitch, 1 Row, Shrouded SM02B-NSHSS-TB(LF)(SN)

JST SM02B-NSHSS-TB(LF)(SN) is a right angle surface mount PCB header from the NSH Series, featuring 2 contacts arranged in a single row with a 1 mm pitch. This shrouded header is engineered for wire-to-board connections, optimizing PCB real estate through its compact and low profile design. It is suitable for use in various electronic modules and assemblies requiring dependable connections.

The header utilizes copper alloy contacts finished with tin plating to ensure excellent conductivity and corrosion resistance. The solder termination type guarantees secure and durable attachment to the PCB. Designed to operate within a temperature range of -25°C to 85°C, it provides reliable performance under typical industrial and commercial operating conditions.

The NSH series connectors include a latch locking mechanism that produces an audible click when mated with the corresponding socket, ensuring secure engagement. Its right angle orientation suits designs where vertical space is constrained, and surface mount technology facilitates automated PCB assembly processes.

This component supports a maximum voltage of 50V and current rating of 1A, making it suitable for low power electronic circuits. The compact 1 mm row pitch is ideal for densely packed PCB layouts in consumer electronics, industrial equipment, and other applications.

Manufactured in Japan, the SM02B-NSHSS-TB(LF)(SN) adheres to high quality and performance standards typical of JST connectors. This product is a reliable choice for electronic engineers and manufacturers seeking compact, robust, and easy-to-use PCB connectors.

The header is shrouded to provide secure and reliable mating. Features a right angle orientation suitable for surface mounting. Constructed with copper alloy contacts plated in tin for durability. Supports a maximum operating voltage of 50V and current of 1A.

Operates reliably from -25°C to 85°C ambient temperatures. Incorporates solder termination for robust solder joint formation. The latch locking mechanism offers audible click feedback upon mating. Compact pitch of 1 mm allows space-saving PCB designs.

Manufactured in Japan ensuring quality and performance. Explore more PCB Headers and connectors within EnvMart for comprehensive product selection and technical support.
