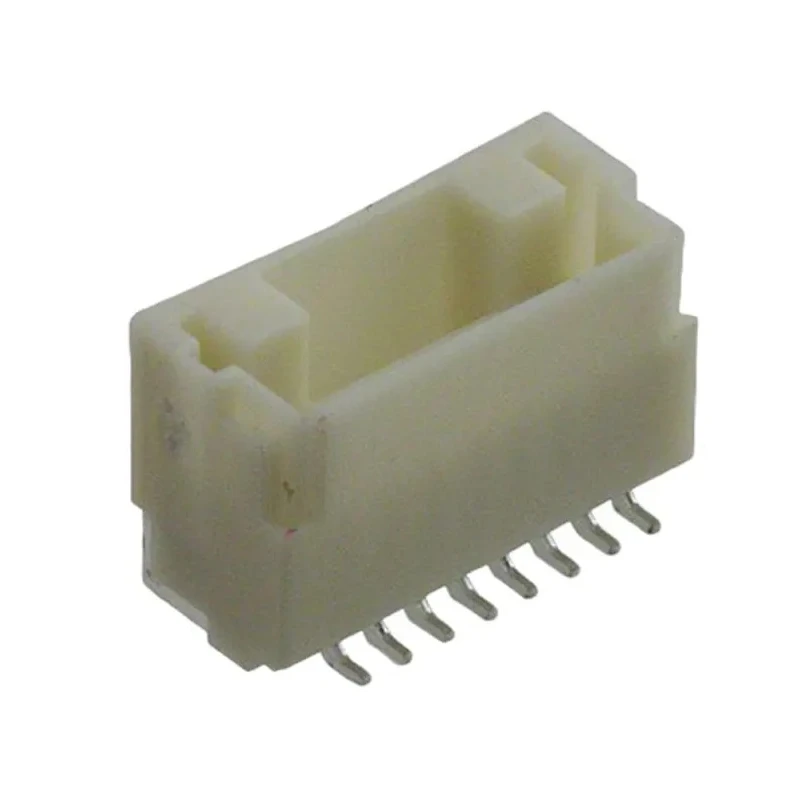

JST NSH Series Straight Surface PCB Header, 8 Contacts, 1 mm Pitch, 1 Row, Shrouded BM08B-NSHSS-TBT(LF)(SN)

JST BM08B-NSHSS-TBT(LF)(SN) is a straight surface mount PCB header from the NSH series, designed for wire-to-board connectors with an 8-contact configuration. It features a 1 mm pitch and a single row of shrouded male contacts, suitable for various electronic assembly applications.

The header utilizes copper alloy contacts with tin plating to provide excellent conductivity and durability. Its solder termination ensures robust mechanical and electrical connections on printed circuit boards. The connector supports up to 1A current and 50V voltage limits, making it appropriate for low-power electronic circuits.

Operating over a temperature range of -25°C to 85°C, this component is suitable for use in industrial, manufacturing, automation, and electronic design applications where compact and reliable surface mount connectors are required.

Its unique latch locking mechanism offers audible feedback upon mating with compatible sockets, enhancing connection security and ease of use. The NSH series connector's low insertion force spring mechanism aids in minimizing wear and improving assembly efficiency.

Manufactured in Japan, the BM08B-NSHSS-TBT(LF)(SN) adheres to strict quality standards, ensuring dependable performance for demanding electronics environments. Features 1 row of shrouded male contacts ensuring secure and reliable connections.

Designed with a straight orientation and surface mount type for easy PCB assembly. Constructed with copper alloy contacts plated with tin for excellent conductivity and corrosion resistance. Supports a maximum current of 1 ampere and voltage up to 50 volts.

Operates efficiently within a temperature range of -25°C to 85°C. Includes solder termination for stable and strong mechanical and electrical connections. Incorporates a low insertion force spring feature and latch locking mechanism for reliable mating with audible feedback.

Manufactured in Japan ensuring high-quality standards and craftsmanship.

This PCB header is ideal for industrial electronics, manufacturing automation, and electronic component assembly where reliability, compact design, and ease of installation are essential. Explore more high-quality PCB Headers and connectors in the Electronics & Electricals category at EnvMart.
