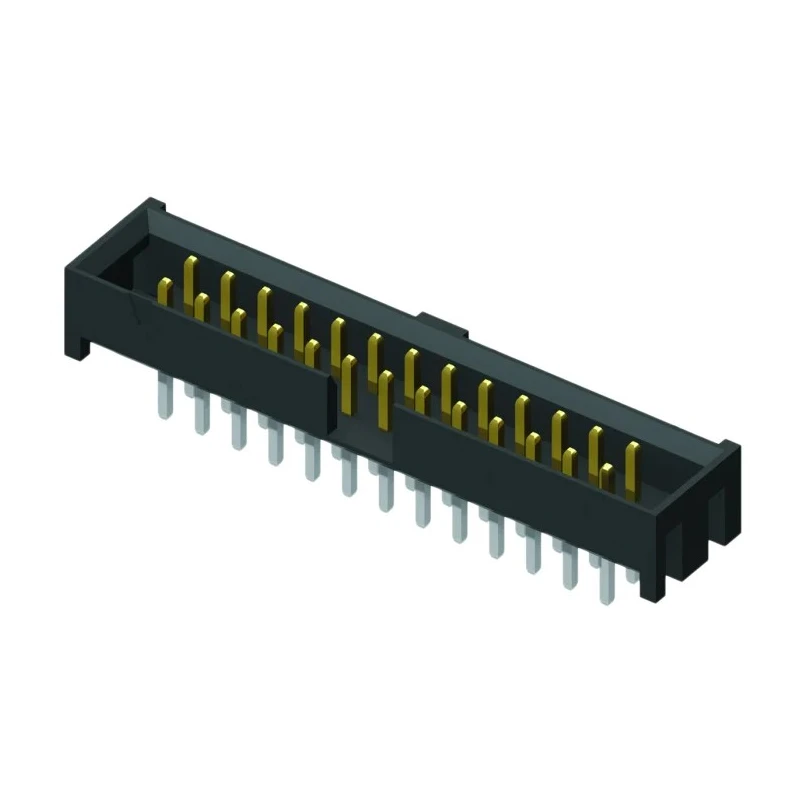

Samtec STMM Series Straight Through Hole PCB Header 34 Contacts 2 mm Pitch 2 Row Shrouded STMM-117-02-L-D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3A |
| Model | STMM-117-02-L-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | STMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 3.05mm |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Phosphor bronze contact material plated with gold for excellent conductivity.
- Supports a current rating of 3A ensuring reliable power handling.
- Designed with solder termination type and male contact gender.
- Operates across a temperature range of -55°C to 125°C.
- Features a tail pin length of 3 mm and mating pin length of 3.05 mm for secure connection.
- Mount type is through hole with wire-to-board connector system.
- Shrouded design includes a polarizing notch for accurate mating.
Product Description
The Samtec STMM-117-02-L-D is a high-quality PCB Header from the STMM Series designed with 34 contacts arranged in 2 rows with a 2 mm pitch. This straight through hole, shrouded connector is ideal for wire-to-board applications requiring reliable mechanical and electrical performance.
Manufactured with liquid crystal polymer housing, it provides excellent durability and electrical insulation. The phosphor bronze contacts are gold plated to ensure superior conductivity and corrosion resistance, essential for industrial and electronics manufacturing environments.
Rated for a current of 3A, this connector is suitable for medium power applications and withstands operating temperatures ranging from -55°C to 125°C, making it robust for diverse indoor and industrial settings.
The design features male contact gender and solder termination, with tail pin and mating pin lengths optimized for secure connections on PCB assemblies. The through hole mount type emphasizes reliable mechanical stability on printed circuit boards.
This shrouded header includes a polarizing notch to prevent incorrect mating, facilitating error-free assembly during production or maintenance.
Widely used across electronics and electrical industries, including power connectors and PCB connector assemblies, the STMM-117-02-L-D supports a broad range of applications in industrial, commercial, telecommunications, and manufacturing sectors.
Constructed with liquid crystal polymer housing for durability. Phosphor bronze contact material plated with gold for excellent conductivity. Supports a current rating of 3A ensuring reliable power handling. Designed with solder termination type and male contact gender.
Operates across a temperature range of -55°C to 125°C. Features a tail pin length of 3 mm and mating pin length of 3.05 mm for secure connection. Mount type is through hole with wire-to-board connector system. Shrouded design includes a polarizing notch for accurate mating.
Discover more PCB Headers and electronic connectors from Samtec at EnvMart where quality and reliability meet industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMM-117-02-L-D PCB header supports a current rating of 3A, ensuring reliable power handling for medium power applications.
This model operates across a temperature range of -55°C to 125°C, making it suitable for diverse industrial environments.
It is designed with a solder termination type, which is standard for secure connections on printed circuit boards.
The STMM-117-02-L-D features 34 contacts arranged in 2 rows with a 2 mm pitch.
The housing is made from liquid crystal polymer, while the contacts are made of phosphor bronze and plated with gold for excellent conductivity.
The tail pin length is 3 mm, and the mating pin length is 3.05 mm, providing secure connections.
This model features a through hole mount type, which emphasizes reliable mechanical stability on printed circuit boards.
Yes, the shrouded design includes a polarizing notch to prevent incorrect mating, facilitating error-free assembly.
The STMM-117-02-L-D has a male contact gender, which is typical for PCB headers.
It is widely used across electronics and electrical industries, including power connectors and PCB connector assemblies.
This PCB header belongs to the STMM Series, which is designed for reliable mechanical and electrical performance.
The STMM-117-02-L-D is manufactured in India.
