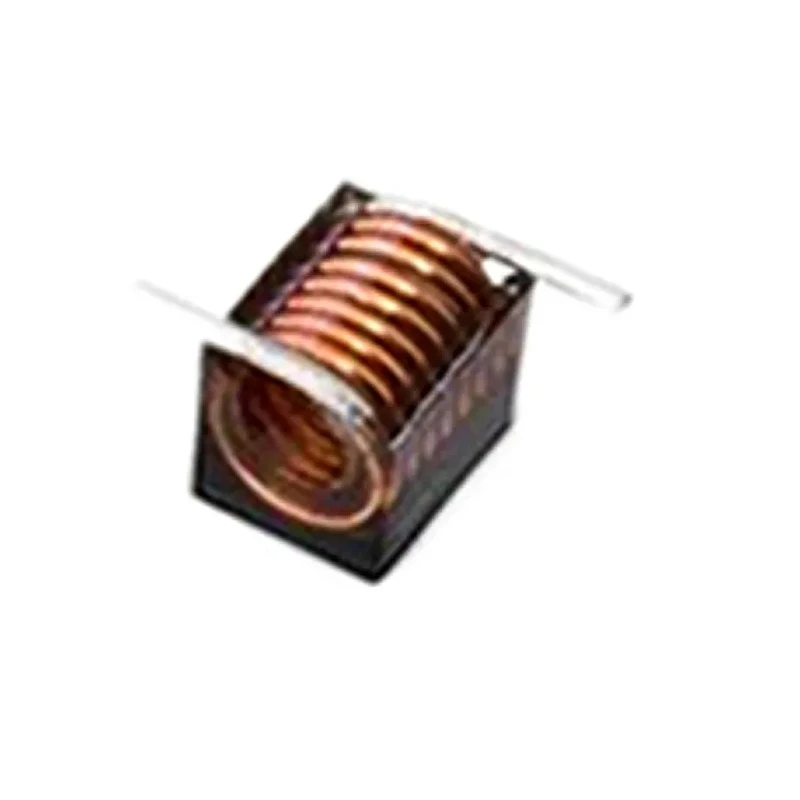

Wurth Elektronik WE-CAIR 3136 Unshielded Surface Mount Air Coil Inductor with Copper Core 5nH ±5% 4A Idc Q:140 744913050
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 3.18mm |
| Length | 3.68mm |
| Depth | 3.05mm |
| Packaging | Tape & Reel |
| Series | WE-CAIR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Copper |
| Inductance | 5nH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 3136 |
| Maximum DC Current | 4A |
| Pin Count | 2 |
| Maximum DC Resistance | 1.8mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 6.5GHz |
| Minimum Quality Factor | 140 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Unshielded surface mount design suitable for compact PCB layouts.
- High-quality copper core material ensures reliable inductance.
- 5nH inductance with ±5% tolerance for precision applications.
- Maximum DC current rating of 4 amperes supports high current circuits.
- Wirewound construction provides excellent inductance stability.
- Maximum operating temperature of 125°C enables use in demanding environments.
- High self-resonant frequency of 6.5GHz for RF applications.
- Compatible with pick and place machines and tape & reel packaging.
Product Description
Wurth Elektronik 744913050 is a surface mount air coil inductor from the WE-CAIR series, featuring an unshielded design with a copper core and an inductance value of 5 nanohenries (nH) with a ±5% tolerance. This inductor supports a maximum DC current of 4 amperes, making it suitable for high-current RF and broadband filtering applications.
Constructed with wirewound technology, it provides exceptional inductance stability and a high quality factor of 140, which is ideal for high-frequency circuits. The component has a compact 3136 package case with dimensions of 3.68mm length, 3.18mm height, and 3.05mm depth, facilitating dense PCB assembly and compatibility with automated pick and place machines.
The 744913050 inductor operates reliably across a temperature range from -40°C to 125°C and offers a high self-resonant frequency of 6.5GHz, enhancing its performance in RF decoupling and broadband filtering. It is supplied in tape & reel packaging for ease of use in manufacturing and assembly environments, meeting automotive AEC-Q200 standards and environmental compliance with RoHS and REACH directives.
This inductive component is ideal for industrial, electronic, RF, telecommunications, and automotive applications requiring stable inductors capable of handling high currents and frequencies.
Unshielded surface mount design suitable for compact PCB layouts. High-quality copper core material ensures reliable inductance. 5nH inductance with ±5% tolerance for precision applications. Maximum DC current rating of 4 amperes supports high current circuits.
Wirewound construction provides excellent inductance stability. Maximum operating temperature of 125°C enables use in demanding environments. High self-resonant frequency of 6.5GHz for RF applications. Compatible with pick and place machines and tape & reel packaging.
Complies with automotive AEC-Q200 standard and RoHS, REACH regulations. Package size 3136 with dimensions 3.68mm x 3.18mm x 3.05mm. Explore the range of Wurth Elektronik’s inductors and surface mount components on EnvMart for reliable electronic design solutions.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 5 nanohenries (nH) with a tolerance of ±5%.
It supports a maximum DC current rating of 4 amperes.
The dimensions of the package case are 3.68mm in length, 3.18mm in height, and 3.05mm in depth.
The maximum operating temperature is 125°C.
It features a copper core material, which ensures reliable inductance.
The inductor has a high self-resonant frequency of 6.5GHz, suitable for RF applications.
It is constructed using wirewound technology, providing excellent inductance stability.
Yes, it is compatible with pick and place machines and is supplied in tape & reel packaging.
It complies with automotive AEC-Q200 standards and environmental regulations, including RoHS and REACH.
The minimum quality factor is 140, making it suitable for high-frequency circuits.
The minimum operating temperature is -40°C.
This inductor has a pin count of 2.
