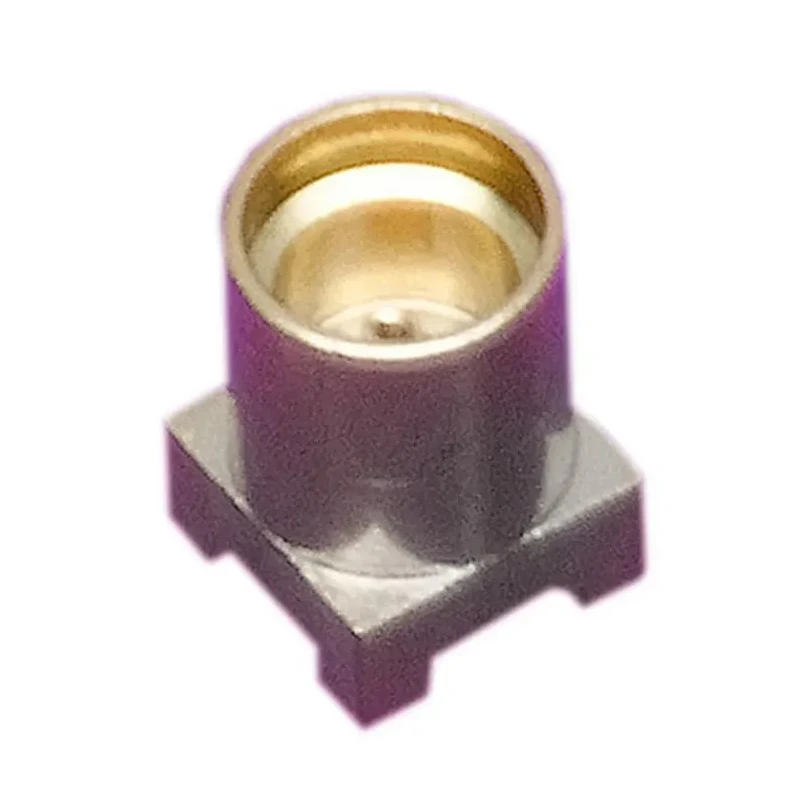

Molex 73415 Series Coaxial Connector PCB Female MCX 50 Ω Straight Body Solder 73415-2061
Specifications
| Country of Origin | India |
|---|---|
| Size | Miniature |
| Brand | Molex |
| Orientation | Straight |
| Mount Type | PCB |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | 73415 |
| Termination Type | Solder |
| Cable Type | RG178 |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- MCX type coaxial connector with 50 Ω impedance for high-frequency applications.
- Features a gold-plated body and beryllium copper contacts for enhanced conductivity and corrosion resistance.
- Designed with straight orientation and solder termination for secure PCB installation.
- Operates at frequencies up to 6 GHz, suitable for RF and telecommunications uses.
- Compact miniature size ideal for dense PCB layouts and wireless devices.
- Compatible with RG178 cable type and offers normal polarity configuration.
- MMCX series snap-on coupling ensures easy connection and mechanical stability.
- Widely used in wireless devices, GPS receivers, and consumer electronics.
Product Description
Molex 73415-2061 is a high-quality Coaxial Connector designed for mounting on printed circuit boards (PCB). This MCX female connector features a straight body design with solder termination, ensuring reliable mechanical and electrical connections in miniature form factors. It operates at an impedance of 50 Ω, ideal for RF applications up to 6 GHz frequency.
The connector body is gold-plated brass, which provides excellent corrosion resistance and conductivity. It includes beryllium copper contacts plated with gold for durability and optimum signal integrity. The connector is compatible with RG178 cable type and supports a normal polarity configuration to ensure seamless integration into electronic designs.
Molex's MMCX series connectors employ a snap-on coupling mechanism that offers robust mechanical stability and easy mating and de-mating without tools. This makes it suitable for telecommunications, wireless systems, GPS receivers, and other consumer electronics where space and weight constraints are critical.
The miniature size supports high-density PCB applications and aligns with industry standards. The solder termination provides secure mounting on the PCB, ensuring long-term operational reliability under typical industrial and commercial conditions.
MCX type coaxial connector with 50 Ω impedance. Straight body with gold plating for corrosion resistance. Beryllium copper contacts with gold plating for enhanced signal quality. Operates at frequencies up to 6 GHz. Compatible with RG178 cable type.
Solder termination ideal for PCB mounting. Miniature size suitable for dense PCB layouts. Snap-on MMCX coupling for mechanical stability.
This Molex 73415 Series Coaxial Connector is ideal for use in industrial, telecommunications, consumer electronics, and GPS device manufacturing. Available new and sourced with reliable quality standards, it ensures consistent performance in high-frequency signal transmission.
Explore more Coaxial Connectors and electronics components within the Molex brand on EnvMart for your specific industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector operates at an impedance of 50 Ω, making it suitable for RF applications.
It can operate at frequencies up to 6 GHz, which is ideal for high-frequency applications.
The connector features a solder termination type, ensuring secure mounting on PCBs.
It is compatible with RG178 cable type, allowing for seamless integration into electronic designs.
The contacts are made of beryllium copper and are plated with gold for enhanced conductivity and signal integrity.
This model features a straight body orientation, designed for easy installation on PCBs.
It is classified as a miniature size, which is ideal for high-density PCB layouts.
It employs a snap-on MMCX coupling mechanism, providing robust mechanical stability and ease of connection.
The connector has a female contact gender, suitable for various applications in electronics.
The connector is manufactured in India, ensuring adherence to quality standards.
It is widely used in telecommunications, wireless devices, GPS receivers, and consumer electronics.
