DiodesZetex 60 V 5 A Schottky Diode 2-Pin DO-201AD SB560-T

Free Delivery in India | Lowest Global Shipping Charges

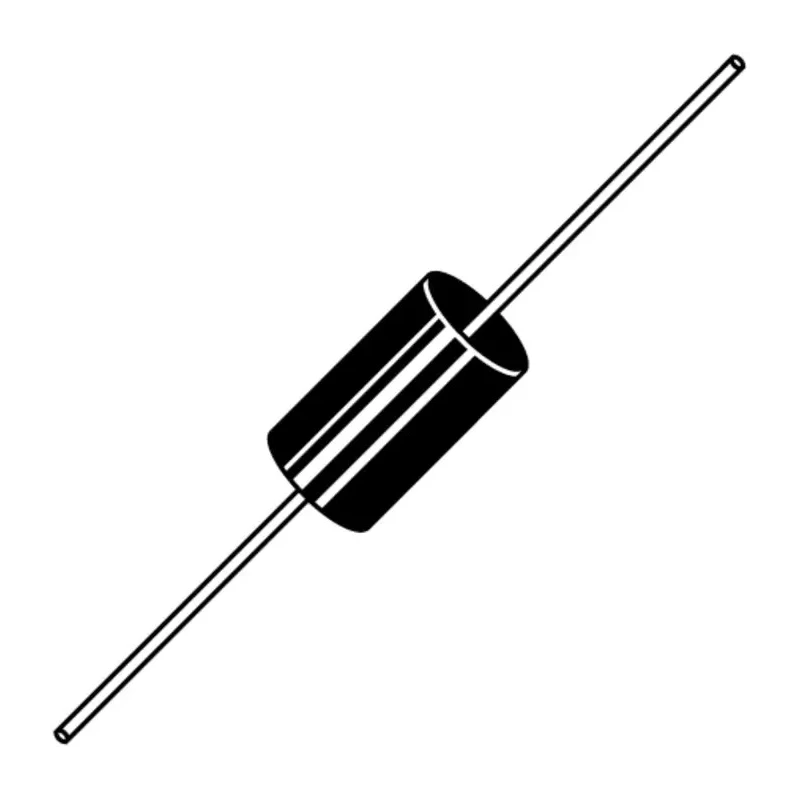

DiodesZetex 60 V 5 A Schottky Diode 2-Pin DO-201AD SB560-T

Name: DiodesZetex 60 V 5 A Schottky Diode 2-Pin DO-201AD SB560-T
Brand: DiodesZetex
SKU: 385153
Price: 0.38 USD
Availability: InStock



Category Schottky Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	DiodesZetex
Length	9.5mm
Model	SB560-T
Width	4.8mm
Mount Type	Through Hole
Series	SB560
Maximum Operating Temperature	150°C
Package Type	DO-201AD
Minimum Operating Temperature	-65°C
Standards/Approvals	FBI
Pin Count	2
Maximum Continuous Forward Current If	5A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	25mA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	670mV

Key Features

Through-hole mount type suitable for robust circuit integration.
Maximum continuous forward current of 5 A ensures efficient conduction.
Peak reverse repetitive voltage rating of 60 V offers solid voltage tolerance.
Low maximum forward voltage of 670 mV provides high efficiency.
Operating temperature range from -65°C to 150°C supports wide environmental conditions.
Compact DO-201AD package with length 9.5 mm, width 4.8 mm, and diameter 5.3 mm.
Peak non-repetitive forward surge current of 150 A for transient handling.
Single diode configuration with 2-pin design for straightforward circuit placement.

Product Description

DiodesZetex SB560-T is a Schottky barrier diode packaged in a 2-pin DO-201AD through-hole mount. This diode is engineered for power and electronic circuit applications requiring a continuous forward current capacity of 5 A at a voltage rating of 60 V. The diode features a low forward voltage drop of 670 mV, enabling enhanced efficiency with minimal power loss in rectification processes.

Designed to tolerate a wide temperature range from -65°C to 150°C, this component is suited for use in demanding industrial, automotive, and electronic equipment environments. Its compact dimensions (length 9.5 mm, width 4.8 mm, diameter 5.3 mm) and sturdy package allow for reliable installation on standard PCBs.

With a peak non-repetitive surge current rating of 150 A, the SB560-T diode can effectively manage transient current spikes, contributing to system durability and robustness. Its single diode configuration and 2-pin design simplify circuit integration in rectifier assemblies.

Through-hole mount type suitable for robust circuit integration. Maximum continuous forward current of 5 A ensures efficient conduction. Peak reverse repetitive voltage rating of 60 V offers solid voltage tolerance. Low maximum forward voltage of 670 mV provides high efficiency.

Operating temperature range from -65°C to 150°C supports wide environmental conditions. Compact DO-201AD package with length 9.5 mm, width 4.8 mm, and diameter 5.3 mm. Peak non-repetitive forward surge current of 150 A for transient handling.

Single diode configuration with 2-pin design for straightforward circuit placement. Complies with FBI standard, ensuring quality and performance reliability.

This diode finds applications in power rectification, voltage regulation, switching power supplies, and various electronic designs requiring low forward voltage and high surge capability. Its thermal stability and high reliability make it suitable for industrial, commercial, and automotive electronics contexts.

Explore a wide range of high-quality semiconductor components on EnvMart for your electronic design and manufacturing needs.

Explore more products in our Schottky Diode category.
