Comatec DIN Rail Power Supply 264V AC Input 12V DC, 5A Output, 60W PSC4.60.12M

Free Delivery in India | Lowest Global Shipping Charges

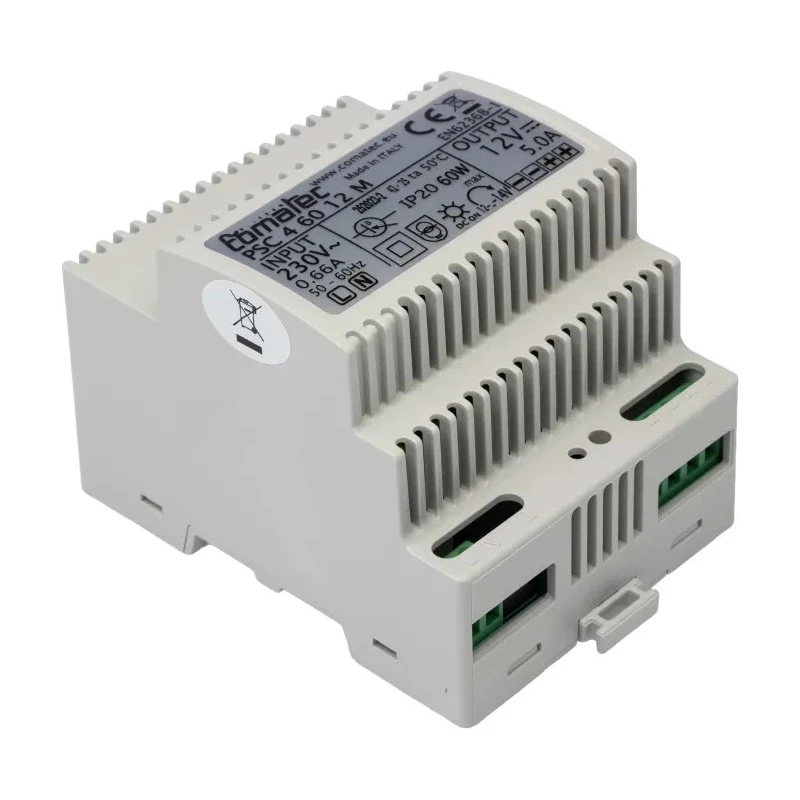

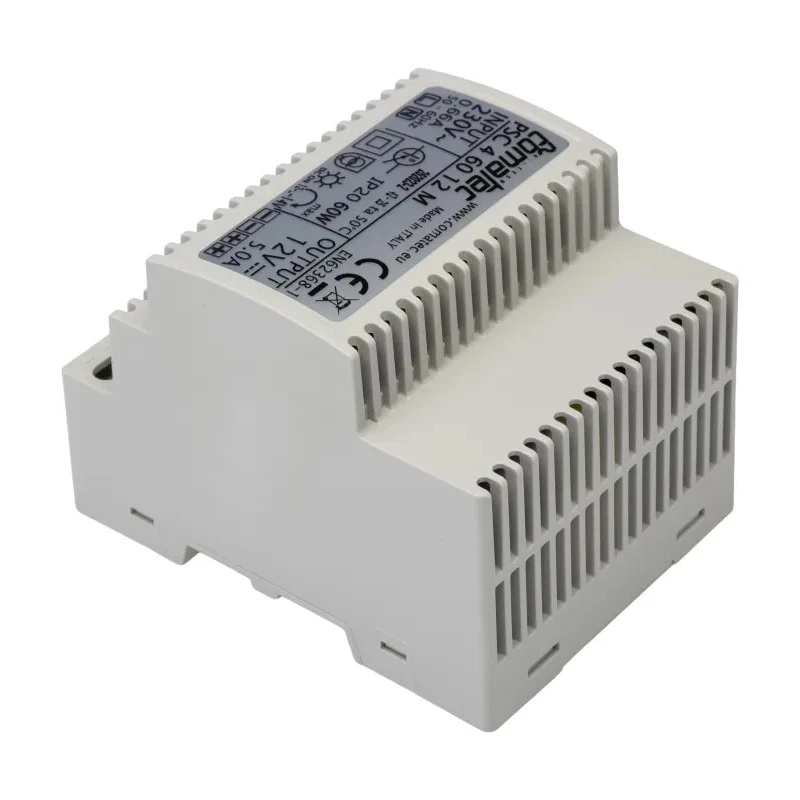

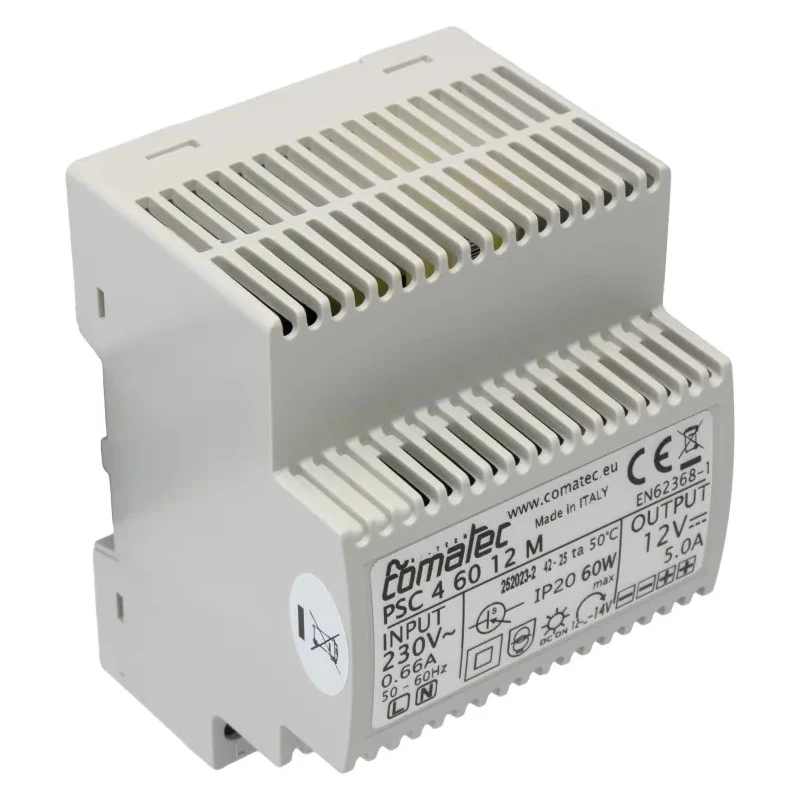

Comatec DIN Rail Power Supply 264V AC Input 12V DC, 5A Output, 60W PSC4.60.12M

Name: Comatec DIN Rail Power Supply 264V AC Input 12V DC, 5A Output, 60W PSC4.60.12M
Brand: Comatec
SKU: 385658
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Comatec Condition New

Specifications

Country of Origin	Italy
Brand	Comatec
Power	60W
Efficiency	85%
Height	93mm
Model	PSC4.60.12M
Depth	68mm
Width	72mm
Series	PSC
Output Current	5A
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	264V ac
Electrical Phase	1
Maximum Output Voltage	12V dc
Minimum Input Voltage	195V ac

Key Features

Universal input voltage range from 195VAC to 264VAC and 314VDC to 370VDC.
Output protection includes overload, over-voltage, and short circuit safeguards.
High efficiency of 85% with free air convection cooling.
Operating temperature range from -10°C to 50°C.
Compact dimensions of 93mm height, 72mm width, and 68mm depth.
Supports a single electrical phase and one output channel.
Long-life electrolytic capacitors for durability.
Suitable for factory automation and industrial control systems.

Product Description

Comatec PSC4.60.12M DIN Rail Power Supply offers a stabilized and adjustable 12V DC output at 5A with a power capacity of 60W. Designed for industrial environments, it accepts a universal AC input voltage ranging from 195VAC to 264VAC and a DC input range from 314VDC to 370VDC. This single output, single-phase power supply ensures protection against overload, over-voltage, and short circuits, enhancing device safety and reliability.

The device operates efficiently at 85%, helped by free air convection cooling, which minimizes the need for additional cooling mechanisms. Its operating temperature range from -10°C to 50°C supports use in various industrial settings. With compact dimensions measuring 93mm in height, 72mm in width, and 68mm in depth, it fits easily into standard DIN rail setups.

Equipped with long-life electrolytic capacitors, the power supply ensures extended durability and longevity. It is suitable for applications such as factory automation and industrial control systems where reliable power delivery is critical. The unit complies with multiple international standards including EN 60950-1, EN 61000-3-2-3 Class C, FCC Part 15 Class B, EN 55022, Class II, and EN 55024, confirming its safety, electromagnetic compatibility, and performance.

Universal input voltage from 195VAC to 264VAC and 314VDC to 370VDC with stabilized output. Overload, over-voltage, and short circuit protection integrated for enhanced safety. 85% efficiency aided by free convection cooling for optimal thermal management.

Supports operation within a temperature range of -10°C to 50°C suitable for industrial environments. Compact size enables easy DIN rail mounting and installation. Single-phase electrical input with one output channel. Compliance with key international safety and EMC standards.

Ideal for factory automation, industrial controls, and similar applications.

This Comatec DIN Rail Power Supply exemplifies reliability and efficiency in power management for industrial and automation applications. Explore more power supply solutions with EnvMart to meet diverse operational demands.
