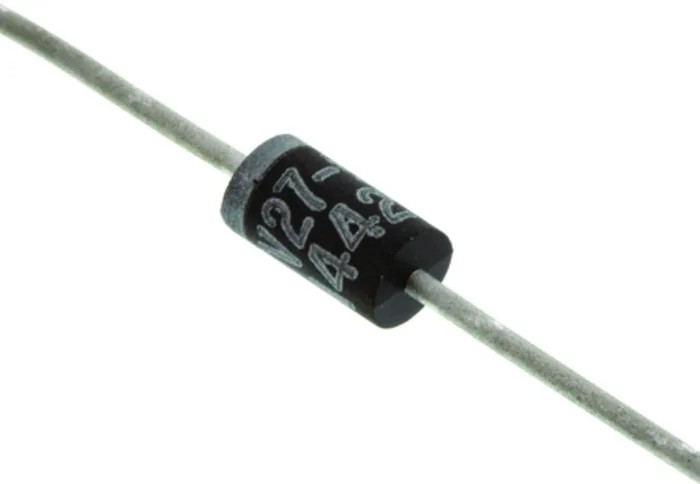

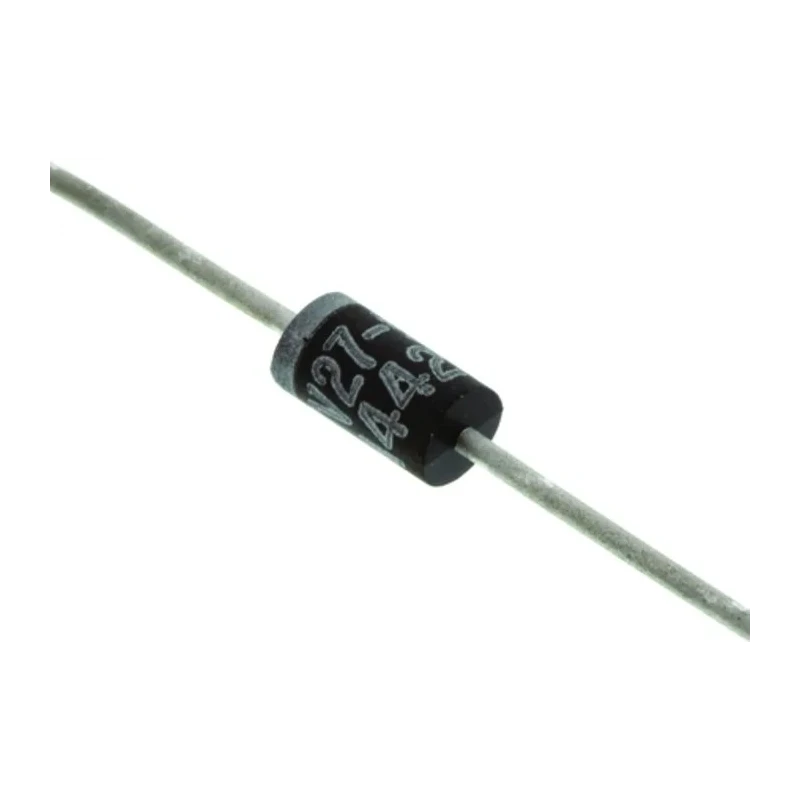

STMicroelectronics 60 V 2 A Through Hole Schottky Diode Single Configuration 2-Pin DO-41 STPS2L60

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 60 V 2 A Through Hole Schottky Diode Single Configuration 2-Pin DO-41 STPS2L60

Name: STMicroelectronics 60 V 2 A Through Hole Schottky Diode Single Configuration 2-Pin DO-41 STPS2L60
Brand: STMicroelectronics
SKU: 384615
Price: 0.32 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	2.7mm
Brand	STMicroelectronics
Height	1.1mm
Length	5.2mm
Model	STPS2L60
Width	2.9mm
Mount Type	Through Hole
Series	STPS2L60
Maximum Operating Temperature	150°C
Package Type	DO-41
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10mA
Peak Non-Repetitive Forward Surge Current Ifsm	75A
Maximum Forward Voltage Vf	0.51V

Key Features

Offers a maximum continuous forward current of 2 amps.
Peak reverse repetitive voltage rating of 60 volts.
Low forward voltage drop of 0.51 volts enhances efficiency.
Can withstand peak non-repetitive forward surge current up to 75 amps.
Operates reliably in a temperature range from -65°C to 150°C.
Features low peak reverse current of 10 mA improving performance in switching applications.
Designed for discrete semiconductor applications in power and connector electronics.
Non-automotive standard diode without specific approvals or certifications.

Product Description

STMicroelectronics STPS2L60 is a reliable 60 V, 2 A Schottky barrier diode designed for through-hole PCB mounting using the DO-41 package style. This single diode configuration offers efficient rectification with a low forward voltage drop rated at 0.51 V, minimizing power loss during conduction.

It supports a maximum continuous forward current of 2 A and can tolerate a peak non-repetitive forward surge current up to 75 A, making it suitable for transient surge conditions. The peak reverse repetitive voltage rating is 60 V, ensuring stable blocking in reverse bias.

The diode operates over a wide temperature range from -65°C to 150°C, suitable for various environmental conditions typically encountered in industrial electronics. Its compact physical dimensions of 5.2 mm length, 2.7 mm diameter, and 2.9 mm width facilitate integration into tight PCB spaces.

The STPS2L60 features a low peak reverse current of 10 mA, enhancing its efficiency in high-frequency switching and power rectification applications commonly found in power supply and power management circuits.

This device is commonly deployed in electronics, semiconductor discrete components, and power & connectors assemblies. Its through-hole mounting makes it compatible with legacy and modern PCB design processes.

Maximum continuous forward current: 2 A. Peak reverse repetitive voltage: 60 V. Forward voltage drop: 0.51 V. Peak surge current: 75 A. Operating temperature range: -65°C to 150°C. Package type: DO-41. Dimensions: length 5.2 mm, diameter 2.7 mm, width 2.9 mm.

Low peak reverse current of 10 mA. This Schottky diode is extensively used in industrial, manufacturing, laboratory equipment, and electrical power systems requiring efficient rectification and low voltage drop.
