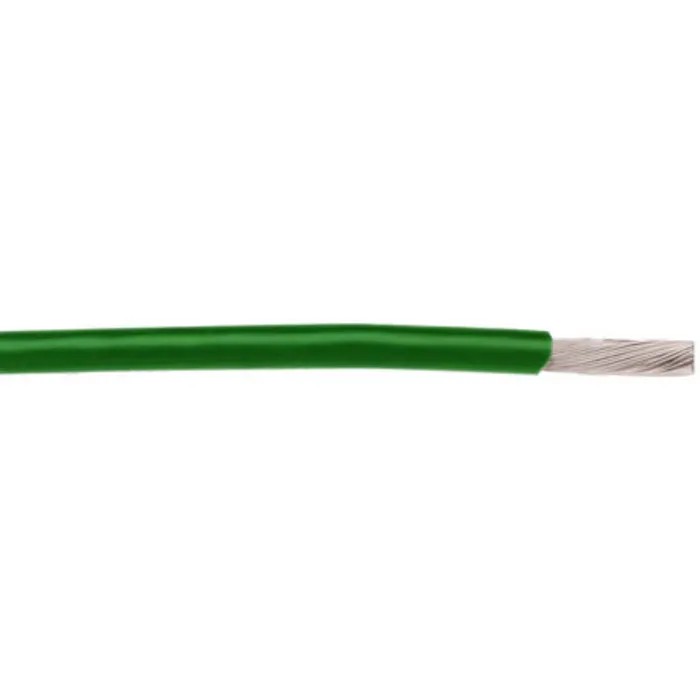

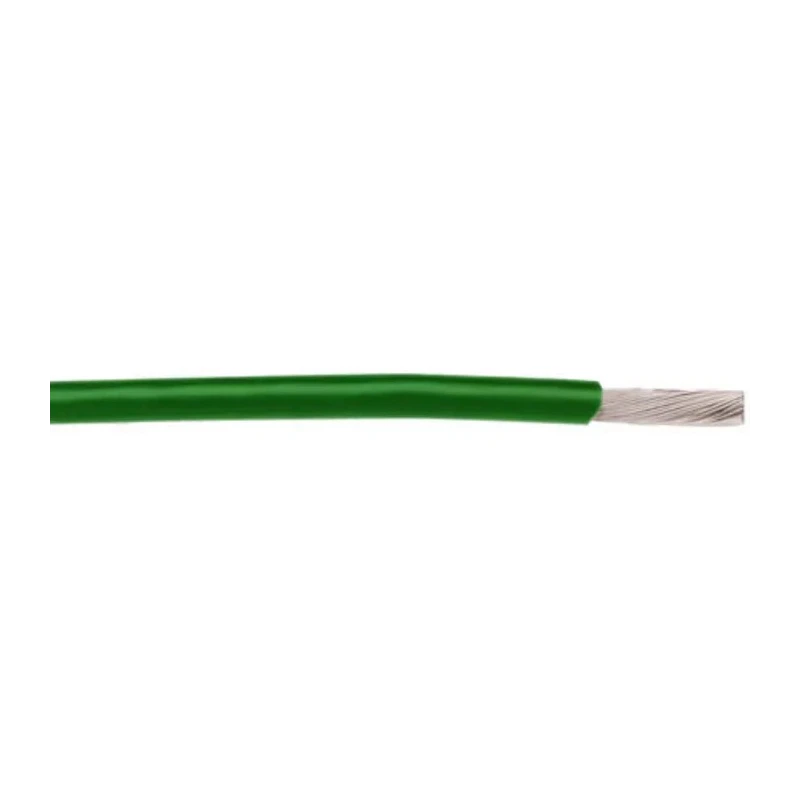

Alpha Wire Hookup Wire TEFLON Series Green 0.09 mm², 28 AWG, 19/40 Strands, Copper Conductor, 30.5 m Cable 2842/19 GR005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.09mm² |
| Model | 2842/19 GR005 |
| Cable Length | 30.5m |
| Series | Hookup Wire TEFLON |
| Outside diameter | 0.69mm |
| Maximum Operating Temperature | 200°C |
| Conductor Material | Copper |
| Sub Type | Hookup Wire |
| Minimum Operating Temperature | -60°C |
| Standards/Approvals | California Proposition 65, EU Directive 2011/65/EU (RoHS2), MIL-DTL-16878/6 (Type ET), MIL-W-16878E-TYPE ET, NEMA HP3-ETXBCE, REACH Regulation (EC 1907/2006), RoHS Compliant, UL VW-1 |
| Jacket Colour | Green |
| Fire Behaviour | Flame Resistant |
| American Wire Gauge | 28AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 40AWG |
| Size of Strands | 40AWG |
| Chemically inert | Chemical and solvent resistance |
Key Features
- The wire has PTFE insulation providing excellent chemical and solvent resistance.
- Rated for a maximum voltage of 250V and maximum operating temperature of 200°C.
- Features stranded copper conductor with 19 strands at 40 AWG size for flexibility.
- Designed to endure temperatures ranging from -60°C minimum to 200°C maximum.
- Suitable for use in control panels, automotive, meters, ovens, and electronic equipment internal wiring.
- Compliant with MIL-DTL-16878/6 (Type ET), RoHS, REACH, and UL VW-1 flame resistance standards.
- The cable length is 30.5 meters with an outside diameter of 0.69 mm.
- The green jacket color aids in easy identification and color coding of wiring systems.
Product Description
Alpha Wire 2842/19 GR005 Hookup Wire TEFLON Series is a premium-grade green insulated wire with a cross-sectional area of 0.09 mm² and 28 American Wire Gauge (AWG) size. The stranded conductor consists of 19 strands of 40 AWG copper, providing high flexibility and excellent electrical conductivity.
The wire is insulated with PTFE (Polytetrafluoroethylene), known for its outstanding chemical and solvent resistance as well as high-temperature tolerance up to 200°C. It operates reliably within a temperature range from -60°C to 200°C, making it ideal for harsh environments.
This hook-up wire is flame resistant and complies with multiple standards and approvals including MIL-DTL-16878/6 (Type ET), MIL-W-16878E-TYPE ET, UL VW-1, RoHS 2, and REACH Regulation EC 1907/2006, ensuring safety and environmental compliance in industrial and military setups.
Applications include control panels, automotive wiring, meters, ovens, internal wiring in computers, electronic equipment, business machines, and household appliances. Its excellent electrical and mechanical properties also make it suitable for military and high-temperature oven environments, off-road construction equipment, transformers, and switchboards.
Technical features include chemical inertness, high flexibility from stranded construction, and flame resistance for enhanced safety. The green jacket color enhances visibility and organization in wiring harnesses.
Alpha Wire's TEFLON series hook-up wire is designed for reliability and durability in demanding industrial, laboratory, aerospace, and electronic manufacturing contexts. The wire's PTFE insulation offers chemical and solvent resistance.
It can withstand high temperatures up to 200°C reliably. The stranded copper conductor delivers excellent electrical conductivity and flexibility. Complies with military and industrial safety and environmental standards.
Ideal for internal wiring of precision electronic devices and control equipment. Explore more high-quality hook-up wires and cables in the Electronics & Electricals category at EnvMart for industrial and commercial needs.
Explore more products in our Hook Up Wire category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this hookup wire is 250V.
It operates reliably within a temperature range from -60°C to 200°C.
The copper conductor consists of 19 strands, each sized at 40 AWG.
The cross-sectional area of this wire is 0.09 mm².
This wire complies with MIL-DTL-16878/6 (Type ET), RoHS, REACH, and UL VW-1 flame resistance standards.
The green jacket color aids in easy identification and color coding of wiring systems.
The outside diameter of this hookup wire is 0.69 mm.
It is suitable for use in control panels, automotive wiring, meters, ovens, and internal wiring of electronic equipment.
This wire is insulated with PTFE (Polytetrafluoroethylene), known for its excellent chemical and solvent resistance.
Yes, this wire is flame resistant and complies with UL VW-1 standards.
The country of origin for this wire is India.
The length of this hookup wire is 30.5 meters.
