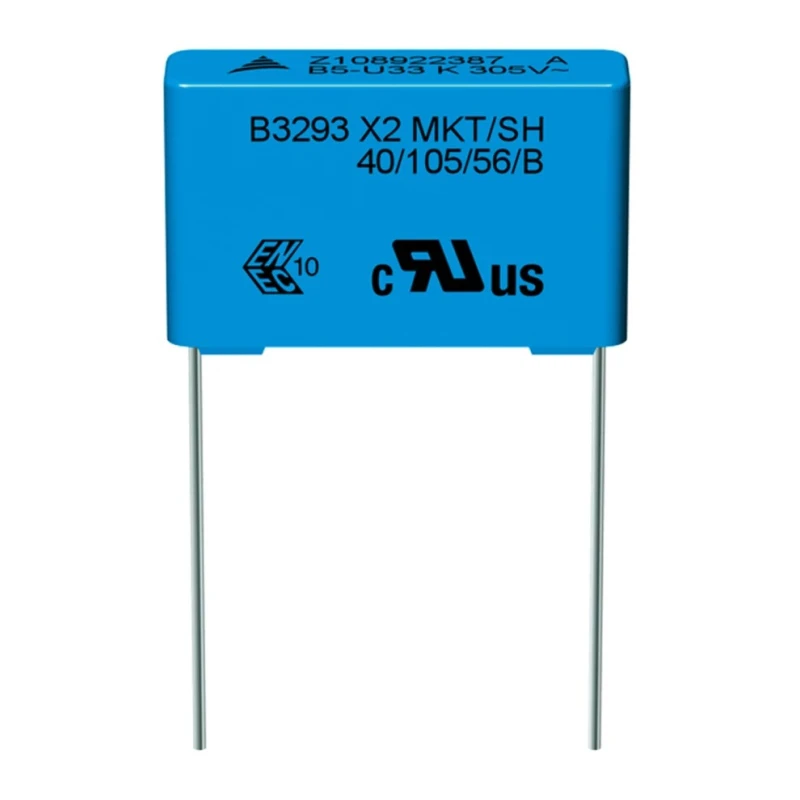

TDK B3293 Series Film Capacitor 680 nF 305V AC 305V DC Through Hole Mount B32933A3684K000

Free Delivery in India | Lowest Global Shipping Charges

TDK B3293 Series Film Capacitor 680 nF 305V AC 305V DC Through Hole Mount B32933A3684K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	18.5mm
Length	26.5mm
Model	B32933A3684K000
Width	10.5mm
Mount Type	Through Hole
Series	B3293
Maximum Operating Temperature	105°C
Capacitance	680nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D
Suppression Class	X2

Key Features

Class X2 metallised polyester film capacitor with internal series connection for safety.
Rated for 305V AC and 305V DC operating voltages.
Lead pitch of 22.5mm with 0.8mm lead diameter for reliable mounting.
Maximum operating temperature of 105°C ensuring stable performance.
Designed with plastic case and epoxy resin sealing for flame retardance.
Complies with automotive standard AEC-Q200 Rev D and UL, RoHS certifications.
Suitable for capacitive power supplies, energy meters, and connection in series with mains circuits.

Product Description

TDK B32933A3684K000 is a high-quality Film Capacitor from the B3293 series, offering 680 nF capacitance and dual AC/DC voltage ratings of 305V. Featuring a through-hole mounting type with a lead pitch of 22.5mm, it is designed for stable and reliable electrical performance in demanding industrial and electronic environments.

The metallised polyester (MKT) construction includes an internal series connection, contributing to enhanced safety classified as X2, suitable for mains connection and capacitive power supplies. Encased in flame-retardant plastic with epoxy resin sealing, this capacitor can endure harsh ambient conditions, allowing operation up to 105°C.

This component meets strict automotive standard AEC-Q200 Rev D, as well as UL and RoHS standards, ensuring compliance with quality and environmental regulations. The capacitor’s compact dimensions of 26.5mm length, 18.5mm height, and 10.5mm width make it adaptable for various printed circuit board assemblies.

Applications include use in energy meters, capacitive power supply circuits, and other electronic devices requiring stable capacitance and rated voltage handling capabilities up to 305V AC or DC.

Class X2 metallised polyester construction for safety and stability. Rated 305V AC and DC voltage ensuring versatility. Lead pitch and diameter designed for secure through-hole mounting. Flame-retardant plastic casing and epoxy resin sealing for durability.

Meets automotive and industrial quality standards for reliability. Compact size facilitating PCB integration and assembly efficiency. Suitable for industrial electronics, HVAC controls, and power supply systems. Explore more capacitors and electronic components on EnvMart for industrial and commercial applications.
