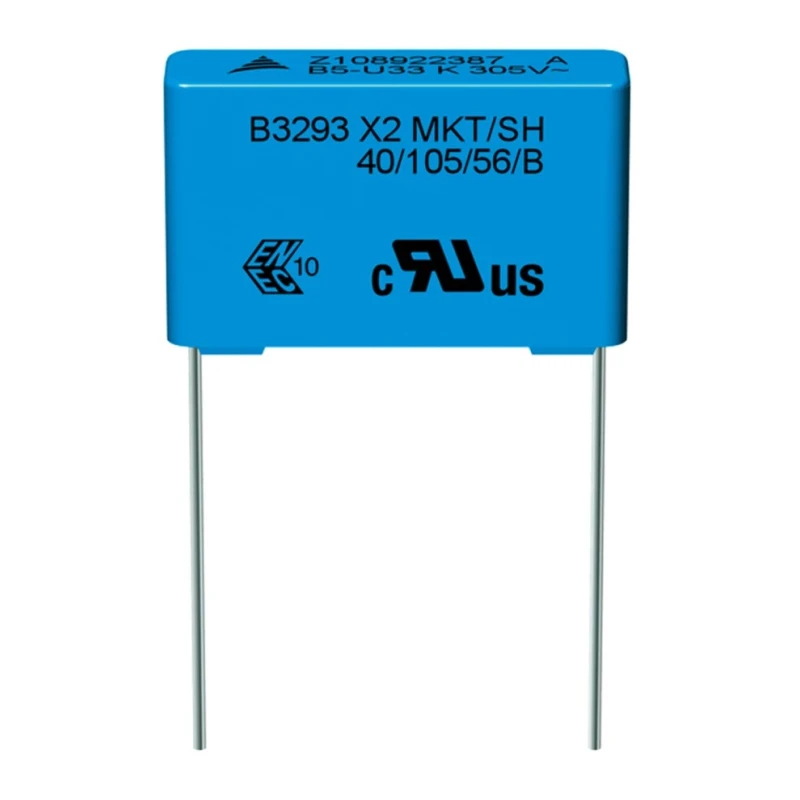

TDK B3293 Film Capacitor 680 nF 305V AC 305V DC Through Hole Mount 2 Pin B32933A3684K000

Free Delivery in India | Lowest Global Shipping Charges

TDK B3293 Film Capacitor 680 nF 305V AC 305V DC Through Hole Mount 2 Pin B32933A3684K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	18.5mm
Length	26.5mm
Model	B32933A3684K000
Width	10.5mm
Mount Type	Through Hole
Series	B3293
Maximum Operating Temperature	105°C
Capacitance	680nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D
Suppression Class	X2

Key Features

Class X2 metallised polyester film capacitor with an internal series connection.
Plastic case with UL 94 V-0 flame-retardant epoxy resin sealing.
High stability of capacitance values under severe ambient conditions.
Complies with automotive standard AEC-Q200 Rev D for reliability.
X2 safety approval suitable for use up to 2.2 μF capacitance.
Maximum operating temperature of 105°C supports demanding applications.
Lead pitch of 22.5 mm and lead diameter of 0.8 mm for secure mounting.
Applications include mains connection in series, capacitive power supplies, and energy meters.

Product Description

TDK's B3293 Series Film Capacitor, model B32933A3684K000, is a high-quality metallised polyester capacitor designed for a wide range of electrical and industrial applications. With a capacitance of 680 nF and voltage ratings of 305V AC and 305V DC, this capacitor is optimized for through-hole mounting with two pins spaced 22.5 mm apart for secure PCB installation.

This capacitor features a flame-retardant plastic case with UL 94 V-0 epoxy resin sealing, ensuring both safety and durability under high-temperature conditions up to 105°C. The B3293 series supports applications requiring high stability of capacitance and is approved for X2 suppression, making it suitable for situations involving connection in series with mains voltage and capacitive power supply circuits.

The unit conforms to the automotive standard AEC-Q200 Rev D, underscoring its reliability in automotive and industrial environments. Dimensions of 26.5 mm length, 10.5 mm width, and 18.5 mm height enable versatile mounting in diverse electronic assemblies.

Typical use cases include energy metering devices, filtering, and noise suppression in industrial, commercial, and automotive electronics. The capacitor carries UL and RoHS certifications, ensuring compliance with stringent safety and environmental standards.

Class X2 capacitor with internal series connection for enhanced safety. Plastic flame-retardant casing with epoxy resin sealing. High capacitance stability under severe environmental conditions. Compliance with automotive standard AEC-Q200 Rev D.

Use cases in mains energy meters, capacitive power supplies, and series connections with AC mains. Lead pitch and dimensions optimized for through-hole PCB mounting.

This product is an ideal component for electronic manufacturers requiring reliable Film Capacitors for suppression and filtering applications. Explore the comprehensive Electronics Components category at EnvMart for compatible products and accessories.
