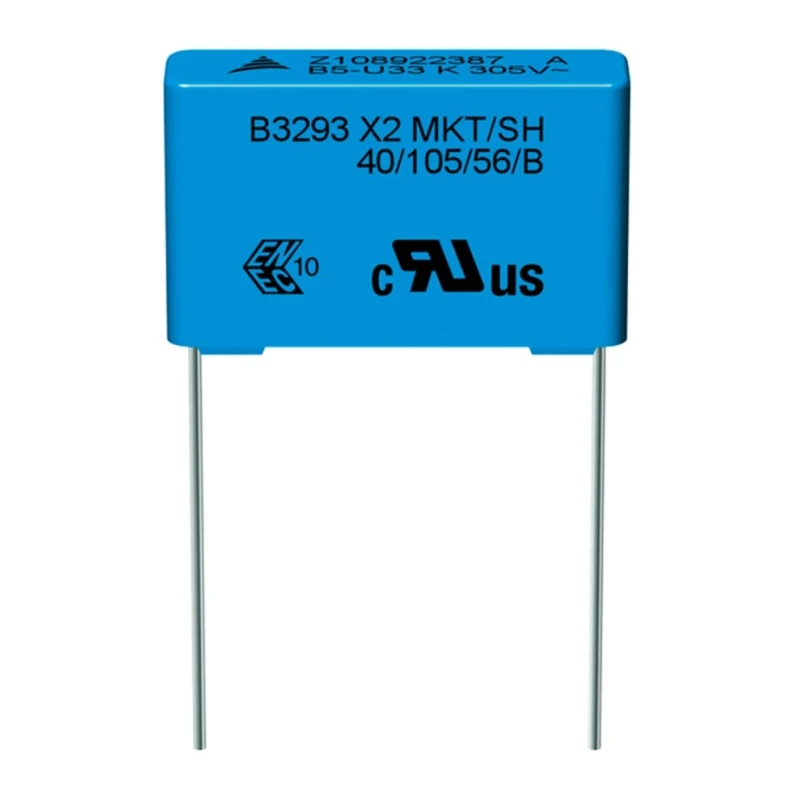

TDK B3293 Film Capacitor 330nF 305V AC 305V DC Through Hole 2 Pin Mount B32933A3334K000

Free Delivery in India | Lowest Global Shipping Charges

TDK B3293 Film Capacitor 330nF 305V AC 305V DC Through Hole 2 Pin Mount B32933A3334K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	16mm
Length	26.5mm
Model	B32933A3334K000
Width	7mm
Mount Type	Through Hole
Series	B3293
Maximum Operating Temperature	105°C
Capacitance	330nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D
Suppression Class	X2

Key Features

Capacitance value of 330nF for stable electrical performance.
Rated AC voltage of 305 volts ensuring suitability for mains connection.
Through hole mount type with a pin count of 2 for secure PCB installation.
Manufactured to meet automotive standard AEC-Q200 Rev D.
High operating temperature up to 105°C for use in demanding environments.
X2 suppression class providing safety for capacitive power supply applications.
Lead pitch of 22.5mm and lead diameter of 0.8mm supporting mechanical stability.
Compliant with RoHS and UL standards for quality and environmental safety.

Product Description

TDK B32933A3334K000 is a high-quality B3293 series metallised polyester film capacitor designed for industrial and electronic applications requiring stable capacitance and reliable safety standards.

This capacitor features a capacitance of 330nF rated for 305V AC and 305V DC operation, suitable for use in suppression, capacitive power supplies, energy meters, and harsh ambient conditions typical in automotive and industrial electronics.

The through hole mounting with 2 pins ensures robust mechanical connection on printed circuit boards, facilitating reliable performance in severe environments. It complies with automotive standard AEC-Q200 Rev D and carries X2 suppression class designation for enhanced safety.

The capacitor has a plastic case rated UL 94 V-0 with epoxy resin sealing that is flame-retardant and guarantees high stability of capacitance over its lifetime. Its compact dimensions (26.5mm length, 16mm height, 7mm width) and lead pitch of 22.5mm make it suitable for dense PCB layouts.

Applications for this film capacitor include connection in series with mains, energy metering devices, and capacitive power supplies where reliability and safety compliance are critical.

Capacitance value of 330nF for stable electrical performance. Rated AC voltage of 305 volts ensuring suitability for mains connection. Through hole mount type with a pin count of 2 for secure PCB installation. Manufactured to meet automotive standard AEC-Q200 Rev D.

High operating temperature up to 105°C for use in demanding environments. X2 suppression class providing safety for capacitive power supply applications. Compact dimensions: 26.5mm length, 16mm height, and 7mm width for space-efficient design.

Lead pitch of 22.5mm and lead diameter of 0.8mm supporting mechanical stability. Compliant with RoHS and UL standards for quality and environmental safety. Plastic case with UL 94 V-0 flame-retardant epoxy resin sealing enhances durability.
