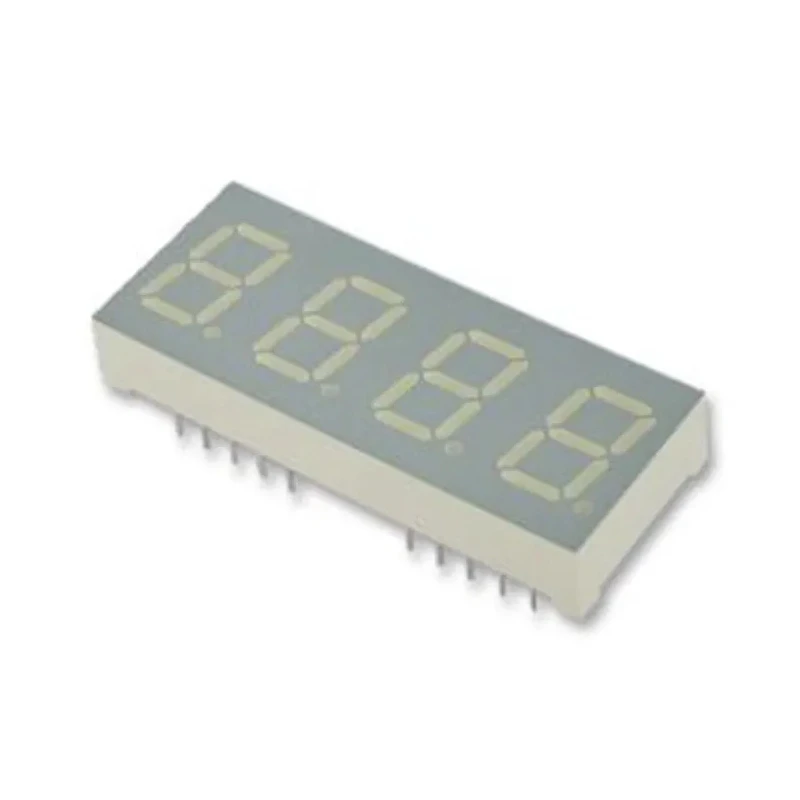

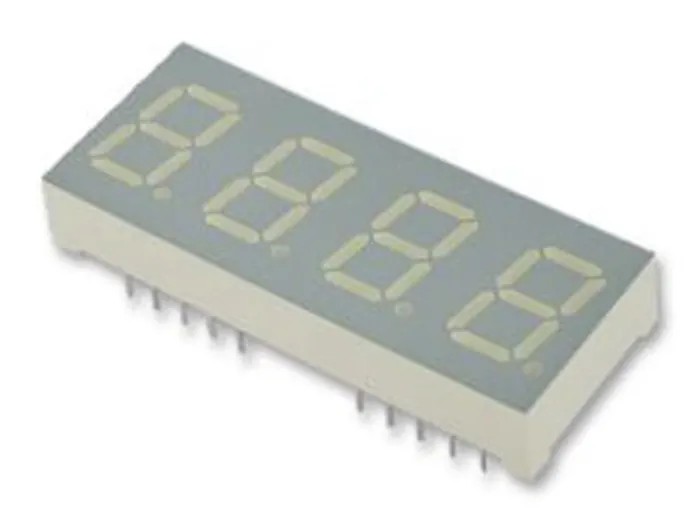

Kingbright 4-Digit 7 Segment LED Display Red Anode 10.2 mm Character Height CA04-41SURKWA

Kingbright CA04-41SURKWA is a 4-digit 7 segment LED display designed for clear and efficient numeric display in electronic devices. The red anode display has a character height of 10.2 mm, ensuring excellent visibility at close and moderate distances. This LED display is manufactured with a grey face and white segments to provide a high contrast ratio and enhanced readability.

The display features a common anode configuration and is mounted using a through-hole technique, making it compatible with a wide range of printed circuit boards and sockets. Each character’s width measures 6 mm, and the decimal point is oriented on the right side to facilitate accurate numeric representation.

Designed to perform reliably in harsh environments, this display operates in a temperature range from -40°C to 85°C and dissipates a power of 75 mW under normal operation with a forward voltage of 2.5 V at 30 mA forward current. The luminous intensity is rated at 87 millicandela, delivering bright and consistent illumination.

This product is RoHS compliant and mechanically rugged, making it suitable for industrial, laboratory, electronic manufacturing, and commercial display applications. Its typical applications include measurement instruments, counters, timers, and digital meters in automated systems.

Four-character, seven segment LED configuration for numeric display needs. Red LED color with 630 nm dominant wavelength. Through-hole mounting ensures secure and reliable installation. Operating temperature range supports demanding industrial environments.

Low power dissipation enhances energy efficiency. High luminosity for excellent visibility in ambient light. Grey face design improves readability and aesthetics. Right side decimal orientation for precise numeric readings.

EnvMart offers this Kingbright LED display as part of its Electronics Components category, ideal for engineers and technicians requiring quality LED display solutions. Explore the complete range of LED Display modules and components on EnvMart to suit diverse project requirements.
