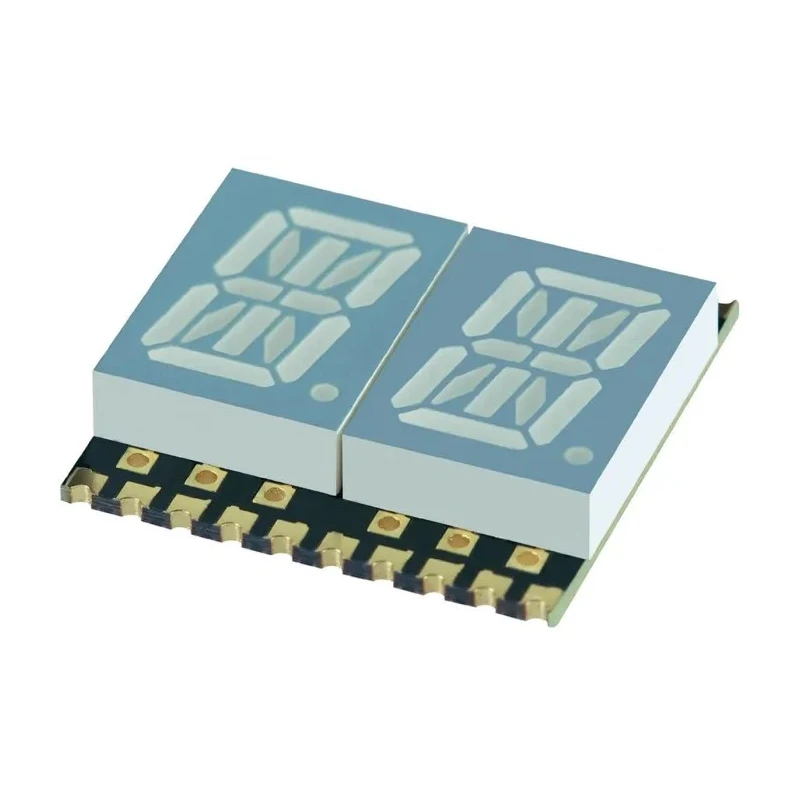

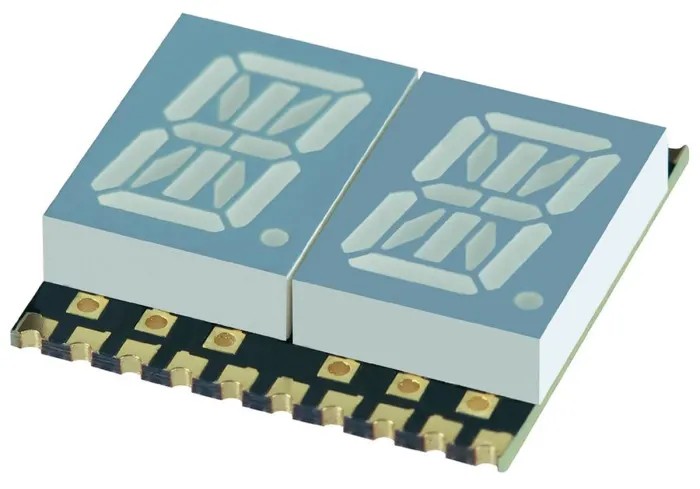

Kingbright 2 Character 14 Segment Surface Mount LED Display Red Anode 10.2mm KCPDA04-105

Kingbright KCPDA04-105 is a dual-digit alphanumeric LED display module designed with 14 segments per character for detailed representation of numbers and letters. With a 10.2 mm (0.4 in) character height and 6 mm character width, the display offers excellent clarity and high contrast output in a compact 18.8 mm wide and 3.8 mm high surface mount package.

This red anode LED display operates with a forward voltage of 2V and a forward current of 30mA, ensuring low power dissipation at 75mW. Its luminous intensity of 36mcd provides bright and legible display output even in ambient lighting conditions. The module features a grey-colored face that enhances visual contrast, making it suitable for industrial, laboratory, and electronic instrumentation applications.

The device supports operation within a wide temperature range of -40°C to +85°C, making it reliable for harsh environments. Its right-side decimal orientation enables flexible integration within display systems. Mechanical robustness ensures durability for use in manufacturing, automation, and commercial display modules.

This Kingbright LED display is RoHS compliant, meeting environmental directives for safe and sustainable electronic manufacturing. It is ideal for use in electronic components, power supplies, and display modules requiring clear alphanumeric indication with efficient, low-current operation.

High-contrast dual-character alphanumeric display. Surface mount technology for compact assembly. Low power consumption and bright red LED output. Wide operating temperature ensures industrial reliability. Grey module face for enhanced display readability.

Robust mechanical design for tough environments. RoHS compliant for environmental safety. Compatible with various electronic and automation systems. Ideal for numeric and alphabetic display applications. Precision 14-segment layout for detailed character forms.
