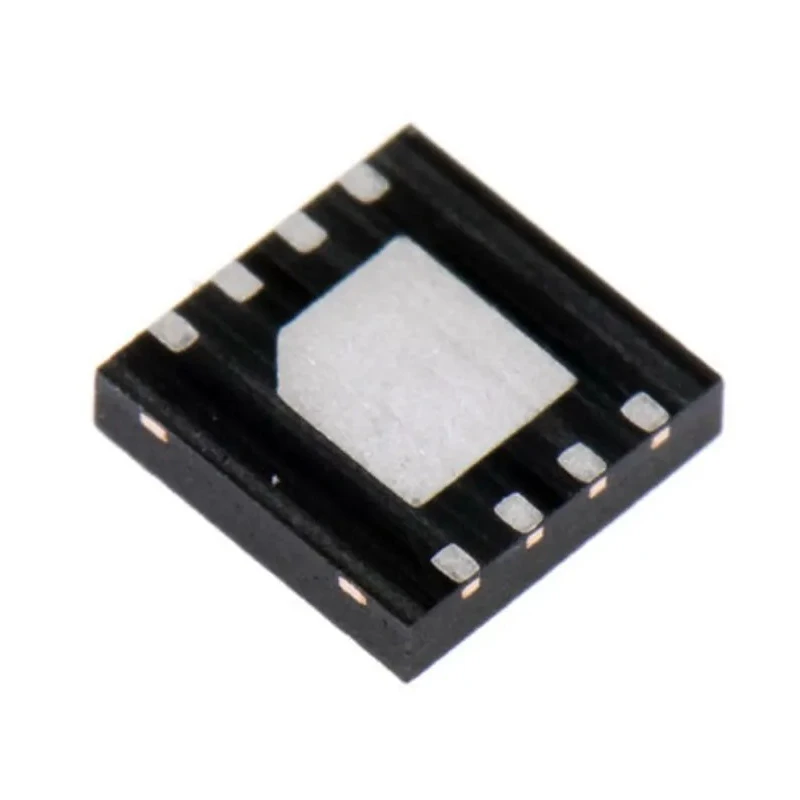

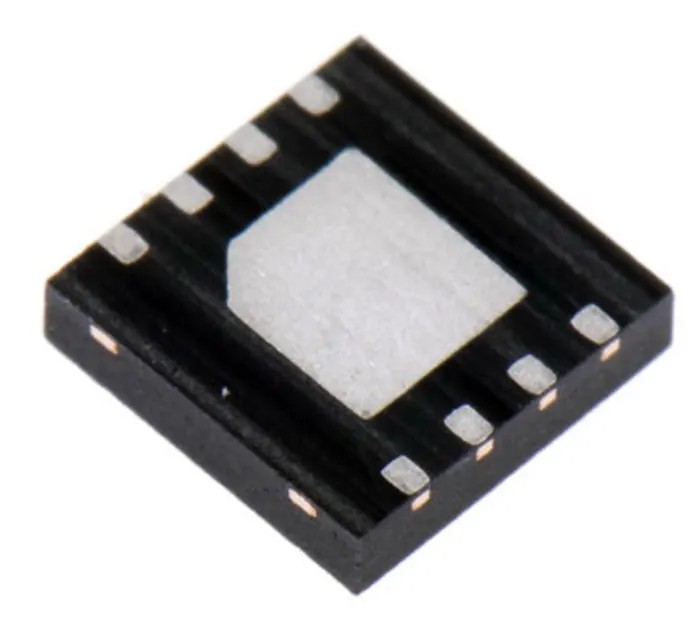

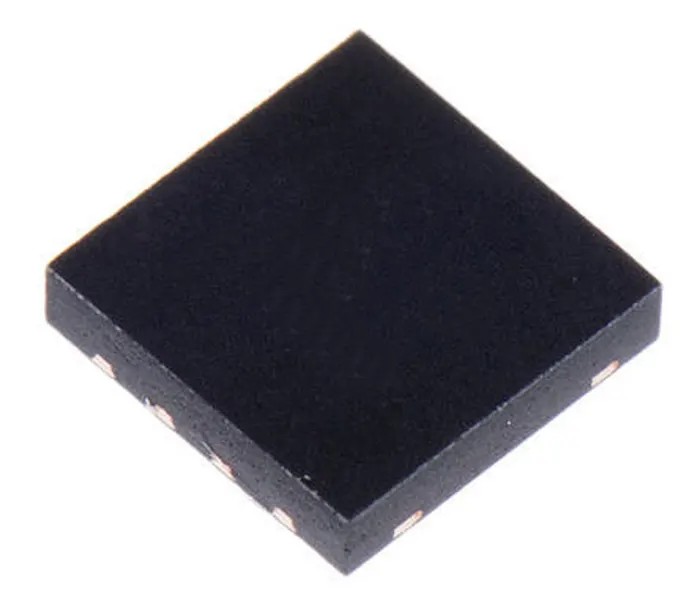

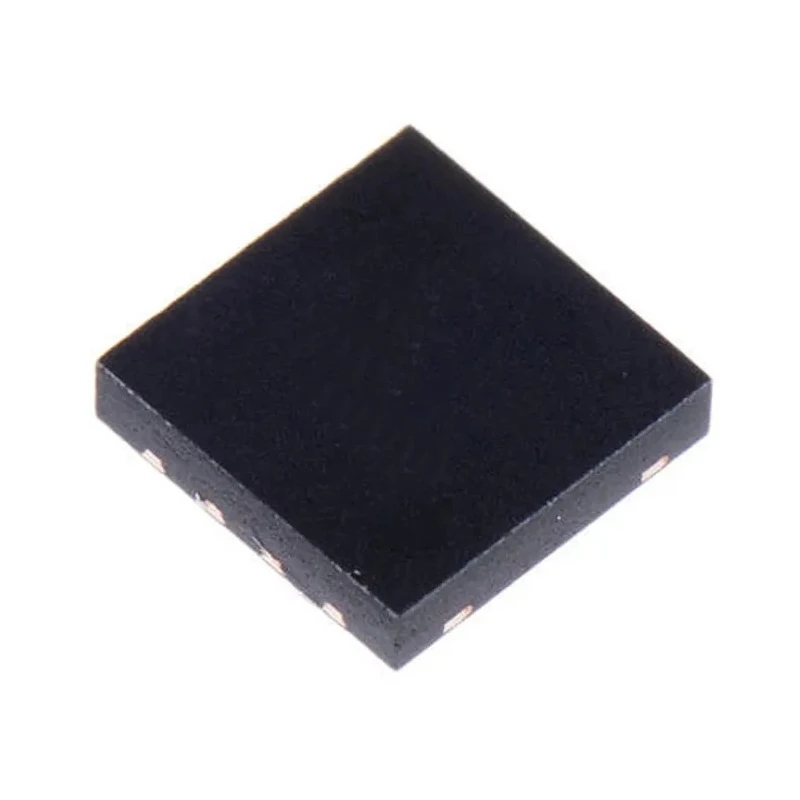

STMicroelectronics Audio Amplifier IC, 8-Pin DFN, 2.8W Output Power, Class D, TS4962IQT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Audio Amplifier IC, 8-Pin DFN, 2.8W Output Power, Class D, TS4962IQT

Name: STMicroelectronics Audio Amplifier IC, 8-Pin DFN, 2.8W Output Power, Class D, TS4962IQT
Brand: STMicroelectronics
SKU: 384625
Price: 2.25 USD
Availability: InStock



Category Audio Amplifier ICs Brand STMicroelectronics Condition New

Specifications

Country of Origin	Philippines
Brand	STMicroelectronics
Height	0.88mm
Length	3mm
Model	TS4962IQT
Width	3mm
Output Power	2.8W
Mount Type	Surface
Series	TS4962I
Maximum Operating Temperature	85°C
Package Type	DFN
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.4V
Amplifier Type	Audio
Amplifier Class	Class D
GBP - Gain Bandwidth Product	360kHz

Key Features

Operates over a supply voltage range of 2.4V to 5.5V for flexible power applications.
Optimized for automotive and low power audio applications with robust thermal performance.
Compact 3mm x 3mm x 0.88mm DFN package enables space-saving PCB designs.
Features headphone and low power audio amplification with capless and filterless architecture.
Single channel audio amplifier with a gain bandwidth product of 360kHz for high fidelity sound.
Operates reliably from -40°C to 85°C, suitable for harsh environments.
Designed to be surface mounted providing easy assembly in modern electronics manufacturing.

Product Description

STMicroelectronics TS4962IQT is a high efficiency audio amplifier integrated circuit designed to deliver 2.8W output power from a compact 8-pin DFN package. The device utilizes Class D architecture for optimal audio performance and power efficiency, making it ideal for automotive and low power consumer electronics applications.

Operating from 2.4V to 5.5V supply voltage, the amplifier supports a wide voltage range while maintaining excellent audio fidelity with a gain bandwidth product of 360kHz. The capless and filterless design simplifies the external circuitry requirements, reducing the component count and improving system reliability.

The IC is engineered to operate over a broad temperature range from -40°C to +85°C, suitable for integration into automotive systems and other demanding environments. Its single channel output and 8-pin DFN surface mount package measuring 3mm by 3mm by 0.88mm enables compact and efficient board layouts.

Applications include automotive audio systems, portable audio devices, and other low power sound amplification needs. The device is manufactured in the Philippines and delivered in a reel format for automated assembly.

High efficiency Class D audio amplifier architecture. Capless and filterless output stage for simplified design. Single channel operation for straightforward integration. Wide operating temperature range from -40°C to 85°C.

Compact 3mm × 3mm × 0.88mm DFN package for space-saving PCBs. Supply voltage range of 2.4V to 5.5V for versatility. 360kHz gain bandwidth product for high quality audio amplification. Explore all STMicroelectronics audio amplifiers and find related industrial electronic components on EnvMart for your design and manufacturing needs.
