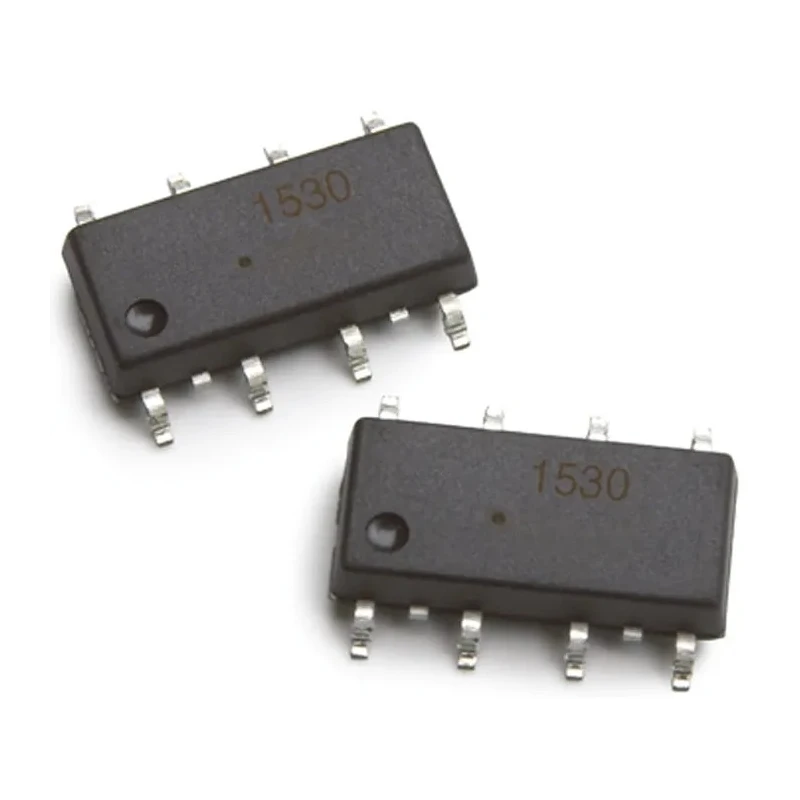

Broadcom Solid State Relay Surface Mount 1 A Load 60 V Load 0.8V Control ASSR-1530-005E

Broadcom ASSR-1530-005E solid state relay is engineered for reliable switching of loads up to 1 A with a maximum load voltage of 60 V in surface mount form factor. It integrates an infrared LED coupled with a high-speed photovoltaic diode array and driver circuitry, enabling fast and noise-free switching of MOSFET output devices.

This relay provides AC and DC switching capabilities, making it versatile for various industrial and automation applications. Its SPST contact configuration and 8-pin terminal type ensure compatibility with standard PCB layouts.

Designed to operate reliably in a temperature range from -40°C to 85°C, it is well suited for demanding industrial, manufacturing, and process control environments where thermal stability is critical.

The relay exhibits low off-state leakage current of just 1μA and a low capacitance of 0.5pF, contributing to reduced signal interference and improved performance in sensitive circuits.

Compact dimensions of 2 mm height and 9.4 mm length facilitate integration into densely packed electronic assemblies. The product complies with RoHS standards, supporting environmentally friendly manufacturing and disposal practices.

This solid state relay is supplied in tubes, packaged for efficient machine insertion, enabling streamlined assembly processes and enhanced production efficiency. This relay supports both AC and DC switching functions. The relay uses MOSFET output type technology for switching.

It features a single pole single throw contact configuration. Operates within a temperature range of -40°C to 85°C. Low off-state leakage current enhances signal integrity. Dimensions of 2 mm height and 9.4 mm length support compact designs.

Surface mount type featuring an 8-pin terminal design. RoHS compliant for environmental safety. Part of the ASSR-15XX series known for high-speed switching. Supplied in tubes for easy machinery integration.

This product is ideal for applications in industrial automation, control systems, manufacturing processes, and electronic circuitry requiring efficient solid state switching. Browse related Broadcom Solid State Relays and electronic components for comprehensive automation solutions on EnvMart.
