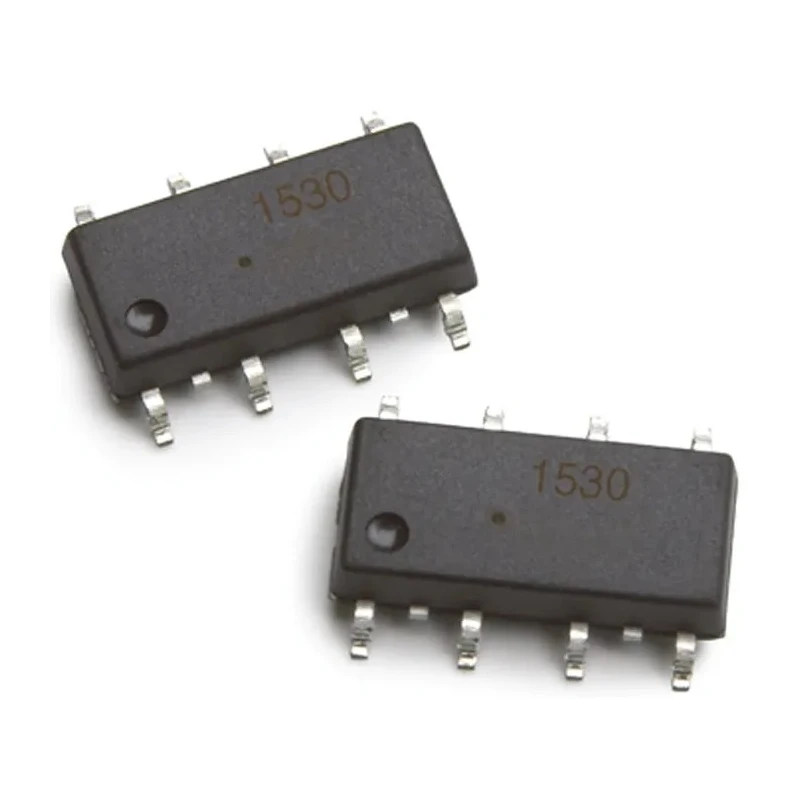

Broadcom ASSR-15XX Series Solid State Relay 1 A Load 60 V Load Surface Mount MOSFET Output ASSR-1530-005E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 2mm |
| Length | 9.4mm |
| Model | ASSR-1530-005E |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | ASSR-15XX |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 0.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | 8-Pin |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 1A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | -60V |
| Minimum Control Voltage | 0V |
| Maximum Control Voltage | 0.8V |
| Off State Leakage Current | 1μA |
Key Features
- Surface mount design for easy PCB integration.
- Utilizes MOSFET output for efficient switching performance.
- Supports maximum operating temperature of 85°C.
- Features a compact form factor with 9.4 mm length and 2 mm height.
- Compliant with RoHS standards ensuring environmental safety.
- Provides low off state leakage current of 1μA for energy efficiency.
- Includes an 8-pin terminal with SPST contact configuration.
- Operates over a wide temperature range from -40°C to 85°C.
Product Description
Broadcom ASSR-1530-005E is a Photo MOSFET Solid State Relay from the ASSR-15XX series designed for precise and reliable switching of loads up to 1 A at 60 V. This solid state relay uses an infrared LED and a high-speed photovoltaic diode driver to switch two discrete high voltage MOSFETs, delivering efficient AC/DC switching suitable for industrial and automation applications.
Its surface mount mount type allows seamless integration into printed circuit boards, facilitating compact and efficient device designs. The relay supports a wide operating temperature range from -40°C to 85°C, guaranteeing dependable operation in varying environmental conditions.
The compact dimensions, 9.4 mm length and 2 mm height, complement various space-constrained applications. The relay features an 8-pin terminal and SPST contact configuration for straightforward wiring and system integration. It has a minimal off state leakage current of 1μA, contributing to low power consumption in standby modes.
Capacitance rated at 0.5pF ensures minimal interference in signal transmission, making it suitable for sensitive electronic environments. Compliance with RoHS standards addresses environmental and safety requirements essential for modern industrial and laboratory electronics.
This Solid State Relay is ideal for use in industrial automation, control systems, manufacturing processes, HVAC controls, and laboratory instrumentation, ensuring enhanced reliability and improved production efficiency. The device’s MOSFET output type provides rapid switching response and longevity compared to mechanical relays.
Surface mount design for compact PCB mounting. Rated for 1 A maximum load current and 60 V maximum load voltage. Low off state leakage current reduces power loss. Wide operating temperature range from -40°C to 85°C. 8-pin terminal configuration with SPST contacts.
Complies with RoHS for environmental safety. Compact size suitable for industrial and automation equipment. MOSFET output enhances switching speed and durability.
Explore the Electronics & Electricals category for a wide range of relays and solid state devices from trusted brands like Broadcom to suit various industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 1 A.
It supports a maximum load voltage of 60 V.
This unit operates over a wide temperature range from -40°C to 85°C.
It utilizes a MOSFET output for efficient switching performance.
The dimensions are 9.4 mm in length and 2 mm in height.
It features an 8-pin terminal with SPST contact configuration.
The off state leakage current is 1μA, contributing to energy efficiency.
Yes, it complies with RoHS standards for environmental safety.
This solid state relay is suitable for industrial automation, control systems, and laboratory instrumentation.
The capacitance is rated at 0.5pF, ensuring minimal interference in signal transmission.
It provides AC/DC switching capabilities, suitable for various applications.
The country of origin for this model is India.
