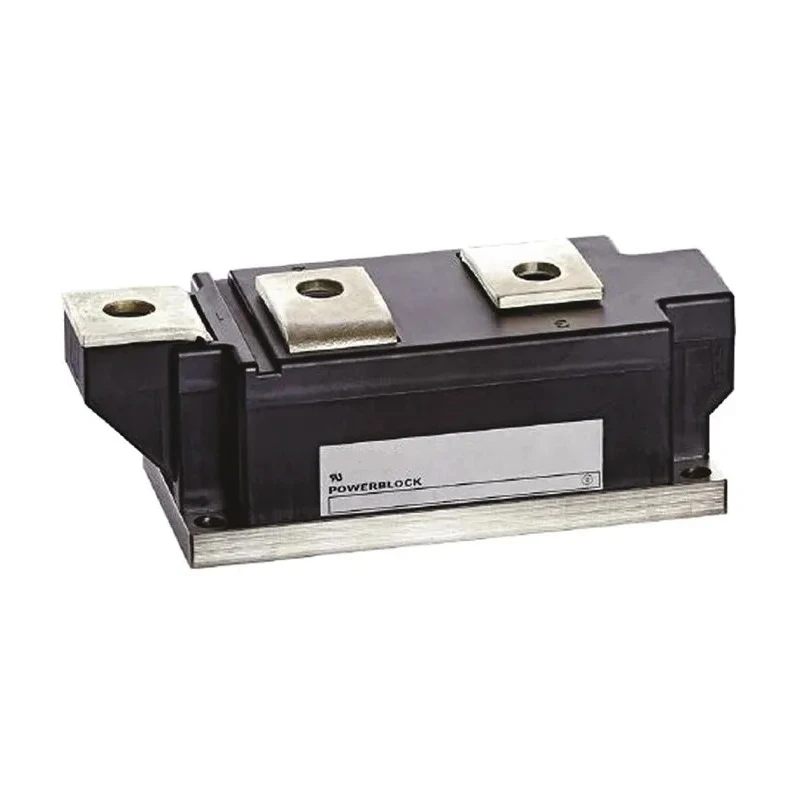

Infineon Thyristor Module 1600 V 14.5 kA Surge Current 471 A On-State Current TT425N16KOFHPSA3

Infineon TT425N16KOFHPSA3 Thyristor Module is a high-performance power component designed for industrial phase control applications. It features a repetitive peak reverse voltage rating of 1600 V and a rated average on-state current of 471 A, capable of handling surge currents up to 14.5 kA. This module utilizes pressure contact technology with an electrically insulated isolated copper base plate, providing reliability and durability in harsh operating conditions.

The device comes with a 7-pin panel mount configuration, ensuring easy integration into power control systems such as low voltage soft starters, power supplies, and electrical drives. With a maximum gate trigger current of 250 mA and a gate trigger voltage of 1.5 V, the module guarantees precise control and consistent triggering. It supports a maximum operating temperature of 125°C allowing it to maintain performance in demanding industrial environments.

Measuring 124 mm in length, 60 mm in width, and 52 mm in height, this robust module is hermetically sealed to protect against high humidity and environmental factors. The maximum holding current of 300 mA and repetitive peak off-state current of 100 mA enhance its stability during operation.

The peak on-state voltage of 1.5 V makes it ideal for phase control applications and power electronics where efficient switching is critical. The TT425N series from Infineon represents trusted power semiconductor solutions engineered for enhancing system reliability and performance.

Designed for industrial applications including manufacturing, power distribution, HVAC, and automation systems. Robust pressure contact design with isolated copper base plate for enhanced electrical insulation and heat dissipation.

Compatible with various phase control operations such as soft starters and power supplies. Hermetically sealed module ensures long-term reliability in humid environments. Compact dimensions facilitate integration into standard electrical panels.

7-Pin configuration supports secure mechanical mounting and electrical connections. Explore more Infineon Thyristor Modules and power electronic components for your industrial and manufacturing needs on EnvMart.
