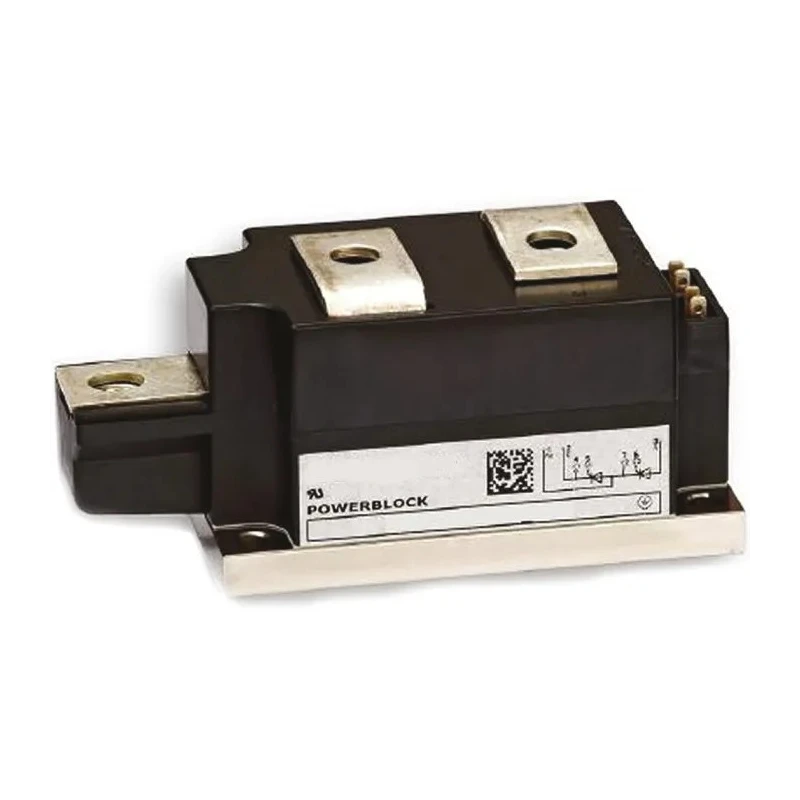

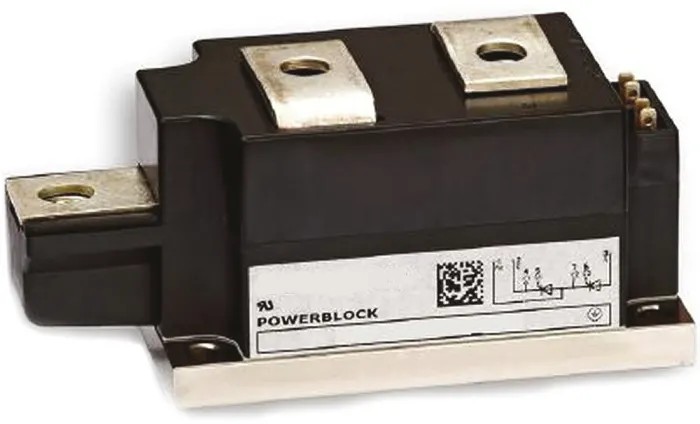

Infineon Thyristor Module Panel Mount 1600 V 9.1 kA Surge 330 A Rated Current 7-Pin TT330N16AOFHPSA1

Infineon TT330N16AOFHPSA1 Thyristor Module, Panel Mount, rated at 1600 V repetitive peak reverse voltage and 330 A average on-state current, is designed for efficient phase control in industrial and power electronics applications. It features a surge current rating of 9.1 kA, making it suitable for transient voltage conditions commonly encountered in power supply and motor control systems.

This 7-pin thyristor module incorporates a robust pressure contact technology and an isolated copper base plate that provides excellent electrical insulation and heat dissipation. The hermetically sealed module construction ensures protection against high humidity and harsh industrial environments.

Operating up to a maximum temperature of 130°C, the device supports reliable operation in demanding applications such as low voltage soft starters, power supplies, and electrical drive controls. Its compact dimensions of 92 mm length, 50 mm width, and 52 mm height facilitate flexible integration.

Additional features include a maximum gate trigger current of 200 mA, a maximum holding current of 300 mA, and a peak on-state voltage of 1.44 V. Although this module does not meet automotive standards, it is well-suited for a variety of industrial phase control uses.

Surge current rating of 9.1 kA for high transient robustness. 7-pin configuration for panel mounting applications. Pressure contact technology ensures stable electrical connection. Isolated copper base plate provides electrical insulation and heat dissipation.

Hermetically sealed for high-humidity environmental protection. Operates reliably up to 130°C maximum temperature. Compact physical dimensions simplify installation. Excellent for use in power supplies, soft starters, and electrical drives.

This Thyristor Module is part of Infineon's TT330N series and benefits from rigorous industrial standards ensuring long-term performance and reliability. Explore more high-quality semiconductor modules at EnvMart for your industrial automation and power electronics projects.
