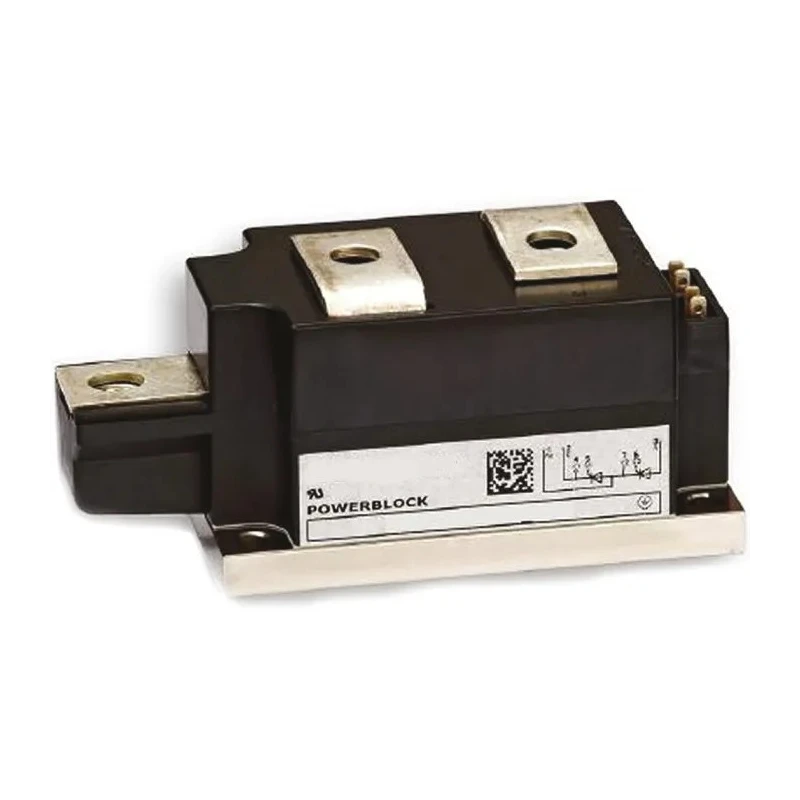

Infineon Thyristor Module Panel Mount 1600 V 9.1 kA Surge Current 250 A On-State Current 200 mA Gate TT251N16KOFHPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 52mm |
| Length | 92mm |
| Model | TT251N16KOFHPSA1 |
| Width | 50mm |
| Mount Type | Panel |
| Series | TT251N |
| Maximum Operating Temperature | 125°C |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 250A |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 9.1kA |
| Maximum Gate Trigger Current Igt | 200mA |
| Maximum Holding Current Ih | 300mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.4V |
| Repetitive Peak Off-State Current | 50mA |
| Infineon TT170N16KOFHPSA1, Thyristor Module 1600V, 170A 200mABrand | Infineon |
Key Features
- This thyristor module features a robust panel mount design for secure installation.
- It supports a high repetitive peak reverse voltage of 1600 volts.
- The surge current rating is 9.1 kiloamperes, suitable for industrial applications.
- The module operates with a rated average on-state current of 250 amperes.
- Maximum gate trigger current is 200 milliamperes, with a maximum gate trigger voltage of 2 volts.
- It includes 7 pins for electrical connections.
- The operating temperature reaches up to 125 degrees Celsius for high performance.
- The module utilizes pressure contact technology and an isolated copper base plate for electrical insulation.
Product Description
Infineon TT251N16KOFHPSA1 Thyristor Module is a high-performance power semiconductor designed for industrial phase control applications. Featuring a panel mount type construction, it provides stable and robust mounting suitable for use in electrical drives, low voltage soft starters, and power supplies.
The device has a repetitive peak reverse voltage rating of 1600 volts and can withstand surge currents up to 9.1 kiloamperes, making it capable of handling demanding transient conditions. This model supports a rated average on-state current of 250 amperes, ensuring reliable conduction in power circuits.
The module's gate characteristics include a maximum gate trigger current of 200 milliamperes and a maximum holding current of 300 milliamperes, with a peak on-state voltage drop of 1.4 volts. Operating temperatures can reach up to 125°C, allowing it to function reliably under harsh industrial environments.
Construction incorporates pressure contact technology and an isolated copper base plate that provides electrical insulation and efficient heat dissipation. The hermetically sealed module housing protects it from high humidity and environmental influences.
With dimensions of 92 mm length, 52 mm height, and 50 mm width, this 7-pin Thyristor Module is designed for ease of integration in power electronic assemblies. It does not conform to automotive standards but is excellent for industrial and commercial power control applications.
Robust panel mounting for secure installation. High voltage and surge current ratings for industrial use. Pressure contact technology for enhanced electrical performance. Electrically insulated isolated copper base plate.
Hermetically sealed housing for environmental protection. Compact dimensions to fit standard industrial modules. Suitable for phase control in power supplies and electrical drives. Explore more power semiconductor devices and modules from Infineon within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this thyristor module is 125°C.
This model has a surge current rating of 9.1 kiloamperes.
The rated average on-state current for this module is 250 amperes.
It includes 7 pins for electrical connections.
The repetitive peak reverse voltage rating is 1600 volts.
The maximum gate trigger current is 200 milliamperes.
The dimensions of this module are 92 mm in length, 52 mm in height, and 50 mm in width.
This thyristor module features a panel mount design for secure installation.
The peak on-state voltage drop is 1.4 volts.
This module is designed for industrial phase control applications, such as electrical drives and power supplies.
It utilizes pressure contact technology for enhanced electrical performance and an isolated copper base plate for electrical insulation.
Yes, the module features a hermetically sealed housing to protect it from high humidity and environmental influences.
