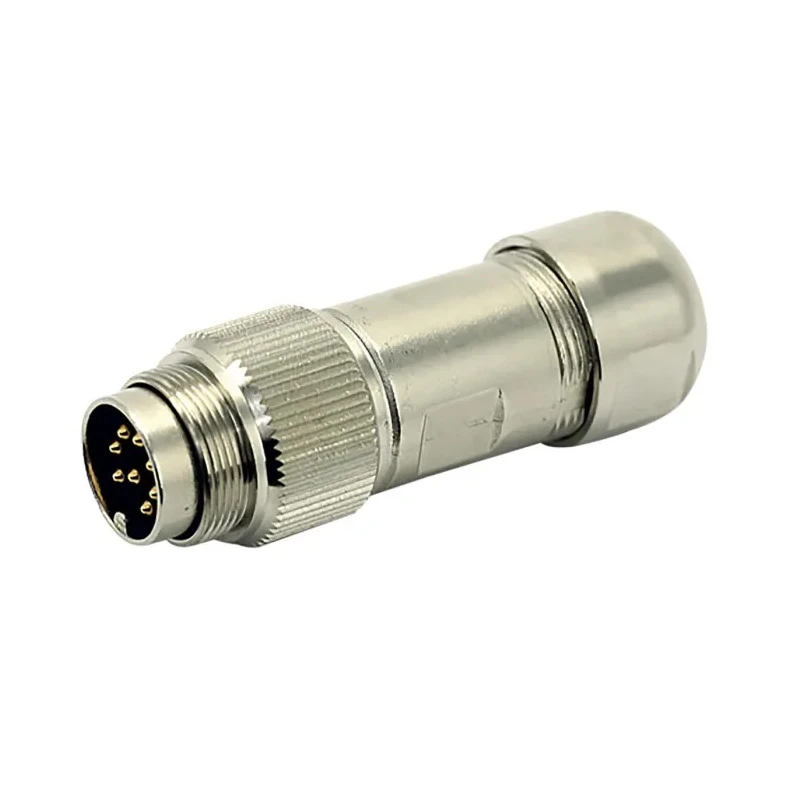

Amphenol Industrial DIN Socket 7 Pole Straight M16 Cable Mount, Screw Coupling, 7A, 100V, IP68 Rated C091 31D107 102 4 U
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 7A |
| Model | C091 31D107 102 4 U |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Die Cast Zinc |
| Series | C 091 D |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Pole Format | 7 |
| Contact Plating | Silver |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Screw Coupling |
| Connector Size | M16 |
| DIN Number | DIN EN 61076-2-106 |
Key Features
- This connector features 7 female contacts supporting up to 7A current capacity.
- It is designed for cable mounting with a straight orientation and a screw coupling mating type.
- The housing is constructed from durable die cast zinc material, ensuring long-lasting mechanical protection.
- The connector supports a voltage rating of 100V and meets DIN EN 61076-2-106 standard.
- Silver contact plating improves conductivity and corrosion resistance.
- It is shielded with 360 degree EMI protection for stable signal transmission.
- Operating temperature ranges from -40°C to 100°C, suitable for harsh environments.
- IP68 ingress protection guarantees resistance to dust and water immersion.
Product Description
Amphenol Industrial C091 31D107 102 4 U is a 7 pole straight DIN socket connector designed for cable mount applications. It provides robust and reliable electrical connections in challenging industrial environments and complies with DIN EN 61076-2-106.
The connector has a die cast zinc housing that offers excellent mechanical strength and durability. Silver plated contacts ensure optimal conductivity and long service life. Its screw coupling mating type provides secure locking, reducing the risk of accidental disconnections.
Rated at 7A current and 100V voltage, this connector is suitable for a wide variety of industrial automation, instrumentation, robotic, medical, and energy generation system applications.
With an IP68 ingress protection rating, the connector is fully dust tight and protected against prolonged water immersion, making it ideal for harsh and outdoor usage.
Additional features include internal strain relief, shielding for EMI protection, and solder termination for stable wire attachment. It operates reliably within a temperature range from -40°C up to 100°C.
This connector features 7 female contacts supporting up to 7A current capacity. Designed for cable mount with a straight orientation and screw coupling locking. Durable die cast zinc housing for industrial environments. Rated for 100V voltage and complies with DIN EN 61076-2-106 standards.
Silver plated contacts enhance electrical performance and corrosion resistance. Protected against dust and water with IP68 ingress protection. Shielded for 360 degree EMI protection. Suitable for industrial, laboratory, automation, medical, robotics, and energy sectors.
Internal strain relief and solder termination ensure secure connections. It is a high-quality industrial circular DIN connector, perfectly suited for demanding electrical connectivity requirements. Explore more DIN connectors and industrial electrical components at EnvMart for your next project needs.
Explore more products in our Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 7A and a voltage rating of 100V.
This connector is designed for cable mounting with a straight orientation.
The housing is made from die cast zinc, providing mechanical strength and durability, while the contacts are silver plated for improved conductivity.
It operates reliably within a temperature range from -40°C to 100°C.
This model features 7 female contacts.
It uses solder termination for stable wire attachment.
It complies with the DIN EN 61076-2-106 standard.
It utilizes a screw coupling mating type for secure locking.
It is shielded with 360 degree EMI protection for stable signal transmission.
It is suitable for industrial automation, instrumentation, robotics, medical, and energy generation system applications.
The connector size is M16.
