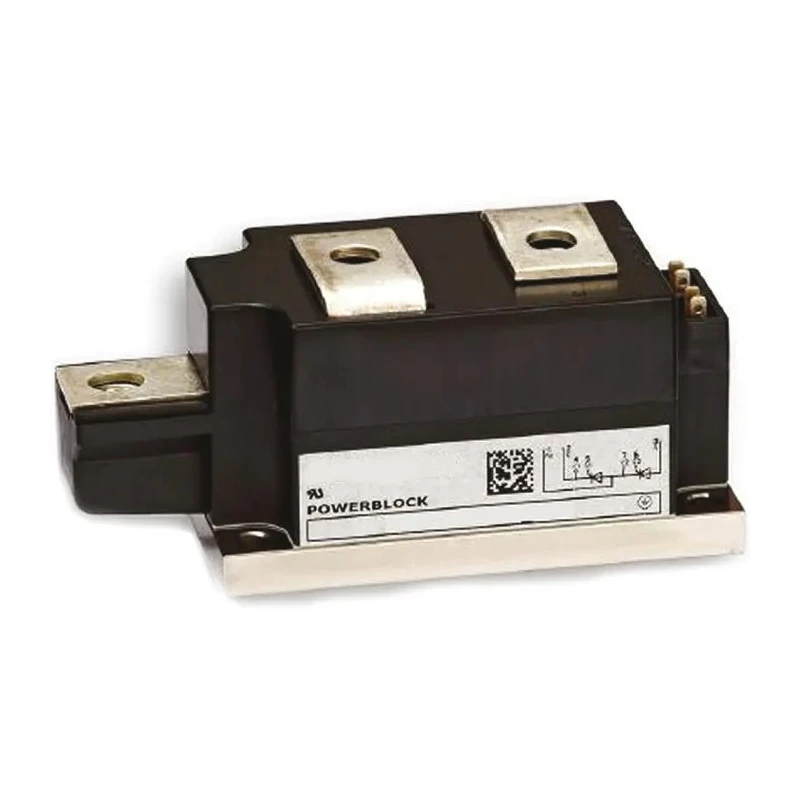

Infineon Diode/Thyristor Module SCR 1600 V 9.1 kA 330 A 200 mA 1.44 V 5-Pin TD330N16AOFHPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 52mm |
| Length | 92mm |
| Model | TD330N16AOFHPSA1 |
| Width | 50mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 130°C |
| Pin Count | 5 |
| Rated Average On-State Current Irms | 330A |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 9.1kA |
| Maximum Gate Trigger Current Igt | 200mA |
| Maximum Holding Current Ih | 300mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.44V |
| Repetitive Peak Off-State Current | 70mA |
Key Features
- Module uses pressure contact technology with electrically insulated copper base plate for reliable operation.
- Designed for panel mounting and industrial standard package with 5-pin configuration.
- Maximum gate trigger current and voltage ratings are 200 mA and 2 V respectively.
- Operates safely up to 130°C maximum operating temperature.
- Peak on-state voltage is specified at 1.44 V ensuring efficient conduction.
- Maximum holding current is 300 mA and repetitive peak off-state current is 70 mA.
- Ideal for use in soft starters, power controllers, and rectifier drive applications.
- Non-automotive standard component with no specific certifications.
Product Description
Infineon TD330N16AOFHPSA1 Diode/Thyristor Module SCR is engineered for industrial phase control applications, providing robust and reliable switching performance with a 1600 V repetitive peak reverse voltage and a high surge current rating of 9.1 kA.
This module features pressure contact technology combined with an electrically insulated copper base plate that facilitates superior thermal management and mechanical stability. The standardized panel mount design with a 5-pin configuration enhances ease of integration in electronic power control assemblies.
With a rated average on-state current of 330 A and peak on-state voltage of 1.44 V, it achieves efficient conduction suitable for high-power switching. The maximum gate trigger current of 200 mA and voltage of 2 V ensure precise triggering under varied operating conditions.
Physical dimensions of 92 mm length, 50 mm width, and 52 mm height accommodate compact setups, while the module supports a maximum operating temperature of 130°C, ensuring durability in demanding industrial environments.
Typical applications include soft starters, power controllers, and rectifier drives in industrial automation and manufacturing systems. This module does not carry automotive certification but aligns with industrial electrical semiconductor standards.
Utilizes pressure contact technology and insulated copper base plate for optimal performance. Panel mount with industrial standard package for versatile installation. High surge current rating of 9.1 kA suitable for demanding power cycles.
Precise gate triggering with 200 mA current and 2 V voltage maximums. Robust operation supported up to 130°C operating temperature. Compact size with detailed dimensions and 5-pin connectivity. Peak on-state voltage of 1.44 V enables energy-efficient conduction.
Designed for use in power and drive control applications industrially. Explore more electronic components and semiconductor modules compatible for your industrial and electronic design projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage of this module is 1600 V.
This model has a rated average on-state current of 330 A.
The surge current rating for this module is 9.1 kA.
The dimensions of this unit are 92 mm in length, 50 mm in width, and 52 mm in height.
It operates safely at a maximum temperature of 130°C.
The peak on-state voltage is specified at 1.44 V.
This module features a 5-pin configuration.
The maximum gate trigger current is 200 mA.
This module is designed for use in soft starters, power controllers, and rectifier drive applications.
The maximum holding current is 300 mA.
It is designed for panel mounting.
The maximum gate trigger voltage is 2 V.
