Texas Instruments Voltage Level Shifter Bus Transceiver LVC Bi-Directional 1.65 to 3.6V 6-Pin SOT-23 SN74LVC1T45DBVR

Texas Instruments SN74LVC1T45DBVR is a highly reliable voltage level shifter bus transceiver designed for translating signals between different voltage levels in electronic circuits. It belongs to the 74LVC family of low-voltage CMOS logic ICs, which utilize silicon gate CMOS technology to reduce power consumption significantly compared to traditional 5V logic systems.

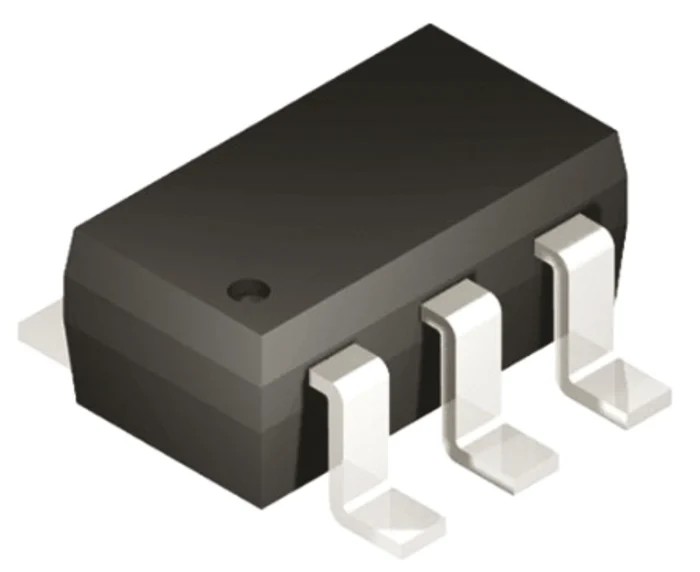

This device offers bi-directional voltage level shifting capability with an operating voltage range from 1.65 to 3.6 volts, extending tolerance to inputs up to 5.5 volts. The 6-pin SOT-23 surface mount package facilitates compact and efficient PCB design, suitable for high-density applications.

The SN74LVC1T45DBVR features a maximum propagation delay time of 4.4 nanoseconds at typical load conditions, enabling fast signal communication required in sophisticated electronics and instrumentation.

Designed to be compatible with input LVTTL/TTL logic levels and outputting standard LVCMOS levels, the device supports a 3-state output that allows for multiple devices to share a common bus line effectively. It handles a maximum low-level output current of 32 mA, ensuring strong drive capability, with symmetrical current capability for high-level drive as well.

It functions reliably over a wide temperature range from -40 degrees Celsius to 85 degrees Celsius, making it suitable for industrial, laboratory, automotive, and commercial electronics applications.

The component's physical dimensions, including a height of 1.75 mm and a length of 3.05 mm, support miniaturization efforts in modern electronics design without sacrificing performance or reliability.

Applications include interfacing in embedded systems, level translation in mixed-voltage circuits, signal conditioning, and bus management in communication and control systems. Supports bi-directional voltage level shifting for safe interfacing between different voltage systems.

Operates with a minimum supply voltage of 1.65V and a maximum of 5.5V tolerance. Compact 6-pin SOT-23 surface-mounted package for efficient PCB layouts. Maximum propagation delay of 4.4 nanoseconds at specified load capacitance.

Compatible with input LVTTL/TTL logic and outputs LVCMOS levels. Supports 3-state output for effective bus control. Operating temperature range from -40°C to 85°C for reliability in diverse environments. Low power consumption due to advanced low-voltage CMOS technology.

Height of 1.75 mm and length of 3.05 mm ensures minimal board space usage. Electrical characteristics include maximum low-level output current of 32 mA and maximum high-level output current of -32 mA. Discover more semiconductor and logic IC solutions suitable for industrial, laboratory, electronics manufacturing, and commercial applications on EnvMart.
