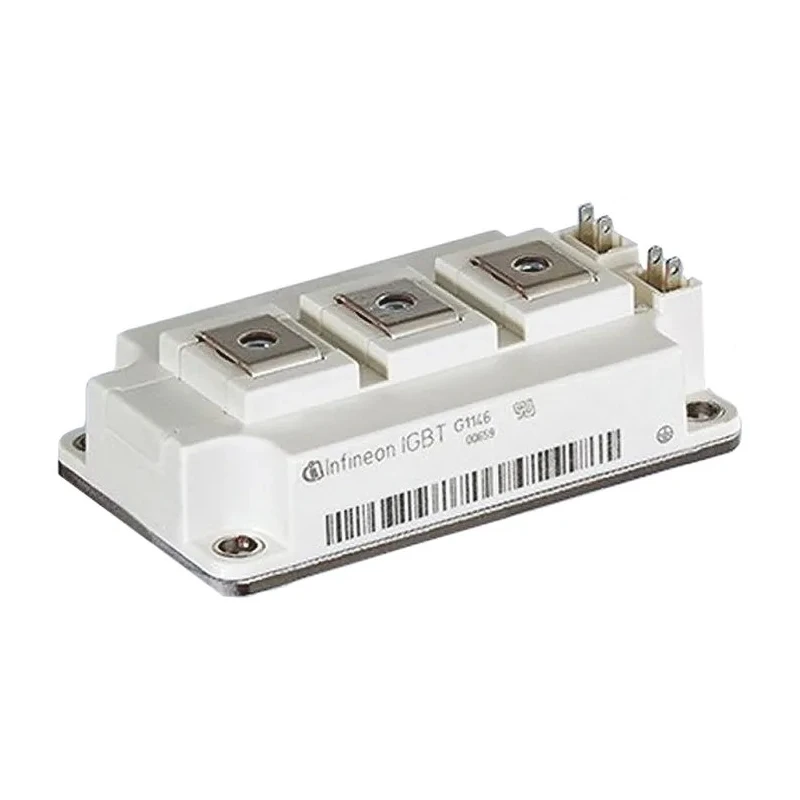

Infineon N-Channel IGBT Module 295 A 1.2 kV 7-Pin 62 mm Surface Mount FF200R12KE3HOSA1

The Infineon FF200R12KE3HOSA1 is a high-performance N-Channel Insulated Gate Bipolar Transistor (IGBT) Module engineered for demanding power switching applications. With a maximum continuous collector current of 295 A and a collector-emitter voltage rating of 1.2 kV, this 7-pin, 62 mm surface mount module ensures reliable operation and efficient power management.

Featuring a maximum power dissipation of 1.05 kW, the module supports high power loads while minimizing losses. It operates safely across a wide temperature range from -40°C to 125°C and possesses a low collector-emitter saturation voltage of 2.15 V, which reduces conduction losses and enhances overall efficiency.

The device supports switching speeds up to 1 MHz, making it suitable for a variety of industrial applications such as inverters, uninterruptible power supplies (UPS), and industrial motor drives. Infineon's trenchstop transistor technology enhances switching performance and durability.

This IGBT module is designed to withstand mounting on surfaces with its surface mount package and is a part of the FF200R12KE3 series. Its compact dimensions (106.4 mm length, 61.4 mm width, and 29 mm height) facilitate integration into power electronics assemblies.

Typical applications span industrial, commercial, construction, and agricultural vehicle power electronics, where efficient power switching and control are critical. This module features a 7-pin surface mount design optimized for low switching losses.

Trenchstop technology enables high frequency switching efficiency up to 60 kHz and beyond. Robust construction suited for harsh environmental conditions with a wide operating temperature range. Provides a reliable building block for inverter circuits, UPS systems, and industrial motor drives.

Compatible with multiple package styles including EasyPACK and EconoPACK variants within the series. Explore more IGBT Modules from Infineon and enhance your electronics design with EnvMart’s wide range of semiconductor components.
