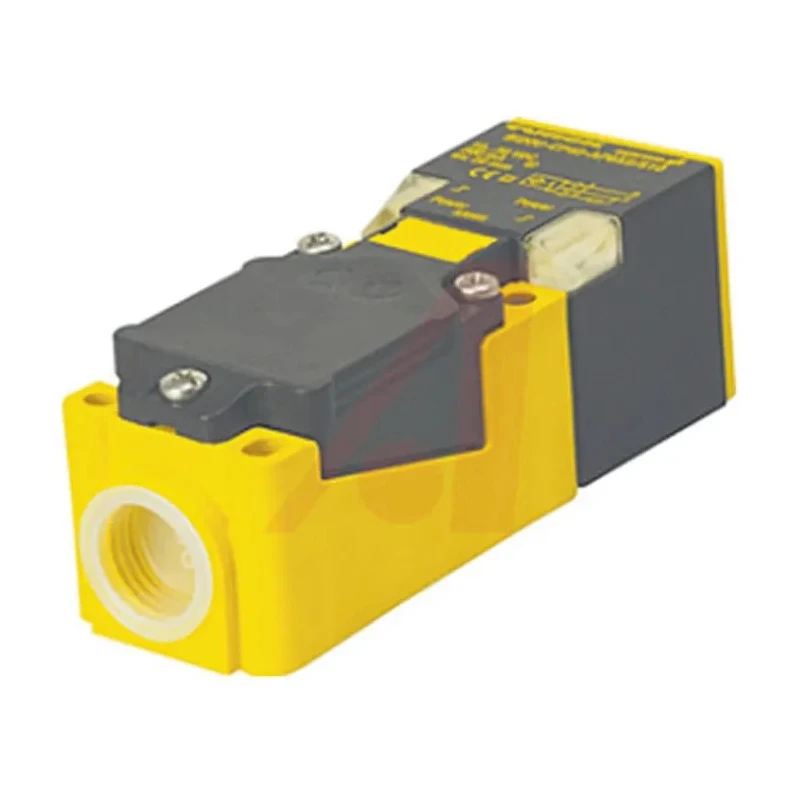

Turck Block Inductive Proximity Sensor M12 PNP 65 V DC 200 mA 15 mm Detection BI15U-CP40-VP4X2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Turck |
| Length | 114mm |
| Model | BI15U-CP40-VP4X2 |
| Depth | 40mm |
| IP Rating | IP68 |
| Width | 40mm |
| Mount Type | Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP |
| Series | CP40 |
| Maximum Operating Temperature | 85°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -30°C |
| Switching Current | 200mA |
| Terminal type | Terminal Chamber |
| Body Style | Block |
| Maximum dc Voltage | 65V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 250Hz |
| Maximum Supply Voltage | 65V |
| Materials Detected | Inductive |
| Maximum Detection | 15mm |
Key Features
- The sensor features an M12 thread size and is designed with a block body style for flush mounting.
- Constructed from Polybutylene Terephthalate housing material resistant to industrial environments.
- It supports an operating temperature range from -30°C to 85°C for versatile industrial usage.
- Provides unshielded inductive sensing with PNP output type and a maximum switching frequency of 250 Hz.
- The device is IP68 rated, ensuring protection against dust and water ingress in harsh conditions.
- Ideal for automation applications in manufacturing, packaging, and process control industries.
- The terminal chamber type terminal ensures secure electrical connections during installation.
Product Description
Turck BI15U-CP40-VP4X2 block Inductive Proximity Sensor is designed for industrial automation and control applications requiring contact-free object detection. With a maximum detection distance of 15 mm, a robust M12 threaded block body, and a durable Polybutylene Terephthalate housing, this sensor provides reliable operation even in demanding environments. The sensor operates at a supply voltage of up to 65 V DC and supports a switching current of 200 mA with PNP output, ensuring compatibility with diverse control systems.
It features an IP68 rating, offering excellent resistance to dust and water ingress, making it suitable for use in wet or dusty industrial settings. The sensor is flush mounted, with an unshielded sensing configuration allowing detection of inductive materials with high precision. Its ambient operating temperature range from -30°C to 85°C enables deployment in temperature-variable environments.
This sensor is optimized for use in automation sectors such as manufacturing lines, packaging systems, and process control where fast, reliable sensing is crucial. The maximum switching frequency of 250 Hz allows for quick response to moving targets, enhancing system efficiency.
Application benefits include wear-free and contact-less detection, resistance to cleaning agents and disinfectants, and high reliability under mechanical stress and temperature fluctuations.
The sensor body is compact with dimensions length 114 mm, width 40 mm, and depth 40 mm, facilitating installation in tight spaces. The terminal chamber terminals provide secure and stable electrical connections for industrial integration.
The CP40 series denotes the advanced uprox+ technology for extended sensing distances and temperature tolerance. This sensor meets no specific approvals or standards but fulfills industrial-grade performance requirements.
Its shielding is unshielded, suitable for detecting ferrous materials at specified range.
Overall, the Turck BI15U-CP40-VP4X2 sensor offers a combination of durability, precision, and ease of installation for comprehensive proximity sensing in industrial automation and control systems.
Explore more sensors and automation control products on EnvMart to enhance your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this sensor is 15 mm.
It operates within a temperature range of -30°C to 85°C.
This model features a PNP output type.
The sensor has an IP68 rating, providing protection against dust and water ingress.
The maximum switching frequency is 250 Hz.
It supports a maximum supply voltage of 65 V DC.
This sensor is designed to detect inductive materials.
The sensor has dimensions of 114 mm in length, 40 mm in width, and 40 mm in depth.
It is constructed from Polybutylene Terephthalate housing material.
This model features a terminal chamber type terminal for secure connections.
It is designed for flush mounting.
This sensor is ideal for automation applications in manufacturing, packaging, and process control industries.
