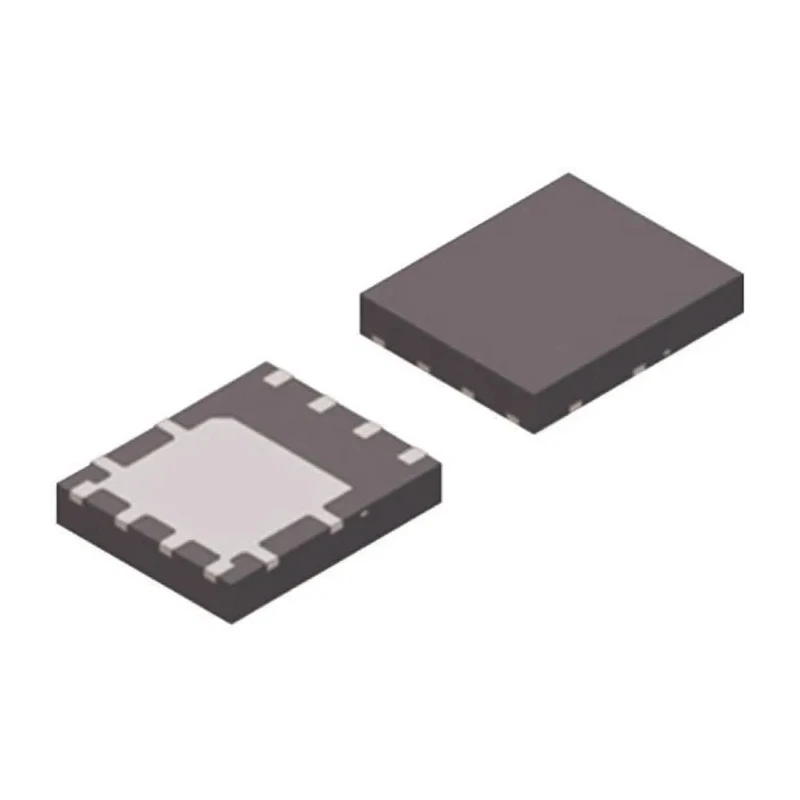

STMicroelectronics 170 V 8 A Schottky Diode Surface Mount PowerFLAT 8-Pin STPS8170DEE-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 3.4mm |
| Model | STPS8170DEE-TR |
| Width | 3.4mm |
| Mount Type | Surface |
| Series | STPS8170DEE |
| Maximum Operating Temperature | 175°C |
| Package Type | PowerFLAT |
| Minimum Operating Temperature | -65°C |
| Pin Count | 8 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 170V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 900mV |
Key Features
- Designed for high efficiency with a maximum forward voltage of 900 mV.
- Supports maximum continuous forward current of 8 A for reliable power handling.
- Features an 8-pin PowerFLAT package suited for surface mounting.
- Operates across a temperature range from -65°C to 175°C for robust industrial use.
- Peak repetitive reverse voltage of 170 V supports demanding circuit conditions.
- Peak non-repetitive forward surge current rating of 100 A allows for transient tolerance.
- Compact dimensions of 3.4 mm length, 3.4 mm width, and 1.05 mm height optimize PCB space.
- Single diode configuration and Schottky rectifier type ensure fast switching performance.
Product Description
STMicroelectronics STPS8170DEE-TR is a high-performance Schottky diode designed for power electronics applications requiring efficient rectification and low forward voltage drop. Packaged in a surface mount PowerFLAT 8-pin form factor, this diode caters to modern PCB designs where compactness and thermal management are crucial.
With a maximum continuous forward current of 8 A and peak repetitive reverse voltage rated at 170 V, the diode is well suited for power supply circuits, DC-DC converters, and freewheeling in motor drives. The maximum forward voltage of 900 mV guarantees energy-efficient operation, reducing heat dissipation.
The diode operates reliably within a wide temperature range of -65°C to 175°C, addressing industrial, automotive, and commercial environmental requirements. Its peak non-repetitive forward surge current rating of 100 A enables tolerance to sudden transient currents, enhancing circuit robustness.
The compact dimensions of 3.4 mm length, 3.4 mm width, and 1.05 mm height make it an ideal choice for densely packed electronic assemblies. As a single diode configuration Schottky rectifier, it provides fast switching with low reverse recovery time, improving overall system efficiency.
Designed for high efficiency with a maximum forward voltage of 900 mV. Supports maximum continuous forward current of 8 A for reliable power handling. Features an 8-pin PowerFLAT package suited for surface mounting. Operates across a temperature range from -65°C to 175°C for robust industrial use.
Peak repetitive reverse voltage of 170 V supports demanding circuit conditions. Peak non-repetitive forward surge current rating of 100 A allows for transient tolerance. Compact dimensions optimize PCB layout efficiency.
Single diode and Schottky rectifier type optimize performance and reduce losses.
This diode finds wide usage in industrial power electronics, consumer electronics, automotive circuits, and telecommunications equipment where efficient switching and compact packaging are essential. Engineers and designers can rely on STMicroelectronics' diode for high reliability and consistent performance in demanding environments.
Explore STMicroelectronics products and Schottky diode offerings on EnvMart for comprehensive industrial-grade semiconductor components.
Explore more products in our Schottky Diodes & Rectifiers category.
