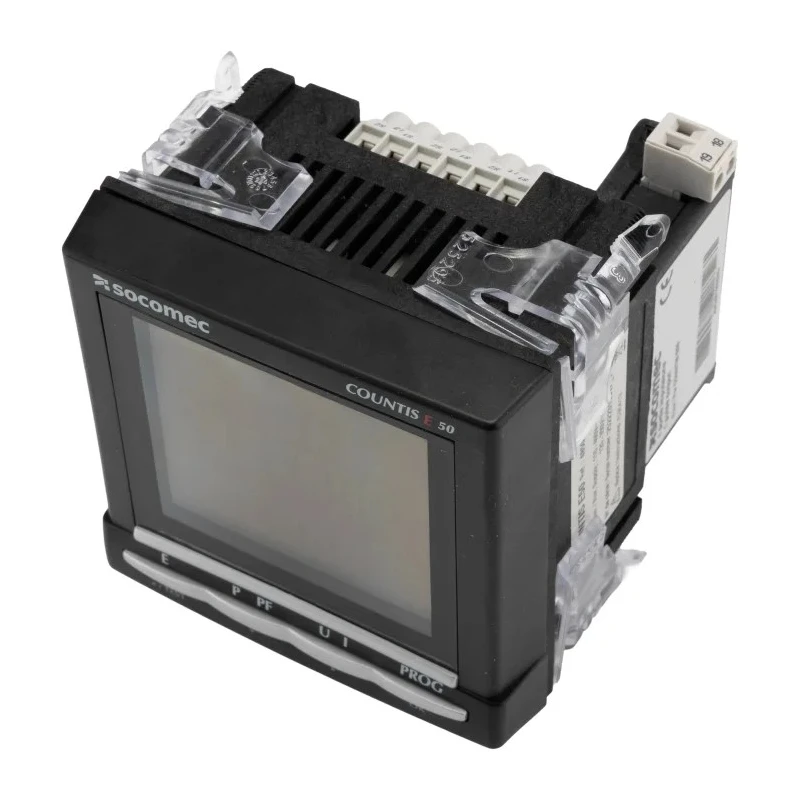

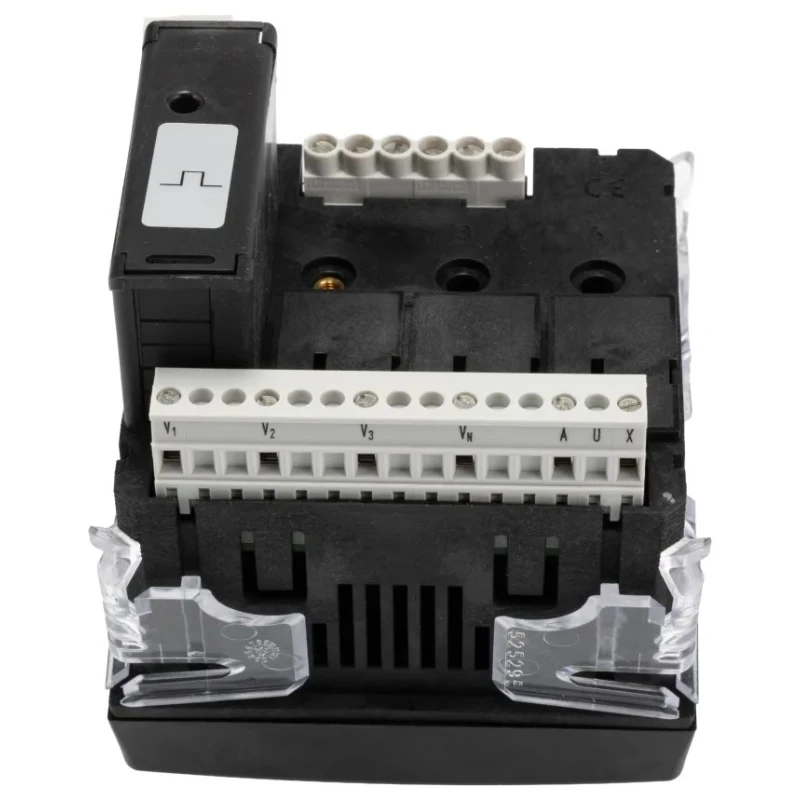

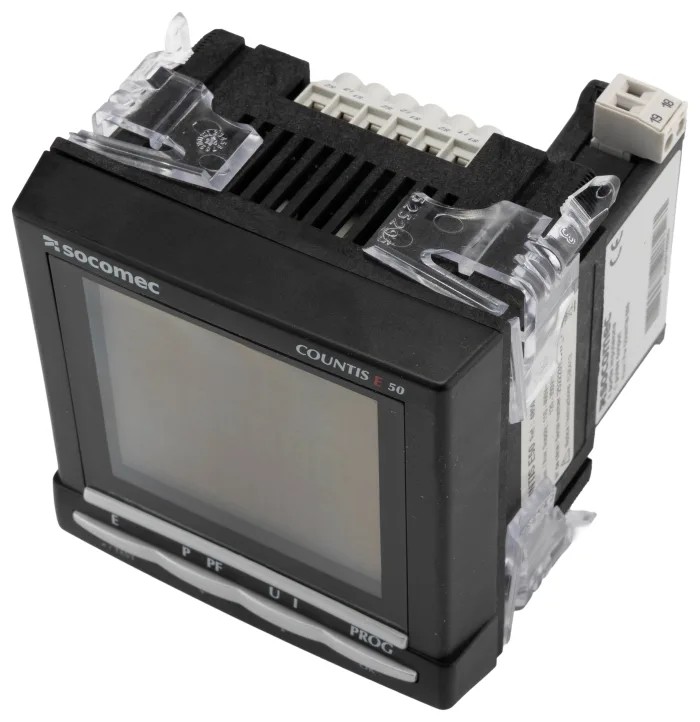

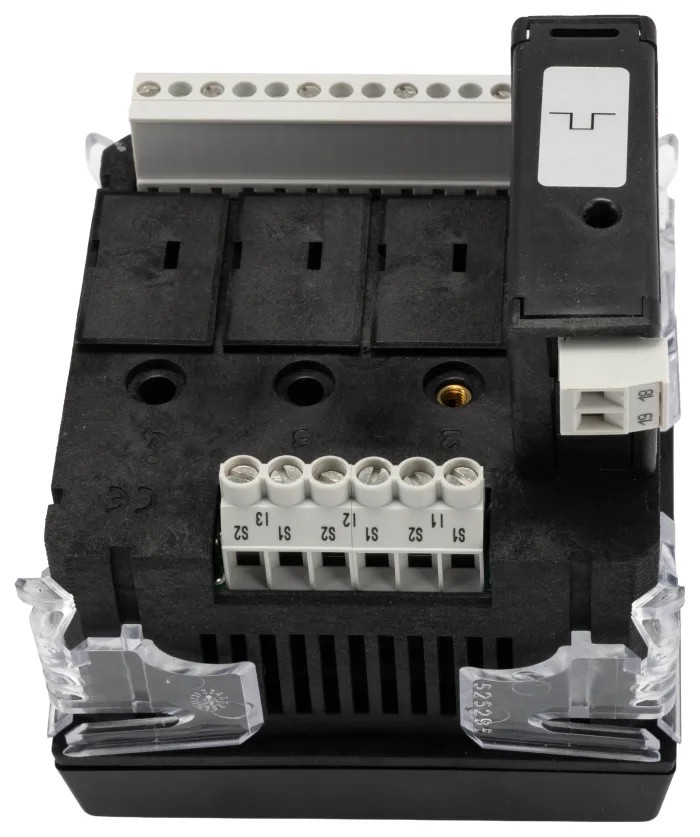

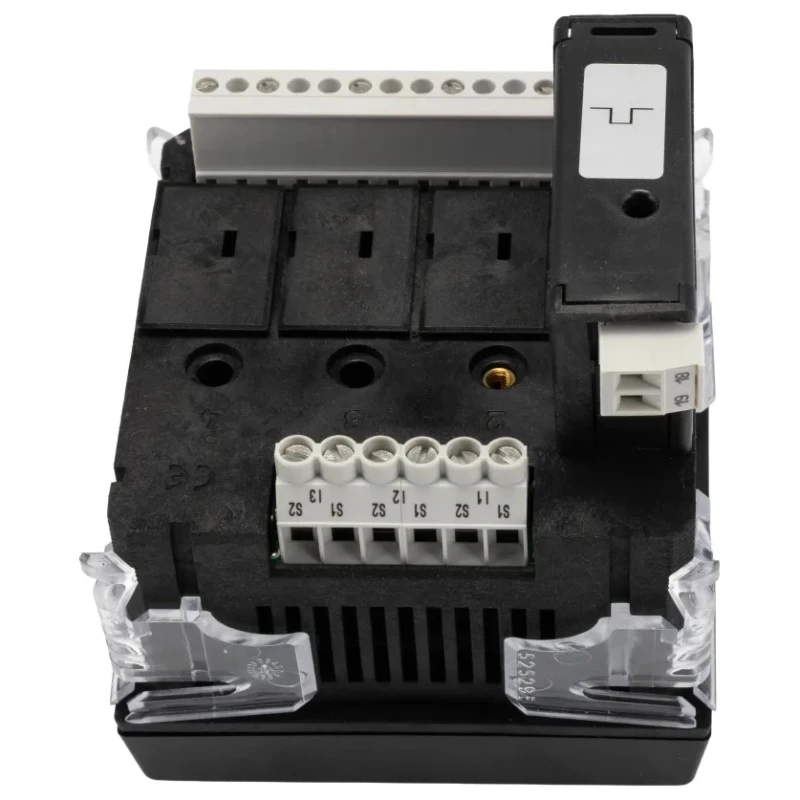

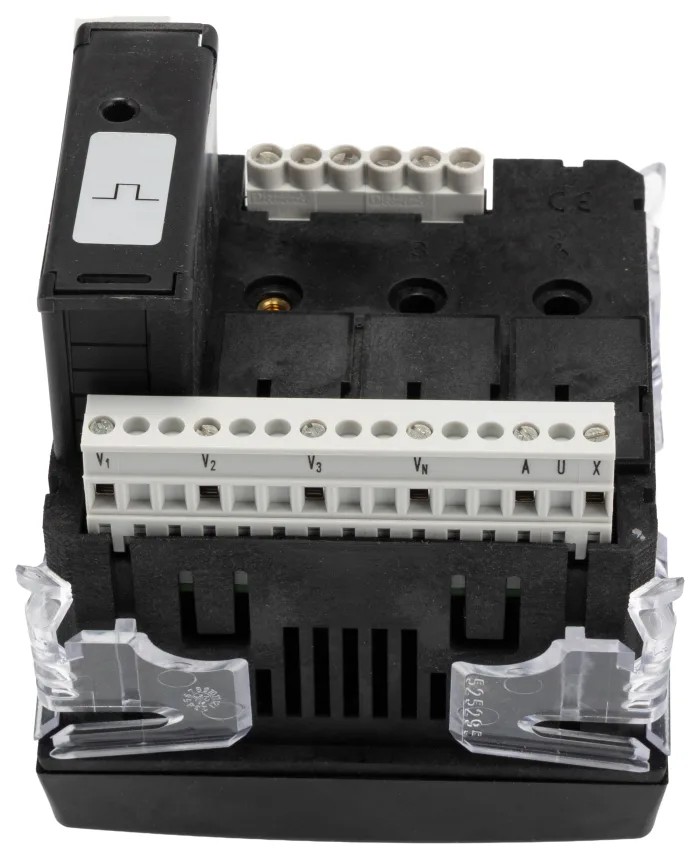

Socomec Countis E50 3 Phase Energy Meter LCD Display 4850 3010
Specifications
| Country of Origin | France |
|---|---|
| Display Type | LCD |
| Brand | Socomec |
| Depth | 80mm |
| Number of inputs | 4 |
| Series | Countis E50 |
| Meter Type | Energy Meter |
| Minimum Operating Temperature | -10°C |
| Digit height | 85mm |
| Number of Phases | 3 |
| Standards/Approvals | IEC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 709-9707Brand: SocomecManufacturers Part No.: 4850 3010 |
| Cutout Height | 92mm |
| Cutout Width | 92mm |
| Maximum Measurement | 6000 A |
Key Features
- Measures voltage, current, active, reactive and apparent power with high accuracy.
- Operating voltage range from 86VAC to 520VAC and current from 3mA to 6A.
- Includes pulse output for easy interface with energy management systems.
- Resettable partial power meters for periodic energy tracking.
- Backlit LCD for ease of viewing in low light conditions.
- User-configurable CT ratio for flexible installation.
- Compact panel mount with 92mm x 92mm cutout and 80mm depth.
- Certified to IEC 61557-12, IEC 62053-21 class 1 and IEC 62053-23 class 2 standards.
Product Description
Socomec 4850 3010 Countis E50 3 Phase Energy Meter with LCD display is a digital power meter designed to measure various electrical parameters including voltage, current, active power, reactive power, apparent power and power factor. It operates within a voltage range of 86VAC to 520VAC and current measurement capabilities from 3mA up to 6A, making it suitable for precise energy monitoring.
This energy meter features a panel mount form factor with cutout dimensions of 92mm height and 92mm width, and a depth of 80mm, ideal for integration into electrical panels. The device is equipped with a pulse output and includes two resettable partial meters allowing energy consumption to be monitored over specific periods. The backlit LCD display ensures clear, direct readings in kWh and other parameters.
The CT ratio can be easily configured by the user via the meter's keypad and display screen, adding flexibility to accommodate different current transformer setups. It operates on a supply voltage range between 110VAC and 400VAC, ensuring versatility across different electrical systems.
Compliant with international standards including IEC 61557-12, IEC 62053-21 class 1, and IEC 62053-23 class 2, this energy meter guarantees reliability and accuracy for industrial, laboratory, construction, HVAC, manufacturing, and electrical automation applications.
Measures voltage, current, active, reactive and apparent power with high accuracy. Operating voltage range from 86VAC to 520VAC and current from 3mA to 6A. Includes pulse output for easy interface with energy management systems.
Resettable partial power meters for periodic energy tracking. Backlit LCD for ease of viewing in low light conditions. User-configurable CT ratio for flexible installation. Compact panel mount with 92mm x 92mm cutout and 80mm depth.
Certified to IEC 61557-12, IEC 62053-21 class 1 and IEC 62053-23 class 2 standards.
This Socomec energy meter is ideal for precise energy measurement in commercial, industrial automation, and process control systems. It provides reliable data essential for energy management, billing, and monitoring electrical efficiency. It is a critical component for electrical distribution panels requiring accurate power and energy usage measurement.
Explore further options for Energy Meters and related automation and control gear within the EnvMart catalogue for enhanced electrical system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a voltage range of 86VAC to 520VAC.
This model can measure current from 3mA up to 6A.
It measures active power, reactive power, apparent power, and power factor.
It has a cutout size of 92mm x 92mm and a depth of 80mm.
It features a backlit LCD display for clear readings in various lighting conditions.
Yes, the CT ratio is user-configurable, allowing flexibility for different installations.
It is certified to IEC 61557-12, IEC 62053-21 class 1, and IEC 62053-23 class 2 standards.
This unit supports three phases.
The minimum operating temperature is -10°C.
Yes, it includes a pulse output for easy interfacing with energy management systems.
It can measure currents up to a maximum of 6000 A.
It is suitable for industrial, laboratory, construction, HVAC, manufacturing, and electrical automation applications.
