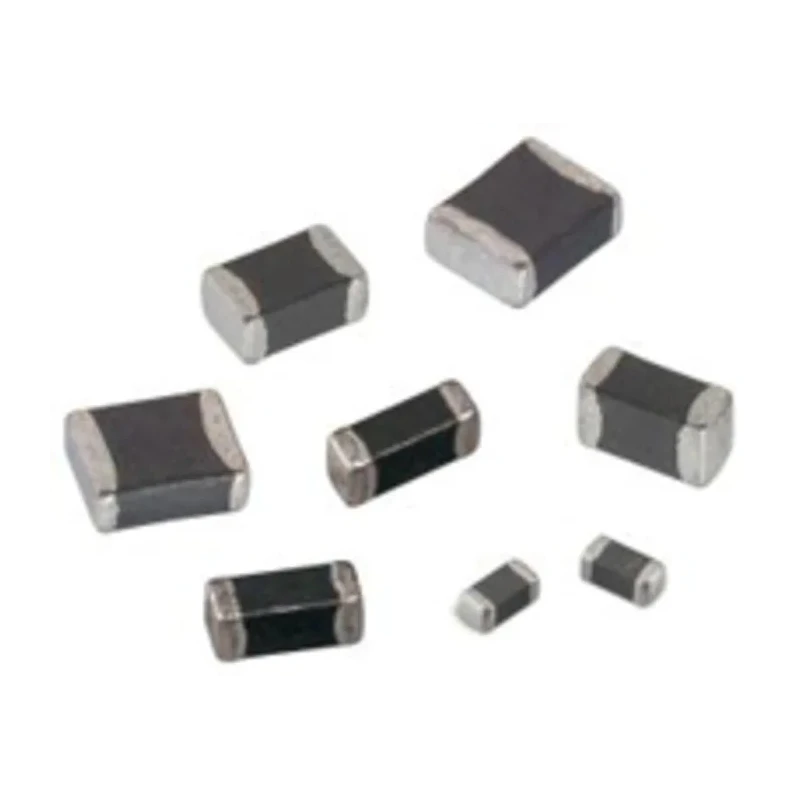

Wurth Elektronik Multilayer Surface Mount Inductor 0603 Package, 220 nH Inductance, 1.3A DC Current, Ferrite 74479762122

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Multilayer Surface Mount Inductor 0603 Package, 220 nH Inductance, 1.3A DC Current, Ferrite 74479762122

Name: Wurth Elektronik Multilayer Surface Mount Inductor 0603 Package, 220 nH Inductance, 1.3A DC Current, Ferrite 74479762122
Brand: Wurth Elektronik
SKU: 378247
Price: 0.55 USD
Availability: InStock



Category Power Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	0.5mm
Operating Temperature Range	-40°C to +125°C
Length	1.6mm
Depth	0.8mm
Packaging	Tape & Reel
Series	WE-PMI
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	220nH
Standards/Approvals	REACH, RoHS
Package/Case	0603
Maximum DC Current	1.3A
Pin Count	2
Maximum DC Resistance	120mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	250MHz
Minimum Quality Factor	7
Inductor Construction	Multilayer

Key Features

This inductor supports a maximum DC current of 1.3A.
It features a multilayer construction optimized for power applications.
The surface mount design enables ease of integration on PCBs.
Operating temperature ranges from -40°C to +125°C suitable for varied environments.
It has a maximum DC resistance of 120 mΩ, ensuring low power losses.
The maximum self-resonant frequency is 250 MHz for high-frequency operation.
Package size is compact 0603 with dimensions length 1.6mm, height 0.5mm, and depth 0.8mm.
The core material is ferrite which enhances magnetic properties while minimizing noise.

Product Description

Wurth Elektronik 74479762122 is a 0603 package multilayer surface mount inductor with a ferrite core designed for power applications. This multilayer inductor provides an inductance of 220 nH with ±20% tolerance and supports a maximum DC current of 1.3A, making it ideal for use in compact, high-performance electronic circuits.

The device features a magnetically shielded construction to reduce cross talk and has a maximum DC resistance of 120 mΩ ensuring efficient power handling with minimal losses. It operates reliably across a temperature range from -40°C to +125°C, suitable for industrial, commercial, and portable electronic applications.

Key mechanical dimensions include a length of 1.6 mm, height of 0.5 mm, and depth of 0.8 mm, meeting the compact 0603 surface mount standards, facilitating high-density PCB designs.

This inductor is ideal for applications such as DC/DC converters especially at switching frequencies greater than 1 MHz, and portable devices including PDAs and digital cameras, where size and power efficiency are critical. The ferrite core material optimizes magnetic properties while maintaining low noise emissions.

Maximum DC Current: 1.3A supports high current loads effectively. Multilayer construction ensures stable inductance performance. Compact 0603 package enables integration on space-constrained PCB layouts. RoHS and REACH compliant for environmental safety.

Maximum self-resonant frequency of 250 MHz supports high-frequency operation. The product originates from China and is supplied new, meeting high-quality manufacturing standards.
