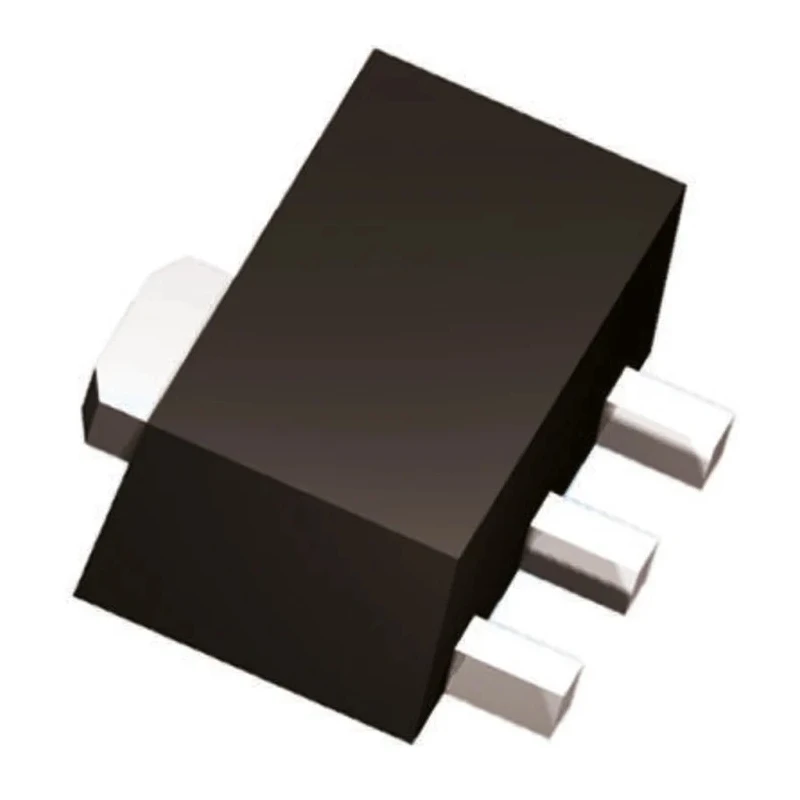

DiodesZetex General Purpose PNP Transistor SOT-89 Package, -300 mA Collector Current, -200 V Collector Emitter FCX596TA

DiodesZetex FCX596TA is a general purpose PNP transistor packaged in a surface mount SOT-89 form factor with 3 pins. It supports a maximum DC collector current of -300 mA and can withstand a collector emitter voltage of -200 V, making it ideal for various electronic applications including amplification and switching in industrial, commercial, and consumer electronics.

This transistor features a maximum power dissipation of 1 watt and a minimum DC current gain (hFE) of 35, ensuring reliable signal amplification and thermal management. Its maximum transition frequency of 150 MHz supports high-frequency operations common in communication and control circuits.

Designed for surface mount technology, the SOT-89 package allows for compact assembly on PCBs. Its operational temperature range of -55°C to 150°C ensures stability under harsh environmental conditions, making it suitable for automotive, industrial electronics, and instrumentation.

The device offers maximum collector base voltage and emitter base voltage of -220 V and -5 V respectively, adding to its robust electrical specifications. Dimensions include a length of 4.6 mm, width of 4.25 mm, and height of 1.6 mm, facilitating integration into compact circuit layouts.

These features make the DiodesZetex FCX596TA transistor suitable for applications in electronic design, laboratory prototyping, automotive electronics, and general industrial control systems.

Maximum collector current of -300 mA suitable for varied circuits. Collector emitter voltage rated at -200 V for robust performance. Package type SOT-89 enables compact PCB mounting. Maximum power dissipation is 1W to maintain thermal stability.

Minimum DC current gain of 35 ensures efficient amplification. Operating temperature ranges from -55°C to 150°C for industrial use. Maximum transition frequency of 150 MHz ideal for high-speed switching. Compact dimensions: 4.6 mm length, 4.25 mm width, and 1.6 mm height.
