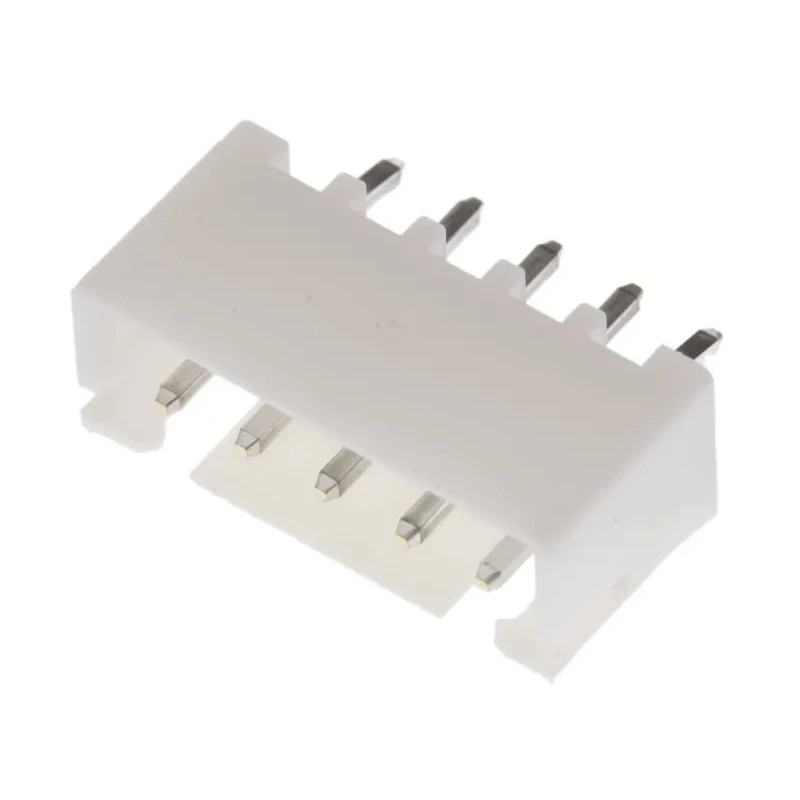

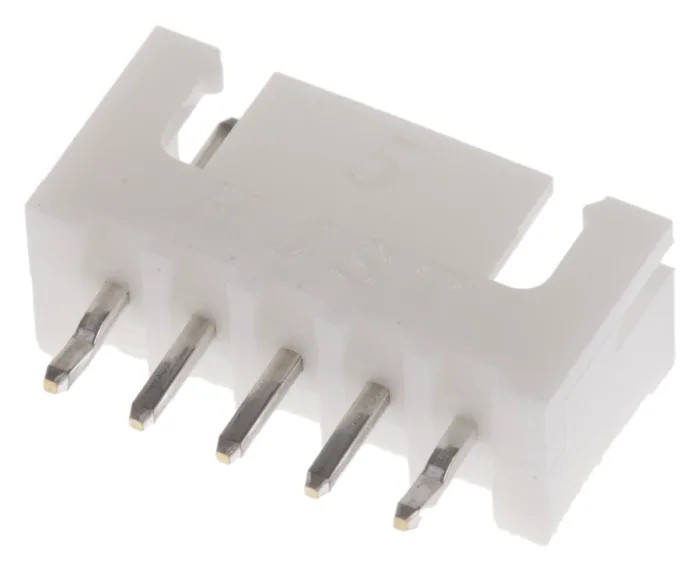

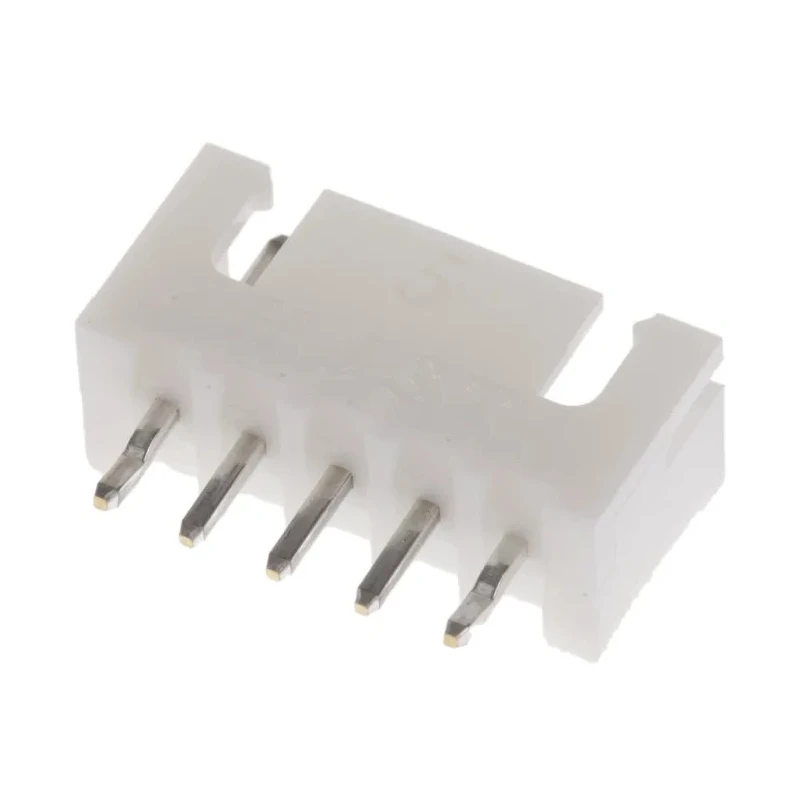

JST XH Series 5 Contact Straight Through Hole PCB Header 2.5 mm Pitch 1 Row Shrouded B5B-XH-A(LF)(SN)
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Straight |
| Current | 3A |
| Model | B5B-XH-A(LF)(SN) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | XH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3.4mm |
Key Features
- Features 5 male contacts arranged in a single row.
- Constructed with polyamide housing material rated UL 94V-0 for flame resistance.
- Rated for 3A current and 250V voltage for reliable electronic applications.
- Contact material is brass with tin plating for corrosion resistance.
- Designed for wire-to-board via through-hole mounting.
- Operating temperature range from -25°C to 85°C.
- Termination type is solder for durable electrical connections.
- Mating pin length of 3.4 mm for stable mechanical fit.
Product Description
JST B5B-XH-A(LF)(SN) is a precision-engineered PCB header from the XH Series, designed for robust wire-to-board connections in electronic assemblies. It features 5 male contacts in a single row with a standard 2.5 mm pitch, making it suitable for compact PCB designs requiring reliable electrical performance.
The header's polyamide housing material meets UL 94V-0 standards, ensuring flame retardancy and durability in demanding environments. The brass contacts are tin-plated to resist corrosion and maintain excellent conductivity over extended periods.
This through-hole mounted header supports currents up to 3A and a voltage rating of 250V AC/DC, making it ideal for a wide range of industrial and commercial electronic applications. Its operating temperature range from -25°C to 85°C further assures dependable performance in varying environmental conditions.
The solder termination type ensures secure and long-lasting electrical connections on the PCB, while the mating pin length of 3.4 mm facilitates easy and reliable mating with corresponding connectors. The shrouded design enhances protection and prevents accidental disconnection or shorts.
5 male contacts in a single row configuration. Polyamide housing rated UL 94V-0 for safety and durability. Tin-plated brass contacts for corrosion resistance. 3A current and 250V voltage rating for robust performance. Through-hole mount type for ease of PCB assembly.
Operating temperature from -25°C to 85°C for versatility. Solder termination for stable and strong PCB connections. Mating pin length of 3.4 mm for mechanical stability. Shrouded design enhances electrical safety and reliability.
Manufactured in China with consistent quality standards.
This JST PCB Header is widely used in industrial electronics, manufacturing automation, power supplies, and various other sectors that demand high-quality and reliable PCB connector solutions. It supports efficient wire-to-board interfacing, improving assembly production efficiency and ensuring electrical integrity in end products.
Explore the full range of JST connectors and related electronic components at EnvMart for your industrial, laboratory, or manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB header is 250V AC/DC, making it suitable for various electronic applications.
This model is rated for a maximum current of 3A, ensuring reliable performance in electrical connections.
The housing is made from polyamide, rated UL 94V-0 for flame resistance, and the contacts are brass with tin plating for corrosion resistance.
The contacts are arranged with a pitch size of 2.5 mm, which is standard for compact PCB designs.
It operates within a temperature range of -25°C to 85°C, allowing for versatility in various environments.
This model features 5 male contacts arranged in a single row, suitable for wire-to-board connections.
The termination type for this header is solder, which provides stable and strong connections on the PCB.
The mating pin length is 3.4 mm, facilitating reliable mating with corresponding connectors.
This model supports through-hole mounting, making it easy to assemble on PCBs.
The header is shrouded, which enhances protection and prevents accidental disconnection or shorts.
This PCB header is manufactured in China, adhering to consistent quality standards.
It is widely used in industrial electronics, manufacturing automation, and power supplies, among other sectors.
