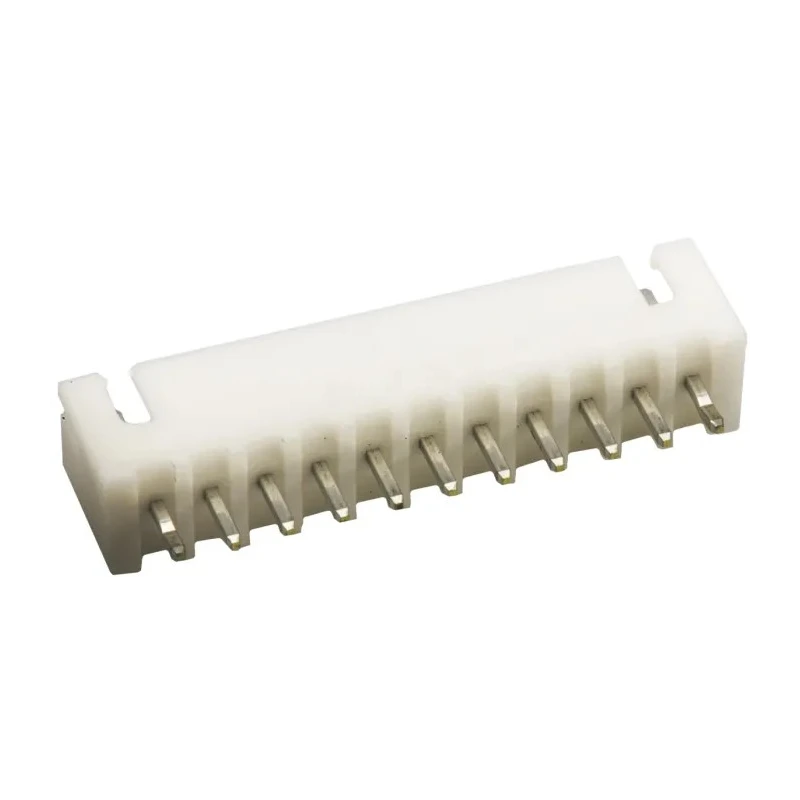

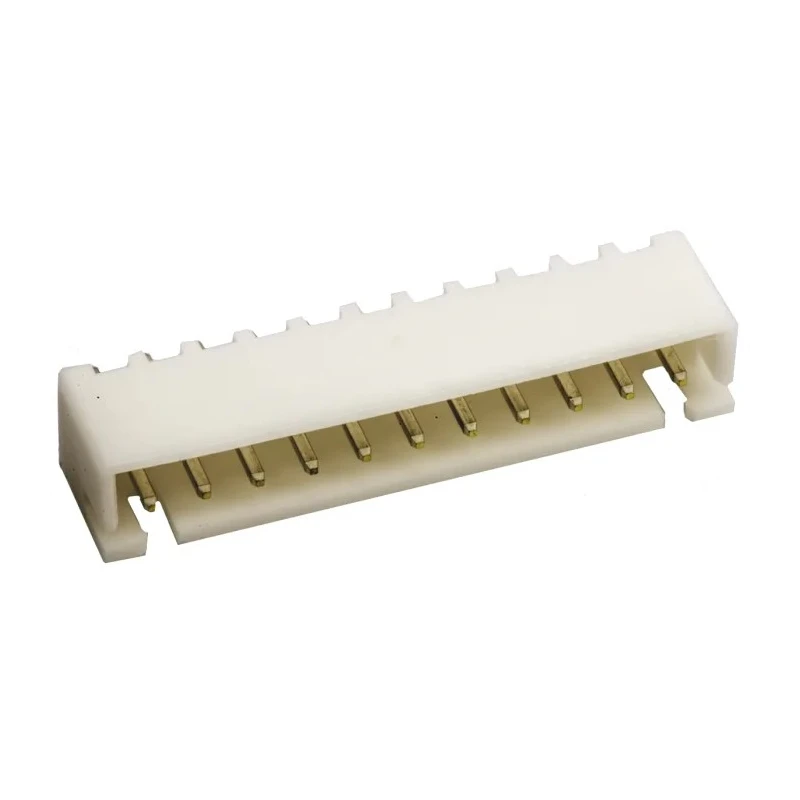

JST XH Series Straight Through Hole PCB Header, 11 Contact, 2.5 mm Pitch, 1 Row, Shrouded B11B-XH-A LF SN
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Straight |
| Current | 3A |
| Model | B11B-XH-A LF SN |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | XH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 11 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3.4mm |
Key Features
- The connector is shrouded with a box-type design ensuring secure connections.
- Constructed with brass contacts plated in tin for reliable conductivity.
- Housing is made of durable polyamide material rated UL 94V-0 for flammability resistance.
- Operates reliably between -25°C and 85°C temperature range.
- Mount type is through hole, facilitating easy PCB mounting.
- Rated for operating voltages up to 250 VAC/DC and currents up to 3 A.
- Compatible with wire sizes ranging from 30AWG to 22AWG.
- Pin mating length is 3.4 mm ensuring proper engagement with receptacles.
Product Description
JST B11B-XH-A LF SN PCB Header offers a reliable solution for wire-to-board connections in industrial and electronic applications. This shrouded header features 11 contacts arranged in a single row with a precise 2.5 mm pitch, making it compatible with a broad range of PCBs. The housing is constructed from polyamide (PA66) material rated UL 94V-0, providing flame resistance and robust mechanical protection.
The connector system supports wire sizes from 30AWG to 22AWG and carries currents up to 3 A at operating voltages of 250 V AC/DC. The contacts are made of brass with tin plating to ensure good electrical conductivity and corrosion resistance, essential for durable connectivity in demanding environments.
Designed with a through hole mount type, this PCB header guarantees firm installation on the PCB. The pin length of 3.4 mm allows for optimal mating with corresponding receptacle housings. Operating temperature range from -25°C to 85°C ensures suitability for many industrial and commercial electronics scenarios.
The JST XH Series shrouded header is commonly used in industrial devices, automation systems, power equipment, and other areas where secure and reliable board connections are critical. Its box-type design enhances mechanical retention and prevents incorrect mating, improving overall system reliability.
The connector features a shrouded box-type design for added protection. Brass contacts with tin plating ensure excellent conductivity. Polyamide housing rated UL 94V-0 offers strong flame resistance. Supports 11 contacts with 2.5 mm pitch and a single row layout.
Designed for through-hole mounting on printed circuit boards. Operates at -25°C to 85°C temperature range for wide industrial use. Rated 3 A current capacity and 250 V AC/DC voltage. Ideal for industrial electronics and automation applications.
Explore the Electronics & Electricals category for more high-quality PCB Headers and connectors to suit your project and industrial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 3 A and can operate at voltages up to 250 V AC/DC.
The connector features a pitch of 2.5 mm and includes 11 contacts arranged in a single row.
The housing is made of polyamide (PA66) material, while the contacts are constructed from brass and plated with tin for conductivity.
It operates reliably within a temperature range of -25°C to 85°C.
This model is designed for through hole mounting on printed circuit boards, facilitating easy installation.
The pin mating length is 3.4 mm, ensuring proper engagement with receptacles.
It supports wire sizes ranging from 30 AWG to 22 AWG.
The termination type for this model is solder, which is suitable for secure connections.
The orientation of this connector is straight, allowing for straightforward installation on PCBs.
This connector is shrouded, providing additional protection and preventing incorrect mating.
The housing material is rated UL 94V-0, indicating strong flame resistance.
It is commonly used in industrial devices, automation systems, and power equipment where secure wire-to-board connections are critical.
