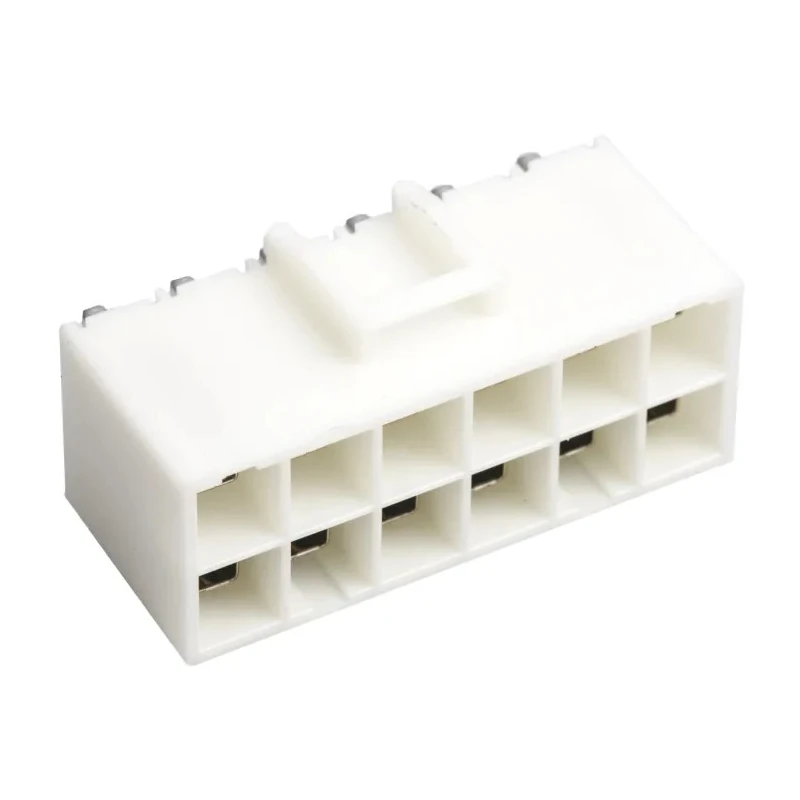

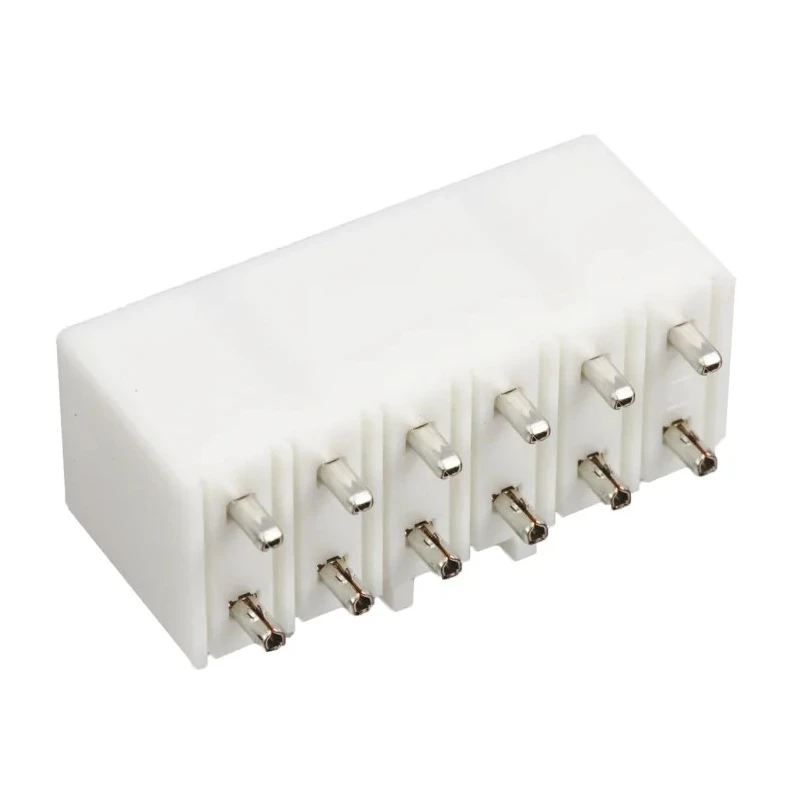

JST VL Series Straight Through Hole PCB Header, 12 Contact(s), 6.2 mm Pitch, 2 Row, Shrouded B12P-VL (LF)(SN)

JST B12P-VL (LF)(SN) VL Series Straight Through Hole PCB Header offers a robust, high current, and high voltage interconnection solution. Designed with a 6.2 mm pitch and two rows of 12 male contacts, this shrouded header provides secure wire-to-board connections suitable for demanding industrial, electronic, and manufacturing environments.

The housing is made of polyamide material with UL94V-0 rating, assuring flame resistance and durability. Copper alloy contacts plated with tin reduce contact resistance to a maximum of 7 milliohms, ensuring efficient electrical conductivity. Its voltage rating of 600V ac/dc and current rating of 20A make it ideal for power connectors in circuits requiring high reliability.

The connector’s inter-housing locks prevent accidental disconnections, essential for maintaining system integrity in industrial and electronic applications. The mating pin length of 3.6 mm and through hole mount type ensure strong mechanical and electrical connections on PCBs. Operating temperature range from -25°C to 85°C allows use in a variety of climates and applications.

This product is built to meet rigorous manufacturing standards and is made in Japan, reinforcing quality assurance. Suitable use cases include industrial automation, electrical assembly, HVAC controls, and manufacturing equipment wiring.

Constructed with flame-retardant polyamide housing. Rated for 600V ac/dc and 20A current. Features low 7mΩ contact resistance for optimal conductivity. Shrouded design with inter-housing locks for secure mating. Through hole mount ensures reliable PCB installation.

Male contacts with tin plating for corrosion resistance. Wide operating temperature from -25°C to 85°C. Manufactured in Japan for high quality standards. Compatible with JST VL series plug housings. Explore EnvMart's selection of high-quality PCB Headers and connectors for your electronic and industrial assembly needs.
