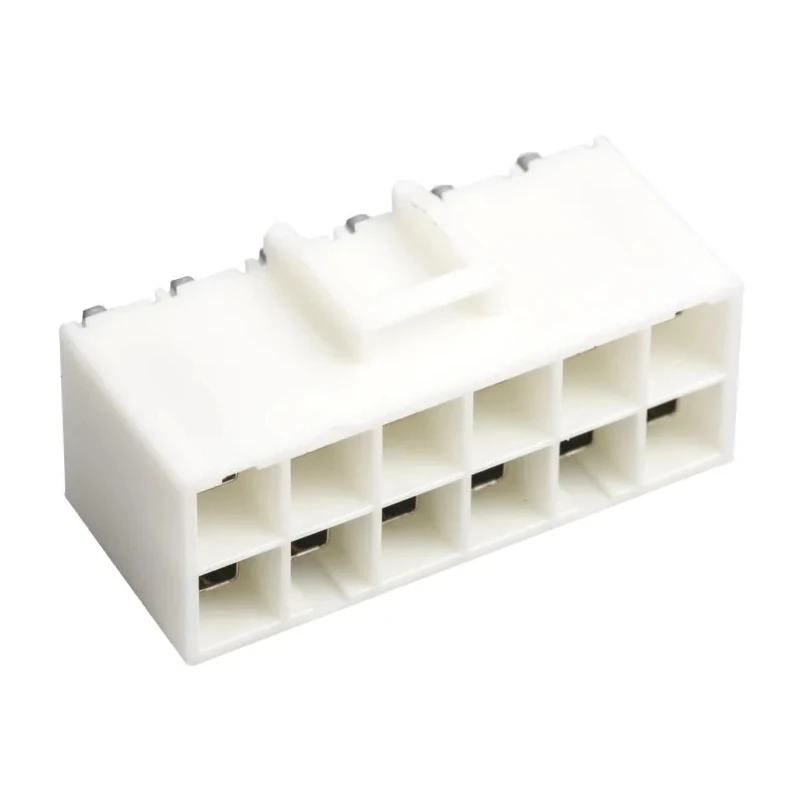

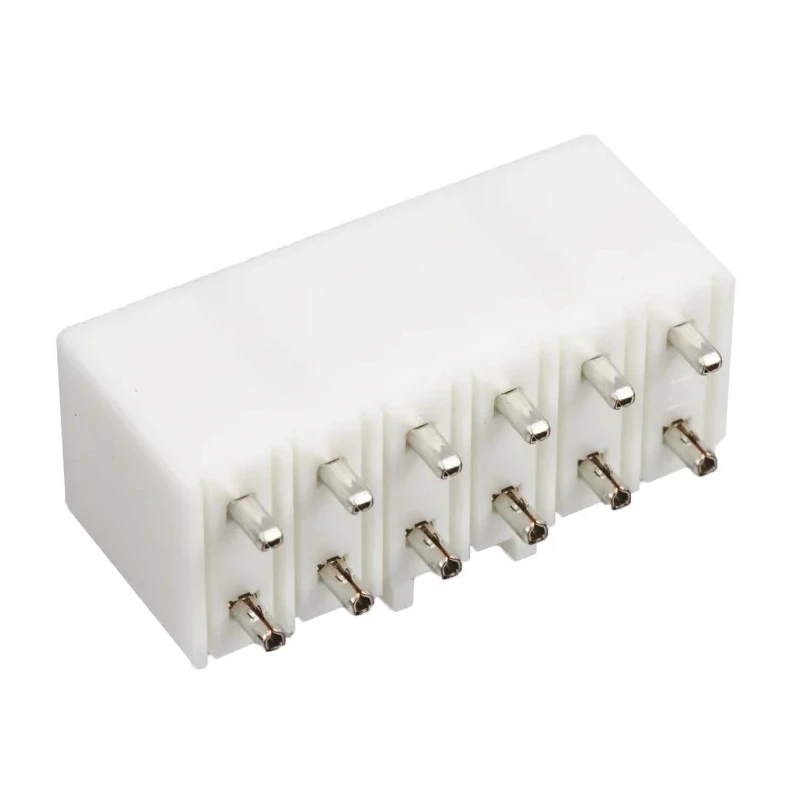

JST VL Series Straight Through Hole Shrouded PCB Header 12 Contacts 6.2 mm Pitch 2 Row B12P-VL (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST VL Series Straight Through Hole Shrouded PCB Header 12 Contacts 6.2 mm Pitch 2 Row B12P-VL (LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	600V
Brand	JST
Orientation	Straight
Current	20A
Model	B12P-VL (LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	VL
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	6.2mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.6mm
Initial contact resistance	7mΩ max

Key Features

Current rating of 20A supports high power applications.
Constructed with polyamide housing material for durability and UL94V-0 flammability rating.
Features male copper alloy contacts with tin plating for excellent conductivity.
Operating temperature range from -25°C to 85°C guarantees reliability in varied environments.
Incorporates inter-housing locks to prevent accidental disconnection during operation.
Designed with 6.2 mm row pitch and 3.6 mm mating pin length for compatibility with VL series plug housings.
Through hole mount type provides stable mechanical connection on PCB boards.
Ideal for industrial, electronic power and connector applications requiring robust PCB headers.

Product Description

JST B12P-VL (LF)(SN) VL Series Straight Through Hole PCB Header is a high current, high voltage, shrouded connector designed for reliable wire-to-board connections. Featuring a 2-row, 12-contact configuration with a 6.2 mm pitch, this PCB header is built with polyamide housing material rated UL94V-0, ensuring strong mechanical and electrical performance.

The contact system uses male copper alloy contacts plated with tin to provide low resistance and long-lasting conductivity. Rated voltage of 600V ac/dc and current rating of 20A make it suitable for demanding industrial and electronic applications.

This header operates reliably in temperatures ranging from -25°C to 85°C and incorporates inter-housing locks that prevent accidental disconnection, enhancing safety and product integrity.

The 3.6 mm mating pin length and through hole mount type enable straightforward and secure PCB assembly, compatible with JST VL series plug housings. These attributes make the product ideal for power connectors and electronic instrumentation in laboratory, industrial manufacturing, electronic components assembly, and other rigorous environments.

Designed and manufactured in Japan to meet stringent quality expectations, this PCB header does not carry additional certifications but offers reliable performance through robust design and materials.

Rated voltage of 600V ac/dc ensures strong insulation performance. Current rating of 20A supports high power applications. Constructed with polyamide housing material for durability and UL94V-0 flammability rating. Features male copper alloy contacts with tin plating for excellent conductivity.

Operating temperature range from -25°C to 85°C guarantees reliability in varied environments. Incorporates inter-housing locks to prevent accidental disconnection during operation. Designed with 6.2 mm row pitch and 3.6 mm mating pin length for compatibility with VL series plug housings.

Through hole mount type provides stable mechanical connection on PCB boards. Ideal for industrial, electronic power and connector applications requiring robust PCB headers. Explore the comprehensive range of JST products and PCB Headers on EnvMart to meet diverse electronic assembly and power connector needs.
