| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.5mm |
| Length | 1.02mm |
| Model | PESD3V3S1UL,315 |
| Width | 0.62mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-882 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 20V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.2V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Peak Pulse Power Dissipation Pppm | 150W |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 15A |
| Maximum Reverse Leakage Current | 2μA |

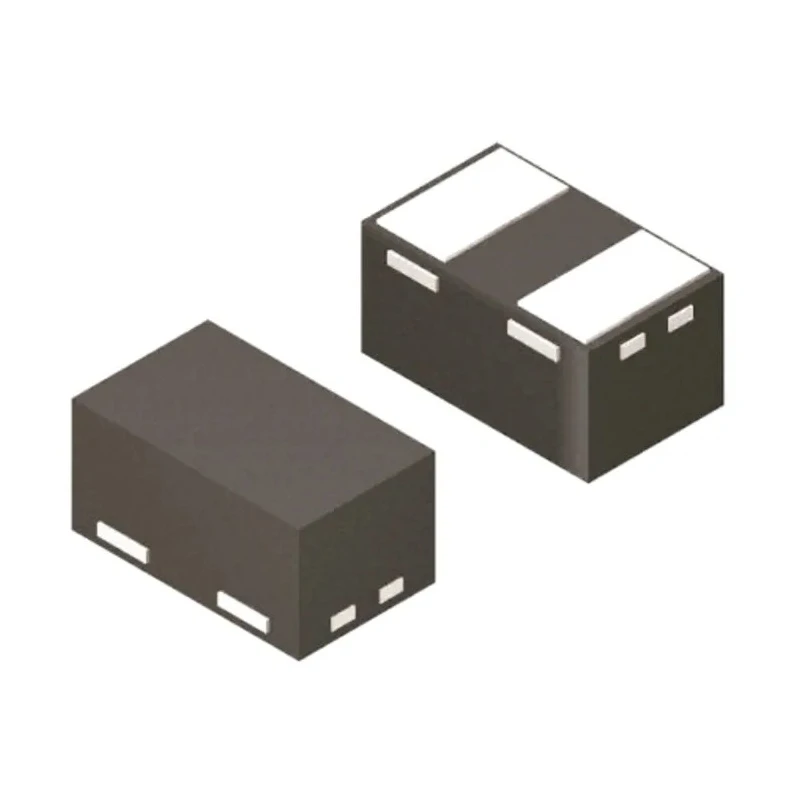

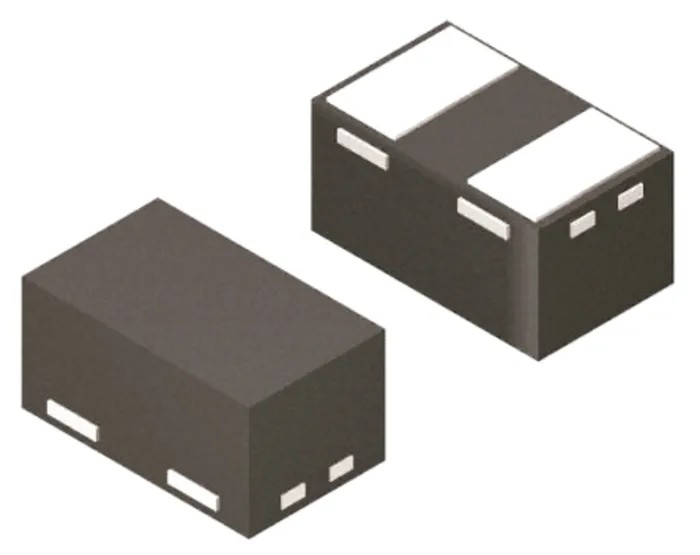

Nexperia PESD3V3S1UL,315 Uni-Directional 1-Element ESD Protection Diode is engineered to safeguard electronic equipment from damaging electrostatic discharges and transient voltage spikes. This diode features a single element uni-directional configuration optimized for protecting one signal line against ESD events, delivering up to 150 W peak pulse power dissipation.
Its compact 2-pin SOD-882 surface mount package enables efficient board space utilization, making it suitable for high-density circuit designs in consumer electronics, telecommunications, automotive systems, and industrial control applications.
The diode exhibits a minimum breakdown voltage of 5.2 V with a maximum reverse stand-off voltage of 3.3 V, ensuring stable suppression of electrical transients. The clamping voltage at 20 V guarantees protection against voltage spikes, while maintaining a low maximum reverse leakage current of 2 μA to minimize power loss under normal operation.
Operating reliably across a wide temperature range from -65°C to 150°C, this diode is suitable for demanding environments including industrial and automotive applications where temperature extremes are common.
The PESD3V3S1UL,315 is compliant with standard semiconductor manufacturing processes, though it does not carry specific certifications. Its unidirectional ESD protection capability makes it ideal for transient voltage suppression on sensitive signal and data lines, assuring longevity and reliability of electronic components.
Single element uni-directional diode configuration. 150 W peak pulse power dissipation capacity. Compact 2-pin SOD-882 surface mount package. Minimum breakdown voltage of 5.2 V for precise clamping. Operating temperature range from -65°C to 150°C.
Low leakage current of 2 μA to enhance efficiency.
This diode is widely applied in industrial electronics, telecommunications equipment, automotive electronic systems, and various consumer electronic devices where robust ESD protection is mandatory to maintain device integrity and prevent failure.
