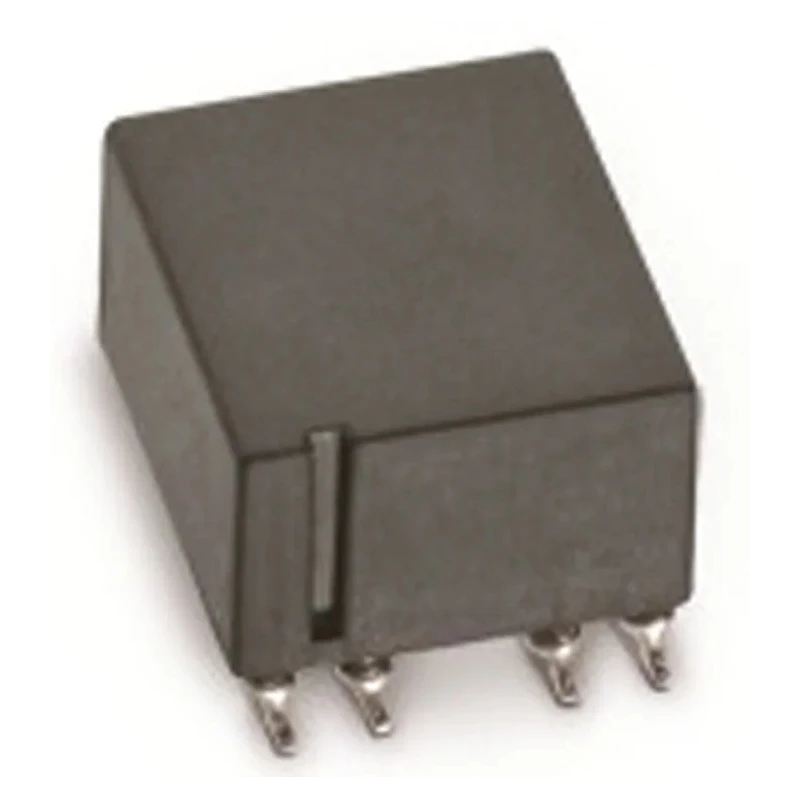

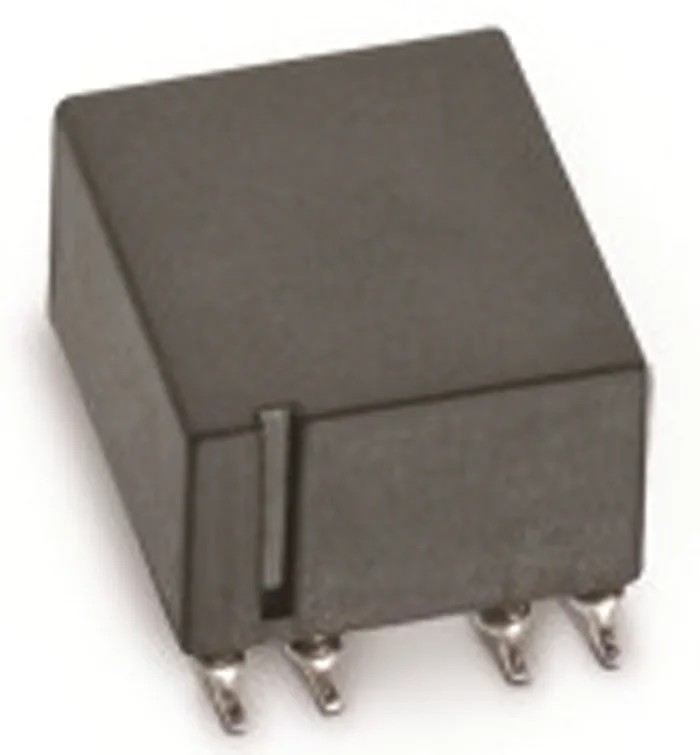

Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47 μH 10A 2.7mΩ 125°C 744290130

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47 μH 10A 2.7mΩ 125°C 744290130

Name: Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47 μH 10A 2.7mΩ 125°C 744290130
Brand: Wurth Elektronik
SKU: 376613
Price: 5.08 USD
Availability: InStock



Category Surface Mount Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	7.8mm
Length	14mm
Depth	12.5mm
Packaging	Tape & Reel
Series	WE-UCF
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	0.47μH
Standards/Approvals	REACH, RoHS
Package/Case	1712
Maximum DC Current	10A
Pin Count	8
Maximum DC Resistance	2.7mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Inductor Construction	Sectional Winding

Key Features

Inductance value of 0.47 μH for precise filtering and energy storage.
Shielded to minimize electromagnetic interference and ensure stable operation.
High maximum DC current rating of 10A for robust power handling.
Minimal DC resistance of 2.7 milliohms reduces energy loss during operation.
Compact 1712 package size suitable for surface mount technology applications.
Constructed with a ferrite core and sectional winding for efficiency and durability.
Operating temperature range from -40°C to 125°C for diverse environmental conditions.
Supplied on tape and reel packaging for automated assembly processes.

Product Description

Wurth Elektronik 744290130 WE-UCF series shielded wirewound surface mount inductor features a ferrite core and sectional winding construction, offering an inductance of 0.47 μH and a maximum DC current of 10A. Designed for use in a wide range of electronic components, this inductor provides effective filtering and noise suppression in power lines and data lines.

The compact 1712 package dimensions (14mm length, 7.8mm height, 12.5mm depth) allow for efficient surface mounting in modern PCB designs. Its shielded design ensures minimized electromagnetic interference, promoting stability and performance in demanding industrial and electronic applications.

Operating within a temperature range from -40°C to 125°C, the device is suitable for use in harsh environmental conditions. Its low maximum DC resistance of 2.7 milliohms improves energy efficiency and reduces heat generation during operation.

The inductor is supplied tape and reel packaged, facilitating automated production and insertion into machinery. It complies with REACH and RoHS standards, guaranteeing environmentally responsible manufacturing.

Typical applications include filtering DC power lines, buck/boost converter circuits, and data lines with low bitrate signals, making it suitable for industrial equipment, telecommunications, and automotive electronics.

Inductance value of 0.47 μH for accurate performance. Shielded design reduces electromagnetic interference. High current rating of 10A supports demanding electronic loads. Low DC resistance enhances power efficiency. Compact 1712 surface mount package fits modern PCB layouts.

Durable ferrite core and sectional winding construction. Wide operating temperature ensures reliability under varied conditions. Supplied on tape and reel for streamlined manufacturing. Environmentally compliant with REACH and RoHS standards.

This Wurth Elektronik inductors range is widely used in the industrial, telecommunications, automotive, and electronics sectors requiring reliable and efficient power management solutions.
