| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.35mm |
| Length | 2mm |
| Model | BZM55C11-TR |
| Mount Type | Surface |
| Series | BZM55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-80 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 11V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 20Ω |

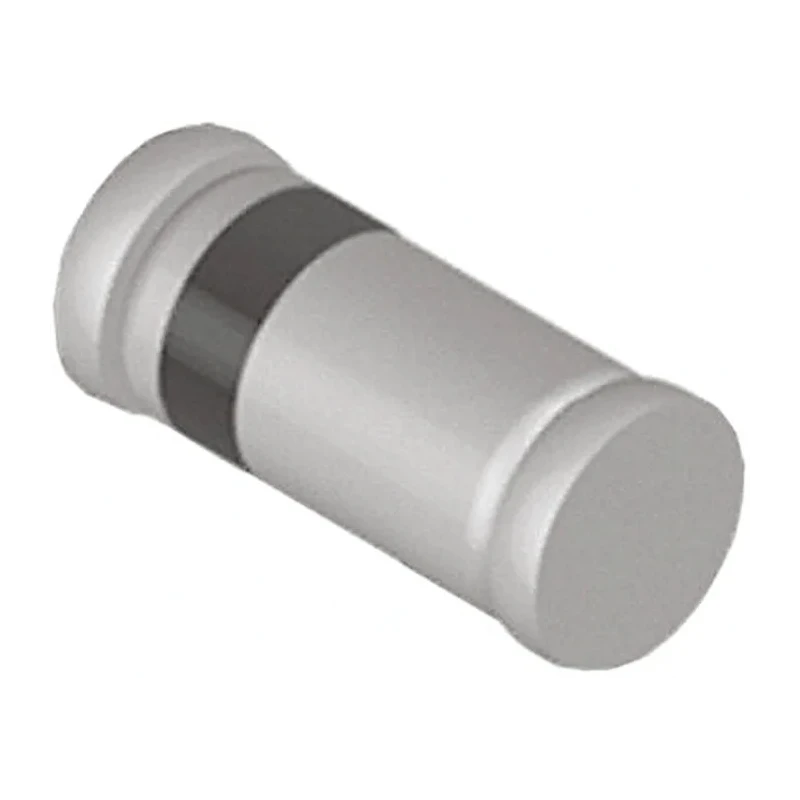

Vishay BZM55C11-TR is a single Zener diode designed for voltage regulation applications, featuring a nominal zener voltage of 11 V and a power dissipation rating of 500 mW. The diode is configured for surface mounting on PCBs with its compact SOD-80 2-pin package, facilitating space-saving integration in electronic circuits.
Ideal for industrial, automotive, and electronic circuit applications requiring stable voltage regulation, this diode operates reliably at maximum temperatures up to 175°C. Its low maximum reverse leakage current of 2 µA and controlled zener impedance of 20 ohms ensure precision and efficiency in power management.
The diode features a test current of 5 mA and dimensional specifications of 2 mm length and 1.35 mm height, which makes it suitable for dense circuit boards and modern electronics manufacturing.
Certified to the automotive grade AEC-Q101 standard, BZM55C11-TR meets demanding reliability requirements for automotive system applications. Being part of the BZM55 series by Vishay Semiconductor, it demonstrates consistent quality in discrete semiconductor components.
Nominal zener voltage of 11 V for voltage regulation. Maximum power dissipation of 500 mW for stable operation. Surface mount SOD-80 package facilitates compact circuit design. Automotive standard AEC-Q101 certification ensures automotive compatibility.
Two-pin configuration and low reverse leakage current of 2 µA. Supports high operating temperature up to 175°C. Dimensions of 2 mm length and 1.35 mm height suitable for PCB integration. Manufactured in China following Vishay Semiconductor quality standards.
This Zener diode is suitable for various electronics and industrial applications, including power supply voltage regulation, automotive electrical systems, and precision electronic devices where stable reference voltage is critical. EnvMart offers this Vishay BZM55C11-TR diode as a reliable component for advanced electronic and semiconductor projects, ensuring performance integrity and manufacturing compatibility.
