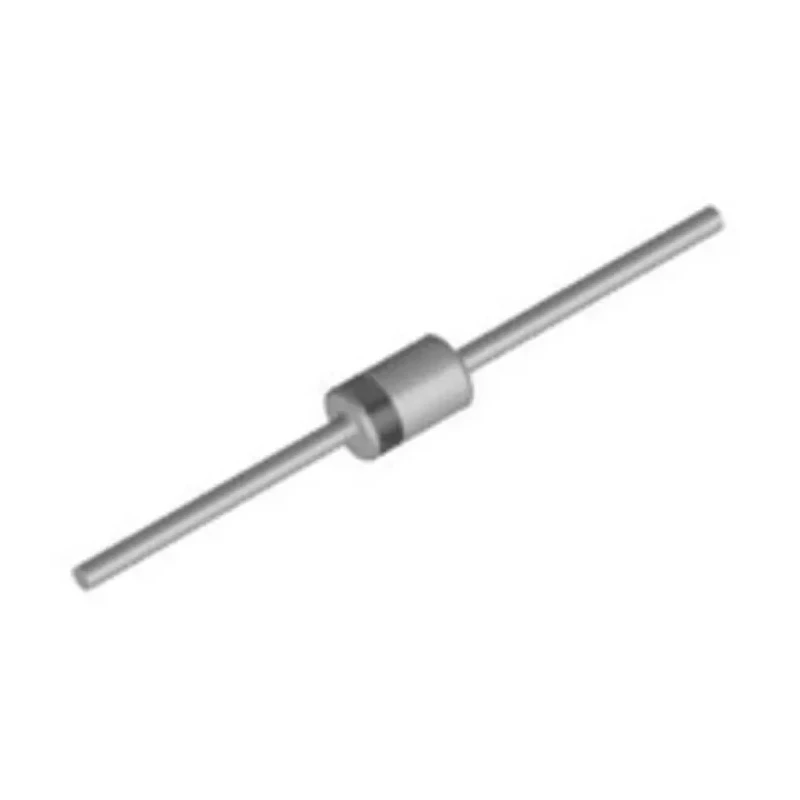

Vishay 27 V General Purpose Zener Diode 1.3 W Power Dissipation Through Hole DO-41 Package BZX85B27-TR

Vishay BZX85B27-TR is a 27 V, single element silicon planar zener diode designed primarily for voltage stabilization and clipping applications requiring up to 1.3 W power dissipation. It is housed in a standard DO-41 through hole package featuring two pins for easy PCB mounting in industrial and electronics applications.

This diode offers a nominal zener voltage of 27 V with a tolerance of ±2%, making it well suited for general purpose power regulation circuits. It has a maximum power dissipation of 1.3 W, ensuring reliable operation under standard load conditions.

The maximum zener impedance of 30 ohms and a low reverse leakage current of 500 nA help maintain voltage stability and improve efficiency in regulated circuits. The device is specified to operate within a wide temperature range from -55°C to 175°C, suitable for demanding industrial environments.

The test current of 8 mA defines the nominal operating point for regulation. Vishay's silicon planar technology ensures product reliability and consistent performance.

Common use cases for the BZX85B27-TR include stabilization of power supplies, protection circuits, voltage reference sources, and clipping circuits in industrial electronics, laboratory equipment, manufacturing devices, and automotive electronics.

This diode has a nominal zener voltage of 27 volts with a tolerance of ±2%. It supports a maximum power dissipation of 1.3 watts for stable operation under load. The device features a low maximum reverse leakage current of 500 nA, ensuring efficient performance.

The zener impedance is rated at a maximum of 30 ohms to maintain voltage stability. It is built in a robust DO-41 package with 2 pins for through-hole mounting. The diode operates reliably across a temperature range from -55°C to 175°C.

Test current for nominal operation is specified at 8 mA, optimizing regulation performance. Manufactured with silicon planar technology by Vishay for durability and reliability.

This product is ideal for incorporation in electronics manufacturing, semiconductor applications, and ICT hardware production. Explore other Vishay semiconductor components and zener diode options on EnvMart to fulfill diverse electronic component requirements.
