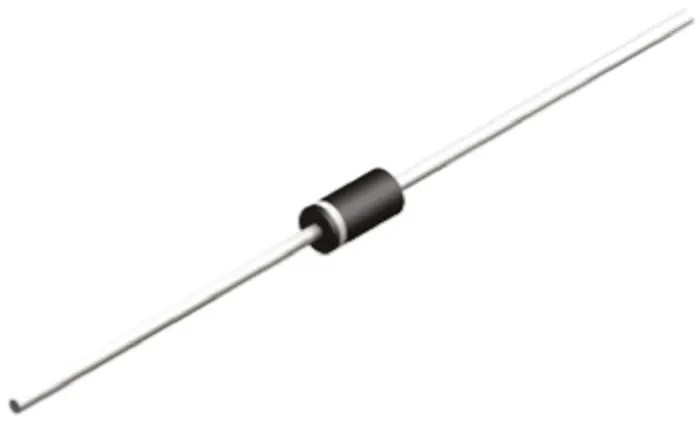

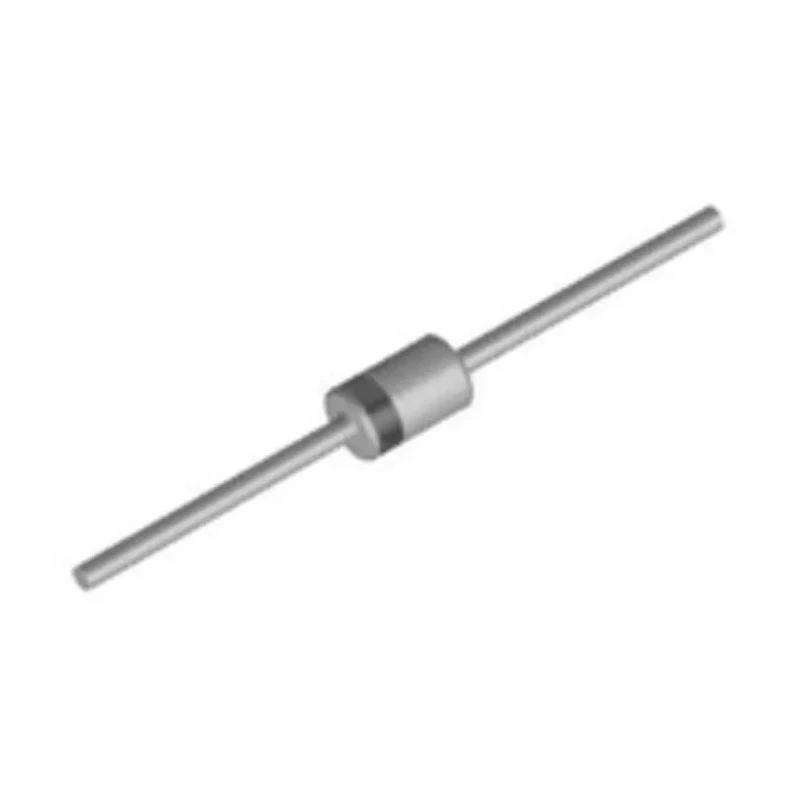

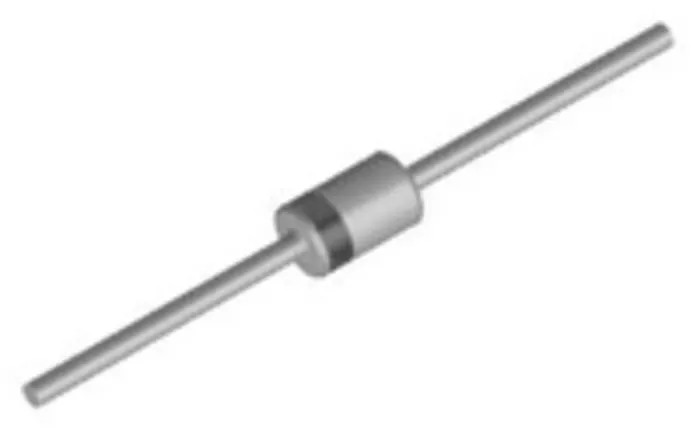

Vishay 16 V General Purpose Zener Diode 1.3 W DO-41 Through Hole 2-Pin BZX85B16-TR

Vishay BZX85B16-TR is a high-quality 16 V general purpose Zener diode designed to provide reliable voltage regulation in electronic circuits. With a maximum power dissipation of 1.3 W, this device is well-suited for stabilizing and clipping applications within industrial, laboratory, and commercial electronics.

The diode features a DO-41 package with a through-hole 2-pin mounting style, ensuring secure installation on PCBs. It maintains a nominal Zener voltage of 16 V with a tolerance of ±2%, supporting precise voltage control along with a maximum Zener impedance of 15 Ω to provide stable operation under load.

Operating over a wide temperature range from -55°C to 175°C, the diode offers exceptional thermal resilience for demanding environments. Maximum reverse leakage current of 500 nA ensures minimal energy loss during operation.

This Zener diode's compact physical dimensions (length 4.1 mm, height 2.6 mm) enable integration in space-constrained electronics assemblies. Its silicon planar construction facilitates longevity and consistent performance.

Applications include voltage stabilization, clipping circuits, and other power management roles common in industrial electronics, communication equipment, and power supply designs.

This diode supports a maximum power dissipation of 1.3 W. Nominal Zener voltage is 16 V with 2% tolerance. Package type is DO-41 with 2-pin through-hole mount. Operating temperature ranges from -55°C to 175°C. Maximum reverse leakage current is 500 nA.

Features a maximum Zener impedance of 15 Ω. Compact dimensions of 4.1 mm length and 2.6 mm height. Explore Vishay and other Semiconductor components within EnvMart’s Electronics & Electricals category for industrial and commercial electronic component needs.
