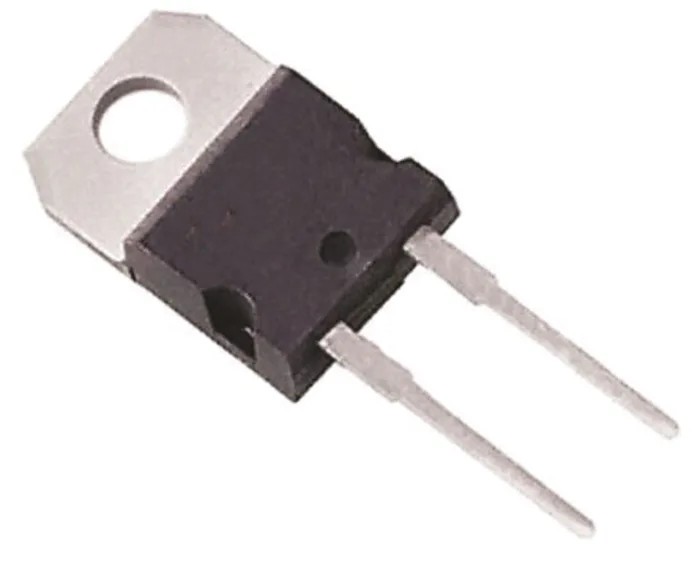

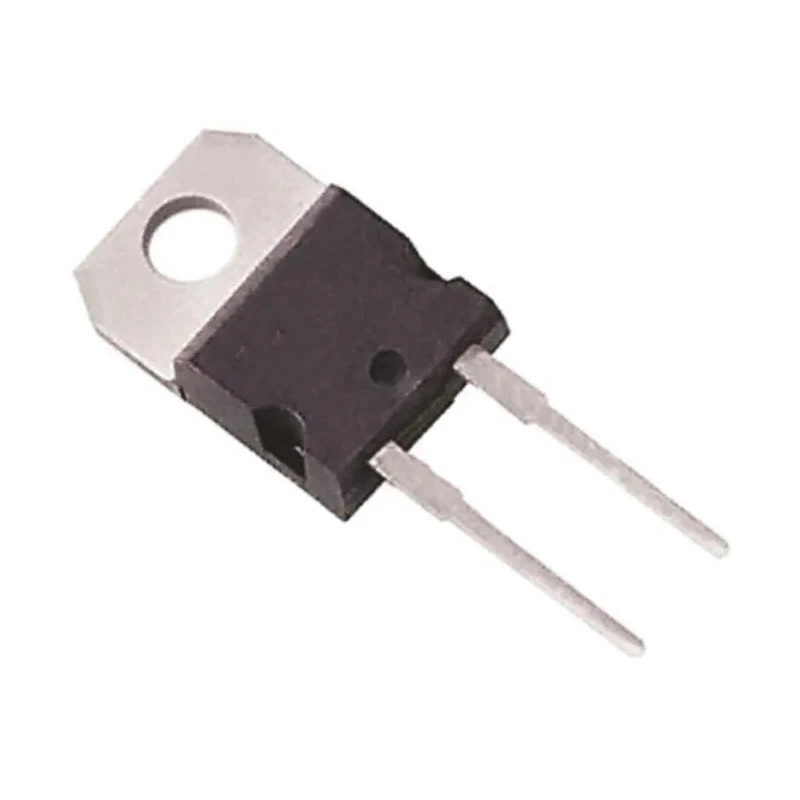

Vishay Silicon Junction Switching Diode, Single, 16 A Maximum Forward Current, 2-Pin TO-220AC Package FES16HT-E3/45

Free Delivery in India | Lowest Global Shipping Charges

Vishay Silicon Junction Switching Diode, Single, 16 A Maximum Forward Current, 2-Pin TO-220AC Package FES16HT-E3/45

Name: Vishay Silicon Junction Switching Diode, Single, 16 A Maximum Forward Current, 2-Pin TO-220AC Package FES16HT-E3/45
Brand: Vishay
SKU: 375638
Price: 20.22 USD
Availability: InStock



Category Switching Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	15.32mm
Length	10.54mm
Model	FES16HT-E3/45
Width	4.7mm
Mount Type	Through Hole
Maximum Operating Temperature	150°C
Package Type	TO-220AC
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	250A
Maximum Forward Voltage Vf	1.5V
Peak Reverse Recovery Time trr	50ns
Maximum Forward Current If	16A
Maximum Peak Reverse Repetitive Voltage Vrrm	500V

Key Features

High maximum forward current capacity of 16 A suitable for switching applications.
Ultrafast recovery time of 50 ns enhances switching performance.
Peak reverse voltage rating of 500 V ensures reliability under voltage stress.
Designed for through-hole mounting, facilitating easy PCB assembly.
Operates efficiently between temperatures of -65°C to 150°C.
Maximum forward voltage drop is 1.5 V, optimizing power efficiency.
Robust peak non-repetitive forward surge current rating of 250 A for transient conditions.
Manufactured in China to Vishay's standards of quality and durability.

Product Description

Vishay FES16HT-E3/45 is a silicon junction switching diode designed for industrial electronic applications requiring high forward current and fast switching performance. This single diode device supports a maximum forward current of 16 A and is packaged in a TO-220AC 2-pin format, making it suitable for through-hole mounting on various printed circuit boards.

The diode features an ultrafast recovery time of 50 nanoseconds, enabling efficient switching in high-speed electronic circuits. It can withstand a maximum peak reverse repetitive voltage of 500 V and handles forward voltage drop of up to 1.5 V, which reduces power losses and improves overall device efficiency.

Engineered for wide operating temperature ranges spanning from -65°C to 150°C, this diode ensures stable functionality in harsh environmental and industrial conditions. It also supports a peak non-repetitive forward surge current of 250 A, allowing tolerance to transient surges commonly encountered in power electronics.

With precise dimensions of 10.54 mm length, 4.7 mm width, and 15.32 mm height, the Vishay FES16HT-E3/45 is compact yet robust, fitting well in equipment requiring space-optimized components. Manufactured in China, it adheres to Vishay's quality standards for durability and performance.

High maximum forward current of 16 A suitable for power switching applications. Ultrafast recovery of 50 ns for improved switching speeds. Peak reverse repetitive voltage up to 500 V assures voltage tolerance. Through-hole TO-220AC package for reliable mounting and heat dissipation.

Wide operating temperature range from -65°C to 150°C supports diverse environments. Forward voltage drop of 1.5 V reduces conduction losses. Withstands peak non-repetitive surge currents of 250 A for transient conditions.

Compact physical dimensions enable integration into constrained spaces. Ideal for use in industrial, automotive, power supply, and electronic switching circuits. Explore Vishay Switching Diodes and other semiconductor components in the Electronics & Electricals section of EnvMart for industrial and laboratory applications.
