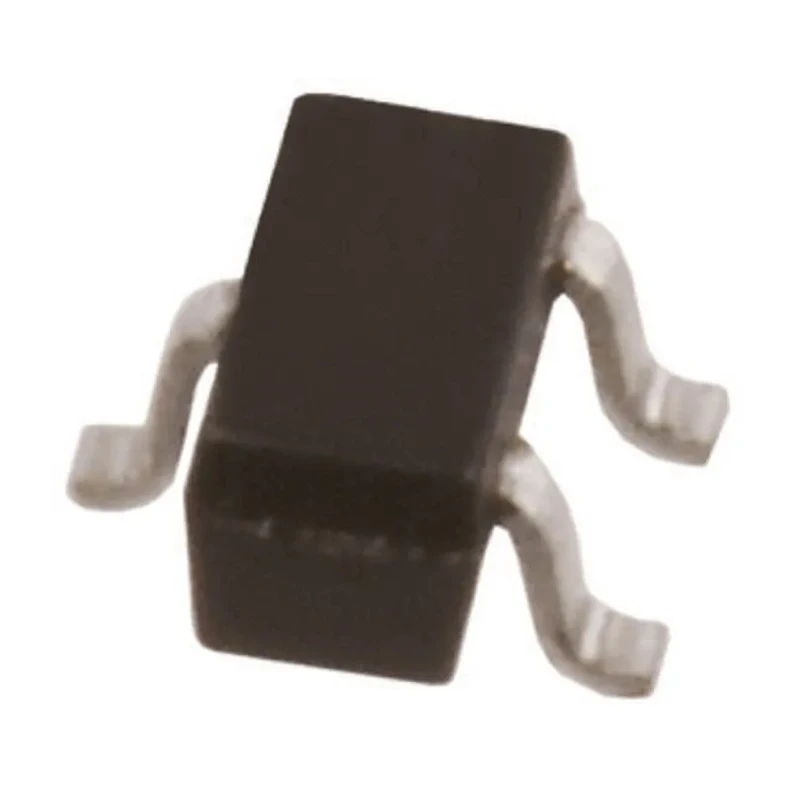

DiodesZetex Silicon Junction Switching Diode, 215 mA Forward Current, 85 V Reverse Voltage, 3-Pin SC-89 Package BAV199T-7-F

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Silicon Junction Switching Diode, 215 mA Forward Current, 85 V Reverse Voltage, 3-Pin SC-89 Package BAV199T-7-F

Name: DiodesZetex Silicon Junction Switching Diode, 215 mA Forward Current, 85 V Reverse Voltage, 3-Pin SC-89 Package BAV199T-7-F
Brand: DiodesZetex
SKU: 225877
Price: 0.1 USD
Availability: InStock



Category Switching Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	0.8mm
Length	1.7mm
Model	BAV199T-7-F
Width	0.85mm
Mount Type	Surface
Series	BAV199T
Maximum Operating Temperature	150°C
Package Type	SC-89
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Power Dissipation Pd	150mW
Diode Configuration	Series
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	3μs
Maximum Forward Current If	215mA
Maximum Peak Reverse Repetitive Voltage Vrrm	85V

Key Features

Maximum forward current of 215 mA ensuring reliable signal switching performance.
Rated peak reverse repetitive voltage of 85 V suitable for diverse circuit applications.
Compact SC-89 surface mount package with three pins for efficient PCB mounting.
Maximum power dissipation of 150 mW for stable operation under typical conditions.
Fast peak reverse recovery time of 3 microseconds optimizing high-frequency switching.
Wide operating temperature range from -65°C to 150°C for robust industrial and automotive use.
Maximum forward voltage drop of 1.25 V minimizing energy loss in circuits.
Small dimensions with length 1.7 mm, width 0.85 mm, and height 0.8 mm aid high-density board designs.

Product Description

DiodesZetex BAV199T-7-F is a silicon junction switching diode designed for reliable and efficient signal switching in electronic circuits. It supports a maximum forward current of 215 mA and withstands a peak reverse repetitive voltage of 85 V, making it ideal for a wide range of general-purpose applications in electronics and power management.

This diode features a compact surface mount SC-89 package with three pins, offering ease of assembly and space saving on PCBs. Its maximum power dissipation rating is 150 mW, ensuring stable performance within its operating limits. The device is capable of fast switching with a peak reverse recovery time of 3 microseconds, suitable for high-frequency switching tasks.

Designed to withstand harsh environments, the diode operates across a broad temperature range from minus 65 degrees Celsius to plus 150 degrees Celsius, enabling use in automotive and industrial sectors. Its maximum forward voltage drop is 1.25 V, reducing power losses to enhance energy efficiency in circuits.

The dimensions of the diode are optimized for compact electronic assemblies, measuring 1.7 mm in length, 0.85 mm in width, and 0.8 mm in height. The peak non-repetitive forward surge current capability of 4 A allows it to endure transient high current conditions without damage.

Maximum forward current of 215 mA for consistent switching reliability. Peak reverse voltage rating of 85 V suitable for various electronic applications. Compact SC-89 surface mount package supports optimized board layouts.

150 mW power dissipation rating for dependable energy management. Fast 3 µs peak reverse recovery time for efficient high frequency switching. Wide temperature range (-65°C to 150°C) for industrial and automotive use. Low forward voltage drop of 1.25 V minimizes power loss.

Small footprint dimensions for space-saving PCB integration. High surge current tolerance up to 4 A ensures durability under transient conditions. This product is highly suitable for industrial, automotive, consumer electronics, and power management applications requiring high-performance switching diodes.
