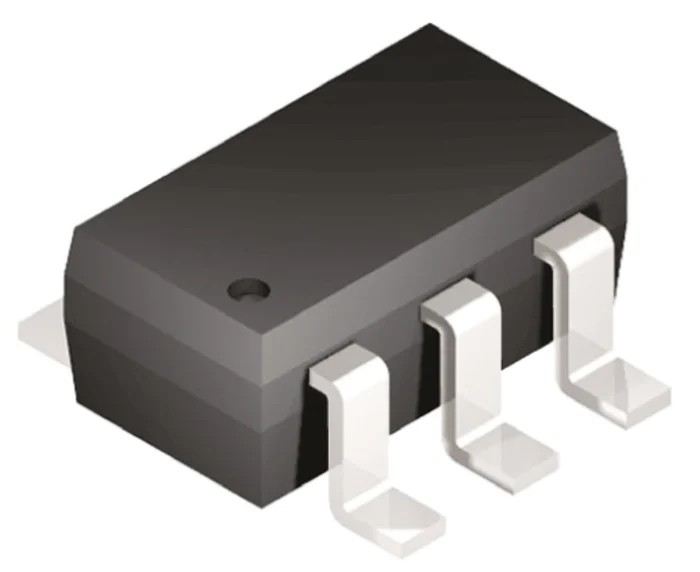

Texas Instruments Load Management Power Switch IC 6-Pin Surface Mount SOT-23 TPS22929DDBVT

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Load Management Power Switch IC 6-Pin Surface Mount SOT-23 TPS22929DDBVT

Name: Texas Instruments Load Management Power Switch IC 6-Pin Surface Mount SOT-23 TPS22929DDBVT
Brand: Texas Instruments
SKU: 375553
Price: 20.22 USD
Availability: InStock



Category Power Switch ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.3mm
Length	3.05mm
Model	TPS22929DDBVT
Width	1.75mm
Mount Type	Surface
Power Rating	463mW
Maximum Operating Temperature	85°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Operating Current	1.8A
Number of outputs	1
Standards/Approvals	RoHS
Pin Count	6
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.4V
Switch On Resistance RdsOn	200mΩ

Key Features

Provides integrated load management functionality for efficient power control.
Features a low switch on resistance (RdsOn) of 200mΩ for minimal power loss.
Supports 1 output with a maximum operating current of 1.8A.
Operates within supply voltages from 1.4V to 5.5V.
Compact SOT-23 package with dimensions 3.05mm (L) x 1.75mm (W) x 1.3mm (H).
Surface mount type suitable for automated PCB assembly.
Temperature operating range from -40°C to 85°C ensuring wide industrial applicability.
Complies with RoHS environmental standards.

Product Description

Texas Instruments TPS22929DDBVT Load Management Power Switch IC is an integrated electronic relay designed to effectively manage power rails by turning power on and off. This load switch IC is housed in a 6-pin Surface Mount SOT-23 package that makes it ideal for compact electronic designs and automated manufacturing processes.

The device features a low switch on resistance (RdsOn) of 200mΩ which reduces power loss, and supports a maximum continuous operating current of 1.8A, making it suitable for various power management tasks within electronic systems. The supply voltage range from 1.4V to 5.5V allows flexibility in use across multiple low-voltage power rails.

Dimensionally, the TPS22929DDBVT measures 3.05mm in length, 1.75mm in width, and 1.3mm in height, making it compact for space-constrained PCB layouts. It operates reliably within a temperature range from -40°C to 85°C, ensuring robustness in diverse industrial, laboratory, manufacturing, and commercial environments.

Compliant with RoHS standards, this component meets environmental regulations, promoting sustainable manufacturing. Not designed for automotive use, this IC fits well in power management applications where precision load switching is required.

Provides integrated load management functionality for efficient power control. Features low on-resistance for minimal power dissipation. Supports a single power output with high current capability. Wide operating supply voltage range ensures versatility.

Compact SOT-23 package enables space-saving PCB designs. Surface mount technology supports automated assembly. Wide temperature range suitable for industrial and commercial applications. RoHS compliant for environmentally responsible design.

Not suitable for automotive standard applications. Applied in electronic power management and switching circuits. Explore the comprehensive range of Power Switch ICs for enhanced electronic device design and control with EnvMart.
