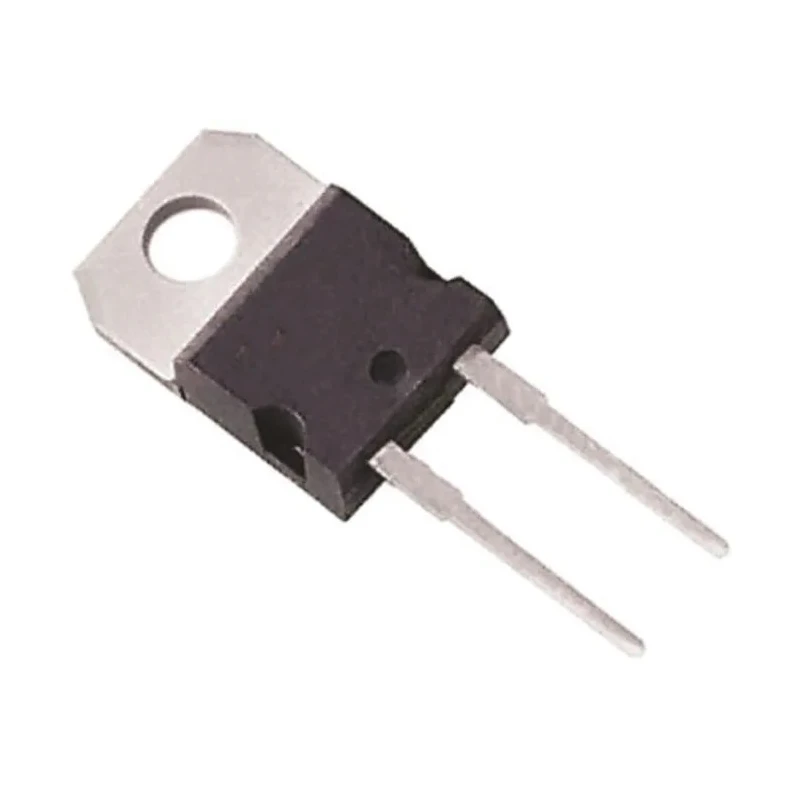

STMicroelectronics High Voltage 1 kV 30 A Diode 2-Pin TO-220AC STTH3010D

STMicroelectronics STTH3010D is a high voltage single diode designed for efficient rectification in various electronic circuits. Rated for up to 1 kV peak reverse voltage and 30 A maximum continuous forward current, this diode offers robust performance in demanding applications.

Its through-hole TO-220AC package facilitates easy mounting on printed circuit boards, maintaining excellent thermal conduction for reliable operation up to 175°C. The diode’s peak surge current capacity of 180 A ensures it can handle transient loads without damage, making it suitable for power supply rectifiers and industrial applications.

With a low maximum forward voltage drop of 2 V and a fast peak reverse recovery time of 100 ns, the STTH3010D minimizes power loss and switching noise. The broad operating temperature range from -65°C to 175°C enhances its versatility in harsh environments.

This diode complies with RoHS standards, underscoring its environmental safety aspects. Its compact form factor with 15.75 mm height, 10.4 mm length, 4.6 mm width, and 3.55 mm diameter pin dimensions makes it ideal for space-constrained designs.

Designed for through-hole mount applications. Capable of handling peak surge currents up to 180 A. Features a maximum forward voltage of 2 V. Operates reliably within a temperature range of -65°C to 175°C. Peak reverse recovery time of 100 ns ensures high-speed switching.

Compact package dimensions support space-efficient layouts. RoHS compliant ensuring environmental safety.

This diode is widely used in industrial electronics, power supply units, and other high voltage rectification systems where reliability and efficiency are critical. Its durable construction and high electrical ratings make it suitable for manufacturing, laboratory testing, and heavy-duty electronic applications.
