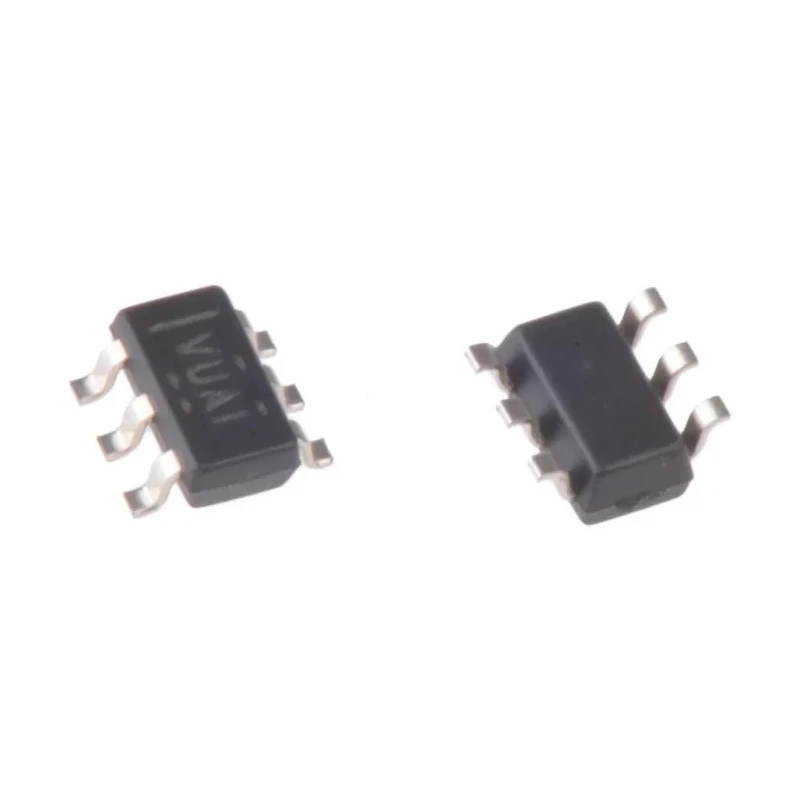

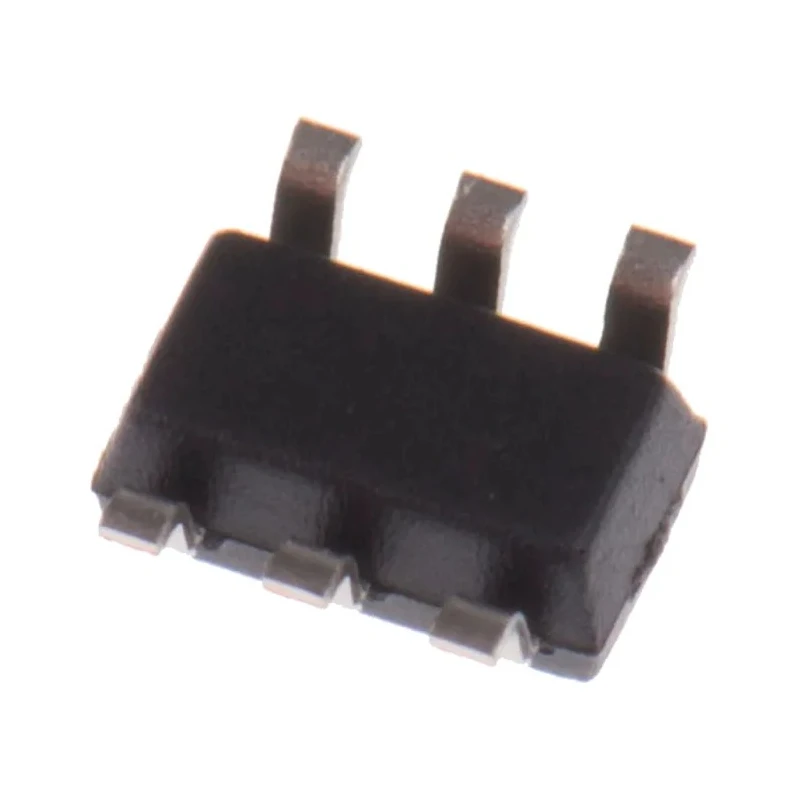

Texas Instruments Boost Converter Surface Mount 5.5V Output Voltage 400mA Output Current TLV61220DBVR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Efficiency | 95% |
| Length | 3.05mm |
| Model | TLV61220DBVR |
| Depth | 1.45mm |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TLV61220 |
| Output Current | 400mA |
| Package Type | SOT-23 |
| Load Regulation | 0.5 % |
| Minimum Operating Temperature | 85°C |
| Number of outputs | 1 |
| Ripple and Noise | 200mA |
| Maximum Input Voltage | 5.5V |
| Line Regulation | 0.5 % |
| Standards/Approvals | ANSI, ESDA, REACH, JEDEC, RoHS |
| Minimum Input Voltage | 0.7V |
| Number of Pins | 6 |
| Output Voltage 1 | 5.5V |
Key Features
- Boost converter provides high efficiency of up to 95% ensuring low power loss.
- Compact SOT-23 package with 6 pins for efficient surface mounting.
- Output voltage regulated at 5.5 volts with load and line regulation of 0.5% each.
- Wide operating temperature range of -85°C to 85°C suitable for industrial applications.
- Features low ripple and noise of 200mA for stable power delivery.
- Minimum input voltage of 0.7V and maximum input voltage of 5.5V for flexible power sources.
- Meets industry standards and approvals including ANSI, ESDA, REACH, JEDEC, and RoHS.
- Series TLV61220 ensures compatibility with related converters in the line.
Product Description
Texas Instruments TLV61220DBVR is a high-efficiency boost converter designed for surface mount applications. It outputs a regulated 5.5V voltage with a maximum output current of 400mA, making it ideal for low-power DC/DC switching regulator needs. Packaged in the compact SOT-23 6-pin package, this converter fits easily into space-constrained electronic circuits.
With an efficiency rating of up to 95%, it minimizes power loss and heat generation, which is essential for battery-powered or energy-sensitive applications. It operates over a wide temperature range of -85°C to 85°C, ensuring reliable performance in harsh industrial, commercial, and consumer environments.
The converter features very low ripple and noise (200mA), providing a clean power output for sensitive electronic components. It supports input voltages from a low 0.7V up to a maximum of 5.5V, offering great flexibility for various input power sources including single-cell batteries and low-voltage power supplies.
Load and line regulation specifications at 0.5% ensure stable voltage under varying load conditions and input voltages. The TLV61220 series meets multiple industry standards such as ANSI, ESDA, REACH, JEDEC, and RoHS, underscoring its quality and compliance for professional use.
High efficiency of 95% for reduced energy loss. Compact 6-pin SOT-23 package for space-efficient PCB layout. Operating temperature from -85°C up to 85°C for harsh environments. Low ripple and noise output ensuring clean voltage supply.
Wide input voltage range from 0.7V to 5.5V. Precise load and line regulation at 0.5% ensuring voltage stability. Complies with ANSI, ESDA, REACH, JEDEC, and RoHS standards. Step-up (boost) DC/DC converter suitable for electronics and power management.
Small dimensions: 3.05mm length × 1.75mm width × 1.45mm depth. Suitable for industrial, laboratory, automotive, and consumer electronic designs.
This Boost Converter is excellent for electronic design engineers seeking compact, reliable voltage regulation solutions. It can be used in battery-powered devices, portable instruments, communication equipment, and various industrial applications where regulated voltage boost is needed.
Explore more Texas Instruments power management ICs on EnvMart to complement your design projects with high-quality and reliable components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this boost converter is regulated at 5.5 volts.
It has a maximum output current of 400mA.
This model provides high efficiency of up to 95%, ensuring low power loss.
The input voltage range is from a minimum of 0.7V to a maximum of 5.5V.
The dimensions are 3.05mm in length, 1.75mm in width, and 1.45mm in depth.
It operates over a wide temperature range of -85°C to 85°C.
This model is packaged in a compact SOT-23 6-pin package suitable for surface mounting.
The load and line regulation specifications are both 0.5%, ensuring stable voltage under varying conditions.
It meets multiple industry standards including ANSI, ESDA, REACH, JEDEC, and RoHS.
The ripple and noise output is specified at 200mA, providing stable power delivery.
This boost converter has one output.
It is suitable for industrial, laboratory, automotive, and consumer electronic designs requiring regulated voltage boost.
