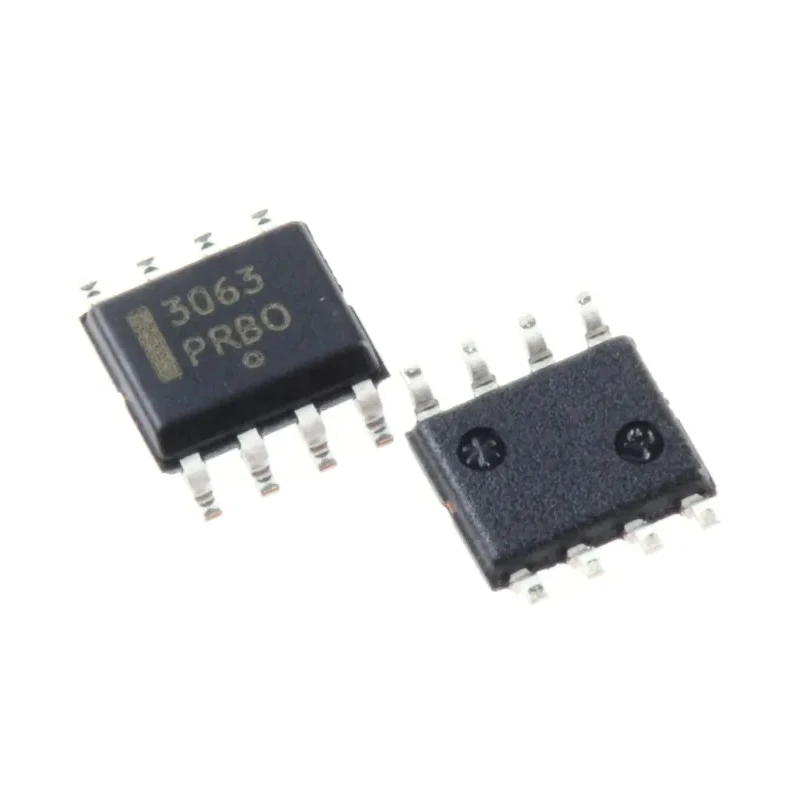

onsemi 5-Channel Boost, Buck, Buck Boost Converter 1.5A, 0mV, 40V 150kHz SOIC 8-Pin NCP3063DR2G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 5-Channel Boost, Buck, Buck Boost Converter 1.5A, 0mV, 40V 150kHz SOIC 8-Pin NCP3063DR2G

Name: onsemi 5-Channel Boost, Buck, Buck Boost Converter 1.5A, 0mV, 40V 150kHz SOIC 8-Pin NCP3063DR2G
Brand: onsemi
SKU: 370082
Price: 1.15 USD
Availability: InStock



Category Boost Converter Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.5mm
Length	5mm
Model	NCP3063DR2G
Width	4mm
Mount Type	Surface
Output type	Adjustable
Series	NCP3063
Output Current	1.5A
Maximum Operating Temperature	70°C
Package Type	SOIC
Load Regulation	1.6/5/9 mV
Minimum Operating Temperature	0°C
Polarity	Positive
Regulator Type	Boost, Buck
Switching Frequency	150kHz
Number of outputs	5
Maximum Input Voltage	40V
Output Voltage	0, 40mV
Line Regulation	1.5/2/8 mV
Standards/Approvals	RoHS
Minimum Input Voltage	0mV
Pin Count	8
Automotive Standard	AEC-Q100

Key Features

Supports boost, buck, and buck-boost regulator types for versatile applications.
Output voltage is adjustable from 0 to 40 mV.
Provides 1.5 A output current capacity suitable for various load demands.
Operates at a switching frequency of 150 kHz for efficient power conversion.
Comes in an SOIC 8-pin package with compact dimensions of 5mm length, 4mm width, and 1.5mm height.
Rated for operation in temperature range from 0°C to 70°C ensuring reliability under different conditions.
Complies with RoHS and automotive standard AEC-Q100 for quality assurance.
Positive polarity and adjustable output type enhance design flexibility.

Product Description

onsemi NCP3063DR2G is a high-performance 5-channel boost, buck, and buck-Boost Converter integrated circuit suitable for power management applications requiring efficient voltage regulation up to 40 V and output currents up to 1.5 A. It features a surface mount SOIC 8-pin package with a compact form factor (5 mm length, 4 mm width, 1.5 mm height) which fits space-constrained electronic assemblies.

The device supports adjustable output voltage and positive polarity operation, making it adaptable for custom power supply designs. Its switching frequency of 150 kHz ensures minimized switching losses and improved efficiency in DC/DC conversion processes.

This converter IC is designed for robust performance operating between 0°C to 70°C, suitable for automotive and industrial electronic systems requiring compliance with AEC-Q100 standards. Additionally, it meets RoHS requirements, ensuring environmentally responsible manufacturing.

The NCP3063 series provides a reliable solution for powering a variety of electronic components, including those in embedded systems, consumer electronics, and control circuitry. Its adjustable load and line regulation enable steady output under varying input conditions.

Supports boost, buck, and buck-boost modes for flexible power conversion. Adjustable output voltage range from 0 to 40 mV. High output current capacity of 1.5 A suitable for demanding applications. Compact SOIC 8-pin packaging facilitating easy circuit board integration.

RoHS compliant and automotive AEC-Q100 certified for quality and reliability. Operating temperature range 0°C to 70°C for broad environmental compatibility. Positive polarity output and adjustable output type allowed for diverse designs.

This power management IC is ideal for industrial, automotive, and commercial electronic applications, supporting designers in creating efficient, compact, and reliable DC/DC converter systems. Explore more products in the EnvMart catalog for your power management needs.
