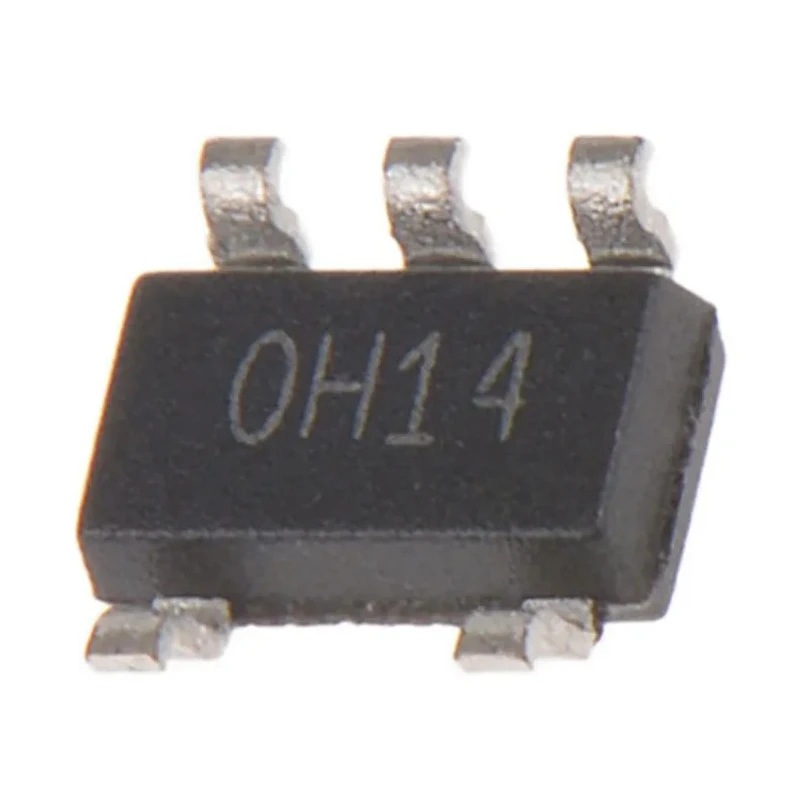

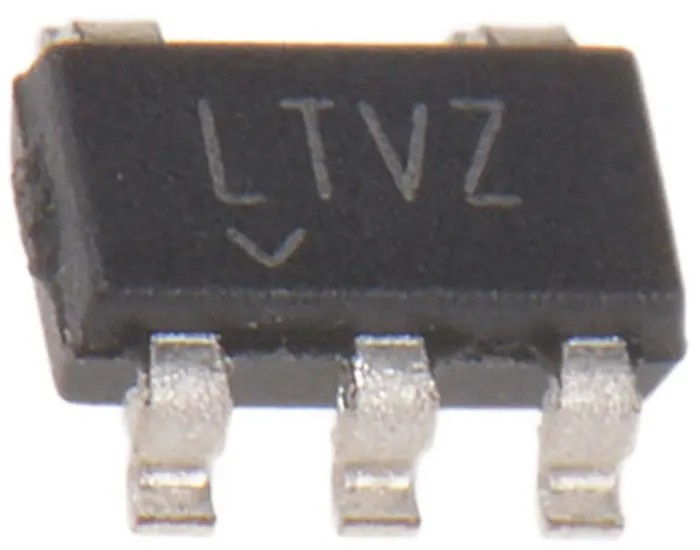

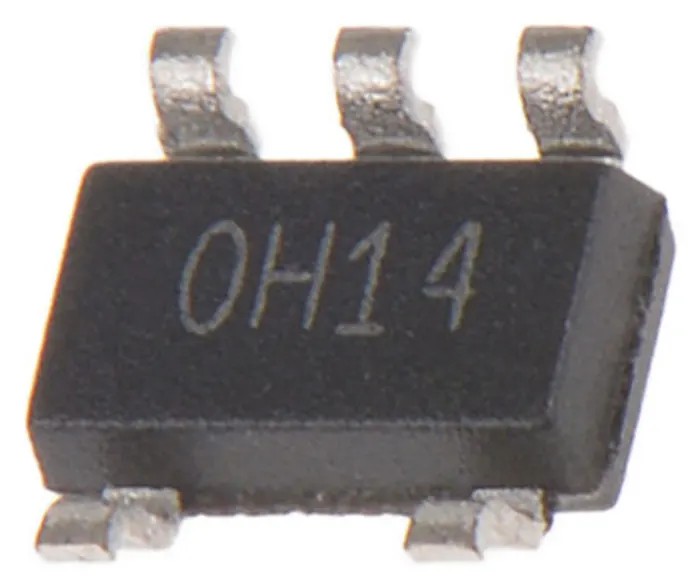

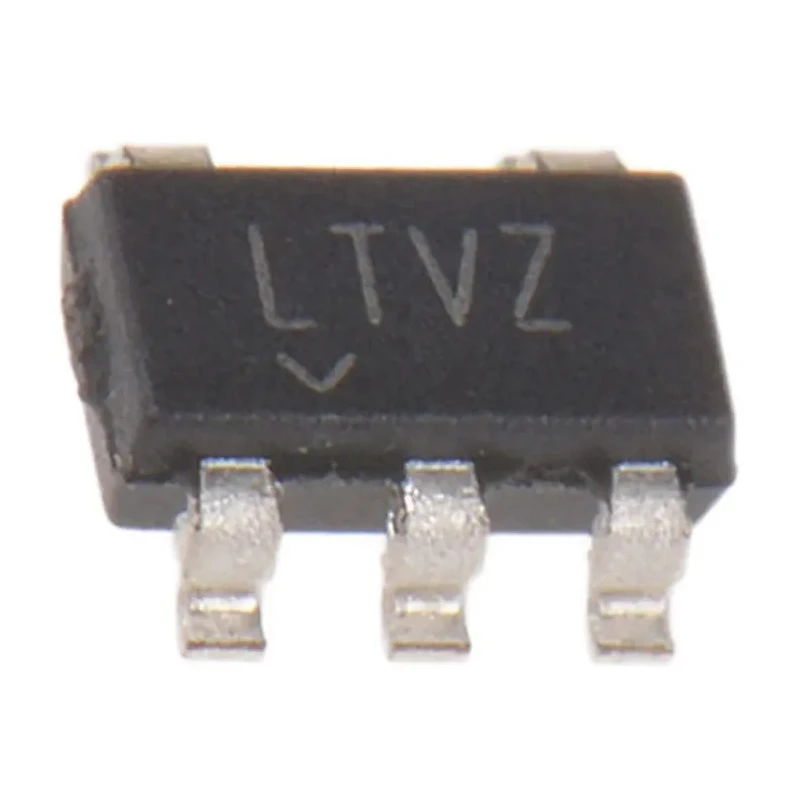

Monolithic Power Systems (MPS) Boost Converter Surface Mount 22V Output Voltage 300mA Output Current MP1541DJ-LF-P
Specifications
| Country of Origin | China |
|---|---|
| Brand | Monolithic Power Systems (MPS) |
| Power | 0.47W |
| Efficiency | 85% |
| Length | 3mm |
| Model | MP1541DJ-LF-P |
| Depth | 1mm |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | MP1541 |
| Output Current | 300mA |
| Maximum Operating Temperature | 85°C |
| Package Type | TSOT-23 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 6V |
| Standards/Approvals | RoHS, JEDEC MO19 |
| Minimum Input Voltage | 2.5V |
| Number of Pins | 5 |
| Output Voltage 1 | 22V |
Key Features
- Compact TSOT-23 package with dimensions 3mm x 1.7mm x 1mm ensures easy surface mounting.
- Operates over a wide temperature range from -40°C to 85°C suitable for harsh environments.
- High efficiency of 85% reduces power loss and improves energy savings.
- Supports input voltage range from 2.5V to 6V to accommodate varying power sources.
- 5-pin configuration enables straightforward PCB integration.
- Meets RoHS and JEDEC MO19 standards ensuring quality and environmental compliance.
- Designed for DC-DC step-up conversion applications in electronics and power supply circuits.
- Manufactured in China with new product condition for reliable performance.
Product Description
Monolithic Power Systems (MPS) presents the MP1541DJ-LF-P Boost Converter, a reliable and efficient DC-DC step-up switching regulator designed for surface mounting. It provides a stable 22V output voltage with a maximum output current of 300mA, making it ideal for powering low current electronic devices requiring voltage boost.
The compact TSOT-23 package has small dimensions of 3mm length, 1.7mm width, and 1mm depth enabling integration into space-constrained PCB layouts. The device delivers high efficiency up to 85%, which minimizes heat dissipation and improves battery life in portable systems.
Engineered to operate over a broad temperature range from -40°C to 85°C, this component ensures consistent performance in industrial, automotive, and consumer electronics applications exposed to varying conditions. Its input voltage range from 2.5V up to 6V supports diverse power supply sources.
The MP1541DJ-LF-P has a 5-pin design conforming to RoHS and JEDEC MO19 standards, assuring quality and environmental safety. It is particularly well-suited for use in DC-DC conversion circuits where a higher output voltage is needed from a lower voltage supply.
Applications include power management in consumer electronics, instrumentation, portable equipment, and embedded systems where space and efficiency are critical. The product is manufactured in China and supplied new, ensuring dependable operation for professional and industrial use.
Compact and durable TSOT-23 surface mount package. Wide operating temperature suitable for industrial applications. High energy efficiency reduces operating costs. RoHS and JEDEC compliant for quality assurance. Adaptable input voltage range supports multiple power sources.
Ideal for low current voltage boosting in electronic circuits. Supplied ready for PCB integration and manufacturing processes. Explore more advanced switching regulators and power converters in EnvMart’s comprehensive Electronics & Electricals category for reliable and efficient component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 22V with a maximum output current of 300mA.
The input voltage range supported by this unit is from 2.5V to 6V, accommodating various power sources.
The compact TSOT-23 package measures 3mm in length, 1.7mm in width, and 1mm in depth, making it suitable for space-constrained PCB layouts.
This boost converter operates with a high efficiency of up to 85%, which helps minimize power loss.
It can operate over a wide temperature range from -40°C to 85°C, suitable for various environmental conditions.
The MP1541DJ-LF-P features a 5-pin configuration, facilitating straightforward PCB integration.
This model meets RoHS and JEDEC MO19 standards, ensuring quality and environmental compliance.
It is designed for DC-DC step-up conversion applications, ideal for powering low current electronic devices in consumer electronics, instrumentation, and embedded systems.
The power rating of this boost converter is 0.47W, making it suitable for low power applications.
This product is manufactured in China, ensuring a reliable performance for various applications.
It supports surface mounting, which is advantageous for compact circuit designs.
This model is part of the MP1541 series of boost converters, designed for efficient voltage boosting applications.
