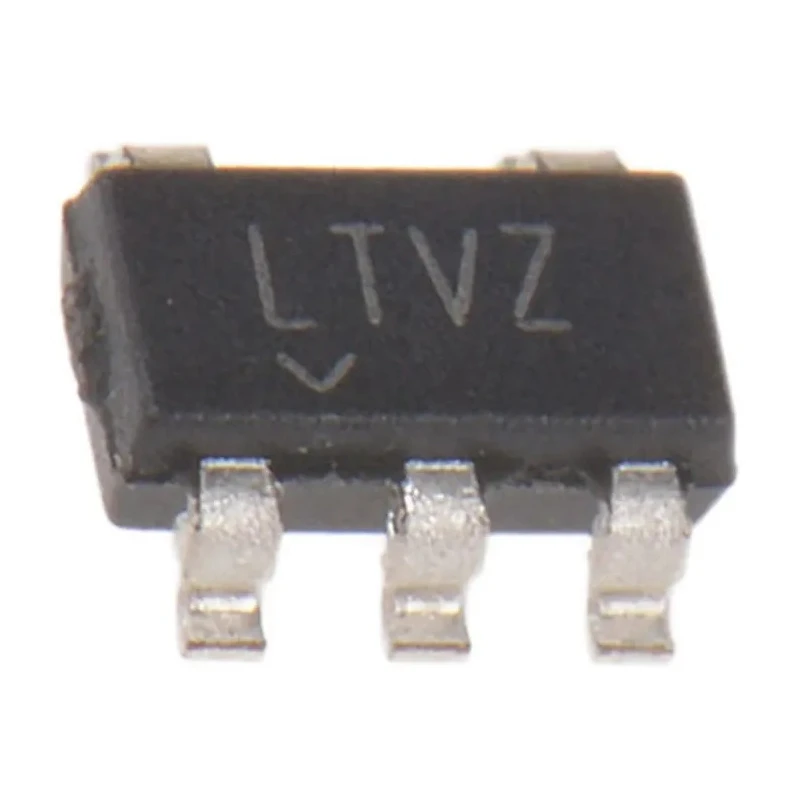

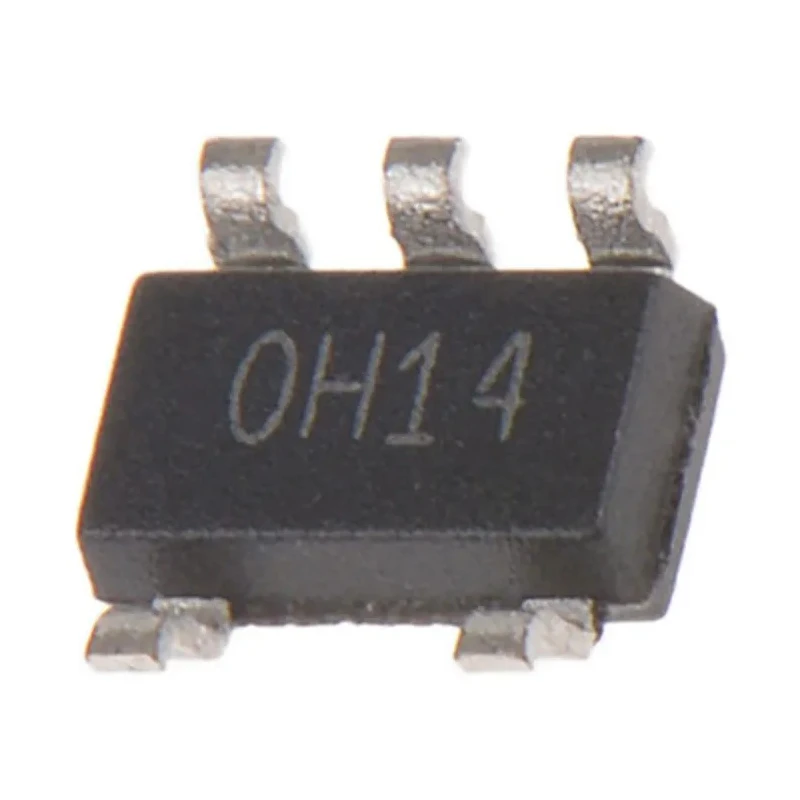

Monolithic Power Systems (MPS) Boost Converter 22V Output Voltage 300 mA Output Current Surface Mount TSOT-23 MP1541DJ-LF-P

Monolithic Power Systems (MPS) MP1541DJ-LF-P is a high-performance boost converter designed for DC-DC step-up voltage conversion applications. Featuring a surface mount TSOT-23 package with a compact footprint, this device outputs a voltage of 22V and delivers up to 300 mA output current with a power rating of approximately 0.47W.

The MP1541DJ-LF-P operates with high efficiency of 85%, helping to reduce power loss and thermal dissipation in electronic circuits. Its operating voltage range from 2.5V to 6V and an operational temperature window from -40°C to 85°C make it suitable for demanding industrial and electronic environments, including power management for embedded systems, communication devices, and portable electronics.

The single output configuration with 5 pins in TSOT-23 packaging ensures easy assembly and integration into PCBs where space constraints are critical. Compliant with RoHS and JEDEC MO19 standards, the device supports environmentally friendly manufacturing and reliability.

With precise dimensions of length 3mm, width 1.7mm, and depth 1mm, this boost converter is ideal for compact, efficient power supply designs, including battery powered and portable equipment requiring step-up voltage conversion.

This DC-DC step-up converter enables improved power efficiency in compact circuits. Surface mount TSOT-23 packaging simplifies PCB integration and saves board space. Wide input voltage operation from 2.5V to 6V supports diverse power sources.

Maximum output current of 300 mA suits moderate load applications. Operational temperature range of -40°C to 85°C ensures reliability in harsh environments. High efficiency of 85% optimizes power utilization and thermal management.

Complies with RoHS and JEDEC MO19 standards for industry compliance. Compact physical dimensions enable use in miniature electronic and industrial devices.

Its versatility and performance make the MP1541DJ-LF-P Boost Converter an excellent choice for power supply designers in industrial, manufacturing, communication, and electronic component sectors. Explore more power management solutions from Monolithic Power Systems on EnvMart to enhance your projects with reliable and efficient components.
