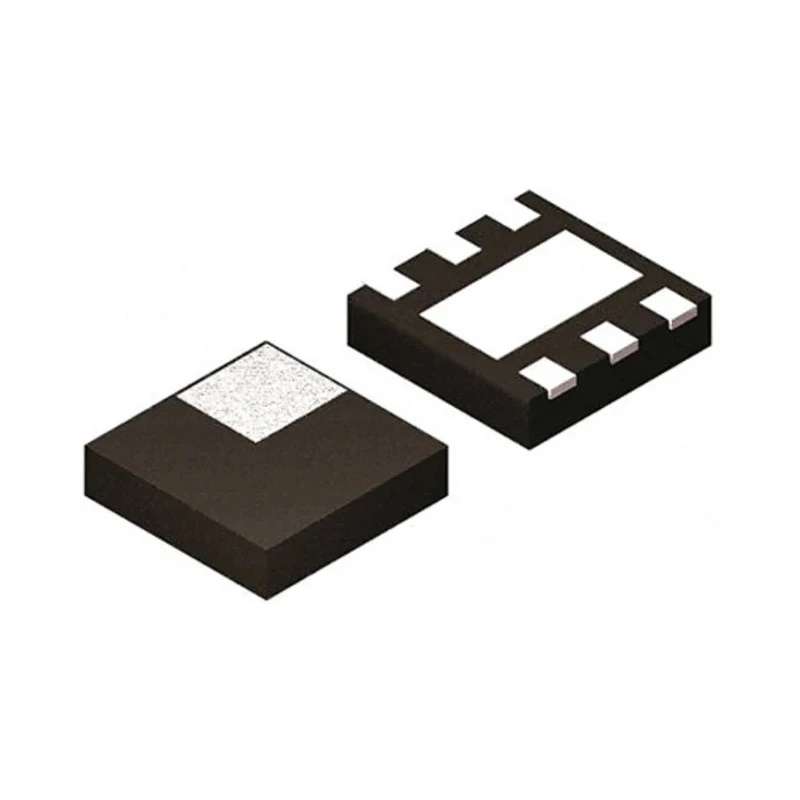

Texas Instruments Boost Converter, Surface Mount, 38V Output Voltage, 1.2A Output Current, 30W Power, TPS61170DRVT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Power | 30W |
| Efficiency | 93% |
| Length | 2mm |
| Model | TPS61170DRVT |
| Depth | 0.4mm |
| Width | 2mm |
| Mount Type | Surface |
| Series | TPS61170 |
| Output Current | 1.2A |
| Package Type | SON |
| Minimum Operating Temperature | 85°C |
| Number of outputs | 1 |
| Ripple and Noise | 1% |
| Maximum Input Voltage | 18V |
| Line Regulation | 0.06 %/V |
| Standards/Approvals | JEDEC, REACH, ESDA, ANSI, RoHS |
| Minimum Input Voltage | 3V |
| Number of Pins | 6 |
| Output Voltage 1 | 38V |
| Output Voltage 2 | 5.5V |
Key Features
- Features a surface mount package for compact integration.
- Delivers an output voltage of 38 volts with a maximum input voltage of 18 volts.
- Supports an output current of 1.2 amperes ensuring stable power supply.
- Offers a power output of 30 watts with 93% efficiency.
- Utilizes TPS61170 series technology with 6 pins and SON package type.
- Maintains low ripple and noise at 1% ensuring signal integrity.
- Operates within a temperature range up to 85°C for industrial reliability.
- Designed with line regulation of 0.06% per Volt for stable output.
Product Description
Texas Instruments TPS61170DRVT Boost Converter is a surface mount switching regulator designed for efficient DC voltage step-up applications delivering 38V output at 1.2A current and 30W power capacity. This device supports a maximum input voltage of 18V and minimum of 3V, featuring the TPS61170 series with integrated switch architecture for robust power management.
The converter features an innovative SON package type with dimensions of 2mm by 2mm by 0.4mm, making it ideal for compact PCB layouts in electronic components. It provides high efficiency of 93%, minimal ripple and noise at just 1%, and precise line regulation of 0.06 %/V, ensuring stable voltage supply in demanding industrial, laboratory, and commercial applications.
Operating reliably up to 85°C, this Boost Converter complies with JEDEC, REACH, ESDA, ANSI, and RoHS standards, reflecting its quality and environmental safety. It is suitable for power supplies, voltage conversion in electronics manufacturing, and embedded systems requiring step-up DC/DC conversion.
Surface mount package enables easy PCB integration. High efficiency of 93% reduces energy consumption. Low ripple and noise optimize signal quality. Stable line regulation supports voltage consistency. Compact dimensions suit space-constrained designs.
Wide operating temperature range supports industrial environments. Complies with multiple global standards for reliability. Discover more Texas Instruments power management solutions and voltage converters in the EnvMart electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TPS61170DRVT delivers an output voltage of 38 volts.
This model supports a maximum input voltage of 18 volts.
It has an output current rating of 1.2 amperes.
The power output capacity is 30 watts.
It offers an efficiency rating of 93%.
The line regulation is specified at 0.06% per volt.
The dimensions of this model are 2mm in length, 2mm in width, and 0.4mm in depth.
It maintains a low ripple and noise level of 1%.
This model operates reliably up to a temperature of 85°C.
It utilizes a SON package type for surface mounting.
This boost converter complies with JEDEC, REACH, ESDA, ANSI, and RoHS standards.
It provides one output.
