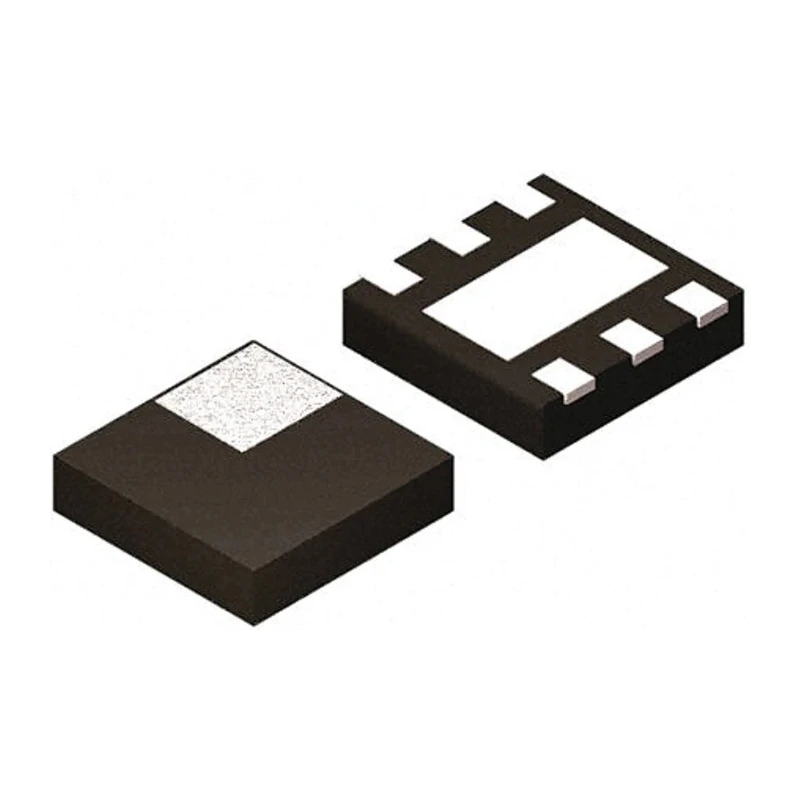

Texas Instruments Boost Converter Surface Mount 5 V Output Voltage 5.5 V Max Input Voltage 450 mA Output Current TPS61240DRVT

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Boost Converter Surface Mount 5 V Output Voltage 5.5 V Max Input Voltage 450 mA Output Current TPS61240DRVT

Name: Texas Instruments Boost Converter Surface Mount 5 V Output Voltage 5.5 V Max Input Voltage 450 mA Output Current TPS61240DRVT
Brand: Texas Instruments
SKU: 375672
Price: 20.22 USD
Availability: InStock



Category Boost Converter Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Voltage	Converters / Switching Regulators Texas Instruments Boost Converter, Surface, 5V
Brand	Texas Instruments
Power	150mW
Efficiency	90%
Length	2.1mm
Model	TPS61240DRVT
Depth	0.75mm
Gross Weight	9.7mg
Width	2.1mm
Mount Type	Surface
Series	TPS61240
Output Current	450mA
Package Type	SON
Minimum Operating Temperature	85°C
Number of outputs	1
Ripple and Noise	20mV
Maximum Input Voltage	5.5V
Minimum Input Voltage	2.3V
Number of Pins	6
Output Voltage 1	5V

Key Features

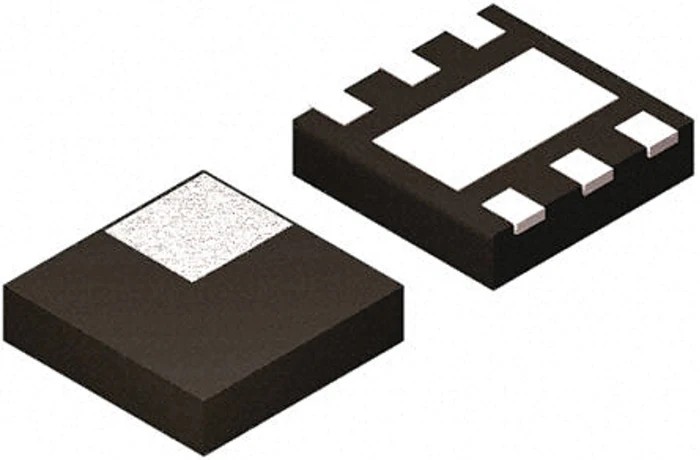

Compact surface mount SON package measuring 2.1 mm by 2.1 mm.
Input voltage range from 2.3 V to 5.5 V for flexible power sources.
Output voltage regulated at 5 V with 450 mA maximum output current.
High conversion efficiency of 90% to minimize energy loss.
Low output ripple and noise of 20 mV for stable power supply.
Operational temperature range from -85°C to +85°C for reliability.
6-pin device supporting easy surface mounting on PCBs.
Part of the TPS61240 series of DC/DC switching regulators.

Product Description

The Texas Instruments TPS61240DRVT is a high-efficiency boost converter designed for step-up DC/DC voltage regulation. It is supplied in a compact and low-profile SON surface mount package, measuring 2.1 mm by 2.1 mm with a depth of 0.75 mm, making it suitable for space-constrained electronic designs.

With an input voltage range of 2.3 V to a maximum of 5.5 V, this device efficiently converts lower voltages to a stable 5 V output voltage, supporting an output current of up to 450 mA. The device delivers a maximum output power of 150 mW with an efficiency rate of 90%, while maintaining low ripple and noise levels at 20 mV, ensuring stable performance in sensitive electronic circuits.

Designed for operation across a wide temperature range of -85°C to +85°C, the TPS61240DRVT suits industrial, automotive, and consumer electronics applications that require reliable power regulation in challenging environments. The 6-pin SON package facilitates surface mounting on printed circuit boards, contributing to improved manufacturing efficiency and compact product designs.

This boost converter belongs to the TPS61240 series from Texas Instruments, known for high integration and quality performance in switching voltage regulators. Typical applications include portable devices, battery-powered circuits, and embedded systems requiring voltage step-up conversion from single-cell lithium-ion or alkaline batteries.

Compact SON package for surface mount assembly. Wide input voltage range from 2.3 V to 5.5 V. Output voltage regulated at 5 V with 450 mA output current capability. High efficiency of 90% reduces power losses and heat generation.

Low output ripple of 20 mV ensures clean power delivery. Wide operating temperature range of -85°C to +85°C. 6-pin configuration for efficient PCB layout. Extremely lightweight at 9.7 mg for minimal impact on device weight.

This TPS61240DRVT Boost Converter provides an excellent solution for electronics engineers seeking a reliable, efficient, and compact DC/DC voltage step-up regulator. EnvMart offers convenient sourcing for this component as part of the comprehensive Texas Instruments product lineup. Browse our electronics and electricals categories for compatible parts and accessories.
