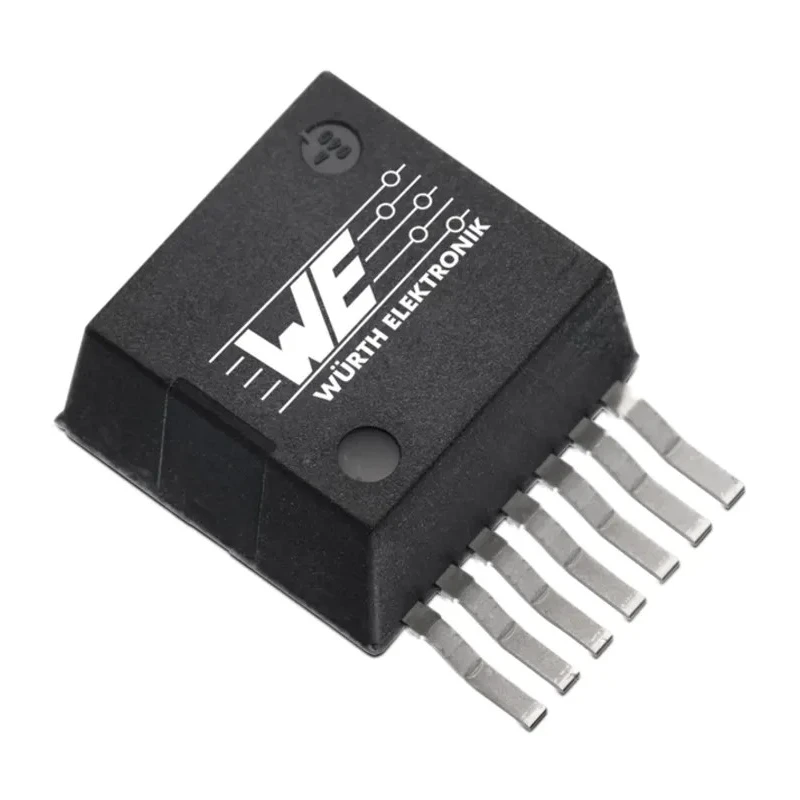

Wurth Elektronik 5-Channel DC/DC Power Supply Module Adjustable 6V 800mV 5A PFM 7-Pin 171050601
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.57mm |
| Length | 10.16mm |
| Width | 9.85mm |
| Mount Type | Surface |
| Output type | Adjustable |
| Series | MagI3C |
| Topology | Step Down |
| Maximum Operating Temperature | 125°C |
| Package Type | PFM |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Maximum Input Voltage | 36V |
| Protection | Thermal shut-down, inrush current, overvoltage and under-voltage |
| Maximum Switching Frequency | 914kHz |
| Maximum Output Current | 5A |
| Maximum Output Voltage | 6V |
| Minimum Input Voltage | 6V |
| Pin Count | 7 |
| Minimum Output Voltage | 800mV |
| 7 PIN PFM (TO-263) | (L) 9.85 mm, (W) 10.16 mm, (H) 4.57 mm |
Key Features
- Adjustable output voltage ranges from 800 mV to 6 V for precise voltage control.
- Designed for surface mount applications with a compact 7-pin PFM package.
- Operational input voltage between 6 V minimum and 36 V maximum supports versatile power sources.
- High switching frequency of up to 914 kHz enables efficient power conversion.
- Thermal shutdown and inrush current protection ensure module reliability and safety.
- Wide operating temperature range from -40°C to 125°C caters to demanding industrial conditions.
- Low noise design compliant with EN55022 class B EMI standards for electromagnetic compatibility.
- Peak efficiency rating between 90% and 97% maximizes power savings.
Product Description
Wurth Elektronik 171050601 is a high-performance 5-Channel DC/DC Power Supply Module featuring adjustable output voltages ranging from 800 mV to 6 V and capable of delivering up to 5 A output current. This module uses a step-down topology with a switching frequency of 914 kHz, optimized for efficient power regulation in industrial and commercial applications.
Designed with a compact PFM 7-pin surface mount package, measuring 10.16 mm in length, 9.85 mm in width, and 4.57 mm in height, the module fits into tight PCB layouts while providing stable power delivery. It operates reliably across a wide temperature range from -40°C up to 125°C, making it suitable for harsh environments.
The integrated protection features include thermal shutdown, inrush current protection, and under-voltage lockout, enhancing system safety and prolonging device life. Its low noise performance complies with EN55022 class B EMI standards, making the module ideal for applications sensitive to electromagnetic interference.
This power supply module is robust and versatile, suitable for point-of-load DC-DC conversion, industrial control systems, telecommunication equipment, and digital processing units including MCUs, MPUs, DSPs, and FPGAs.
Adjustable output voltage from 800 mV to 6 V for flexible application demands. High-efficiency switching topology with peak efficiency between 90% to 97%. 5 output channels delivering up to 5 A current each. Wide input voltage range from 6 V to 36 V supports diverse input sources.
Thermal shutdown and inrush current protection for secure operation. Compact surface mount PFM package designed for space-saving designs. Wide operating temperature from -40°C to 125°C for industrial reliability. Compliance with EN55022 class B EMI standards for low noise.
Manufactured in Malaysia with high-quality standards.
This Wurth Elektronik power supply module is an excellent choice for engineers seeking reliable step-down DC/DC converters for industrial, telecommunications, manufacturing, and embedded processing applications. Discover more power management ICs and related products on EnvMart to suit your project needs.
Explore more products in our Power Modules category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this module can be adjusted from 800 mV to 6 V, allowing for precise voltage control.
This power supply module features 5 output channels, each capable of delivering up to 5 A of current.
The maximum input voltage that this module can handle is 36 V.
The module measures 10.16 mm in length, 9.85 mm in width, and 4.57 mm in height.
This model is designed for surface mounting, making it suitable for compact PCB layouts.
The minimum output voltage that can be set on this module is 800 mV.
The low noise design of this power supply module complies with EN55022 class B EMI standards for electromagnetic compatibility.
This model is manufactured in Malaysia, adhering to high-quality standards.
